HPE JH295A

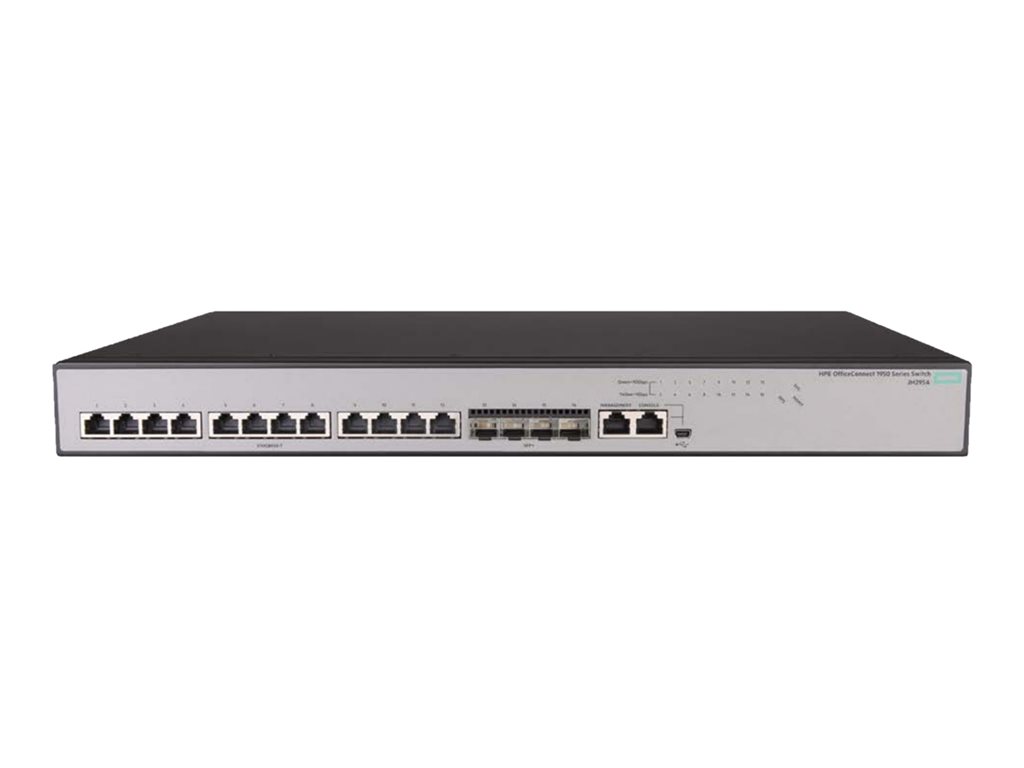

HPE OFFICECONNECT 1950 12XGT 4SFP+ SWITCH
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HPE OFFICECONNECT 1950 12XGT 4SFP+ SWITCH
| Cables Included: | 1 x power cable - 1 m |
|---|---|
| Capacity: | IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 256 |
| Compliant Standards: | CISPR 22 Class A, EN55022, EN 61000-3-3, EN55024, UL 60950, CISPR 22, ICES-003 Class A, IEC 60950-1, EN 60950-1, ISO 7779, EN 61000-3-2:2006+A1:2009+A2:2009, VCCI Class A, EN 61000-3-2:2000, EN 62479:2010, GB 4943.1, EN 300 386 V1.6.1, EN 61000-3-3:2013,, IEEE 802.3, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Depth: | 16 cm |
| Device Type: | Switch - 12 ports |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Features: | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Quality of Service (QoS), 2MB packet buffer, DiffServ Code Point (DSCP) support |
| Flash Memory: | 512 MB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
| Interfaces: | 12 x 10GBase-T RJ-45 ¦ 4 x Gigabit / 10Gbit LANSFP+ ¦ 1 x console RJ-45 ¦ 1 x management RJ-45 |
| Jumbo Frame Support: | 10KB |
| MAC Address Table Size: | 16384 entries |
| MTBF: | 81.8 years |
| Manufacturer: | HPE Aruba |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Routing/switching capacity: 320 Gbps ¦ Throughput (64-byte packet size): 238 Mpps ¦ Latency (100 Mbps): 5 µs ¦ Latency (1000Base-T): 5 µs |
| Ports: | 12 x 10GBase-T + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Consumption Operational: | 75 Watt |
| Power Device: | Internal power supply |
| Power Provided: | 800 Watt |
| Processor: | 1 Cortex-A9: 1.25 GHz |
| RAM: | 1 GB SDRAM |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP, RMON, HTTPS, CLI |
| Software Included: | HP Web browser, HP Intelligent Management Center |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 3.66 kg |
| Width: | 44 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| EU Data-Act-Url: | https://www.hpe.com/us/en/living-progress/governance/policies.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
