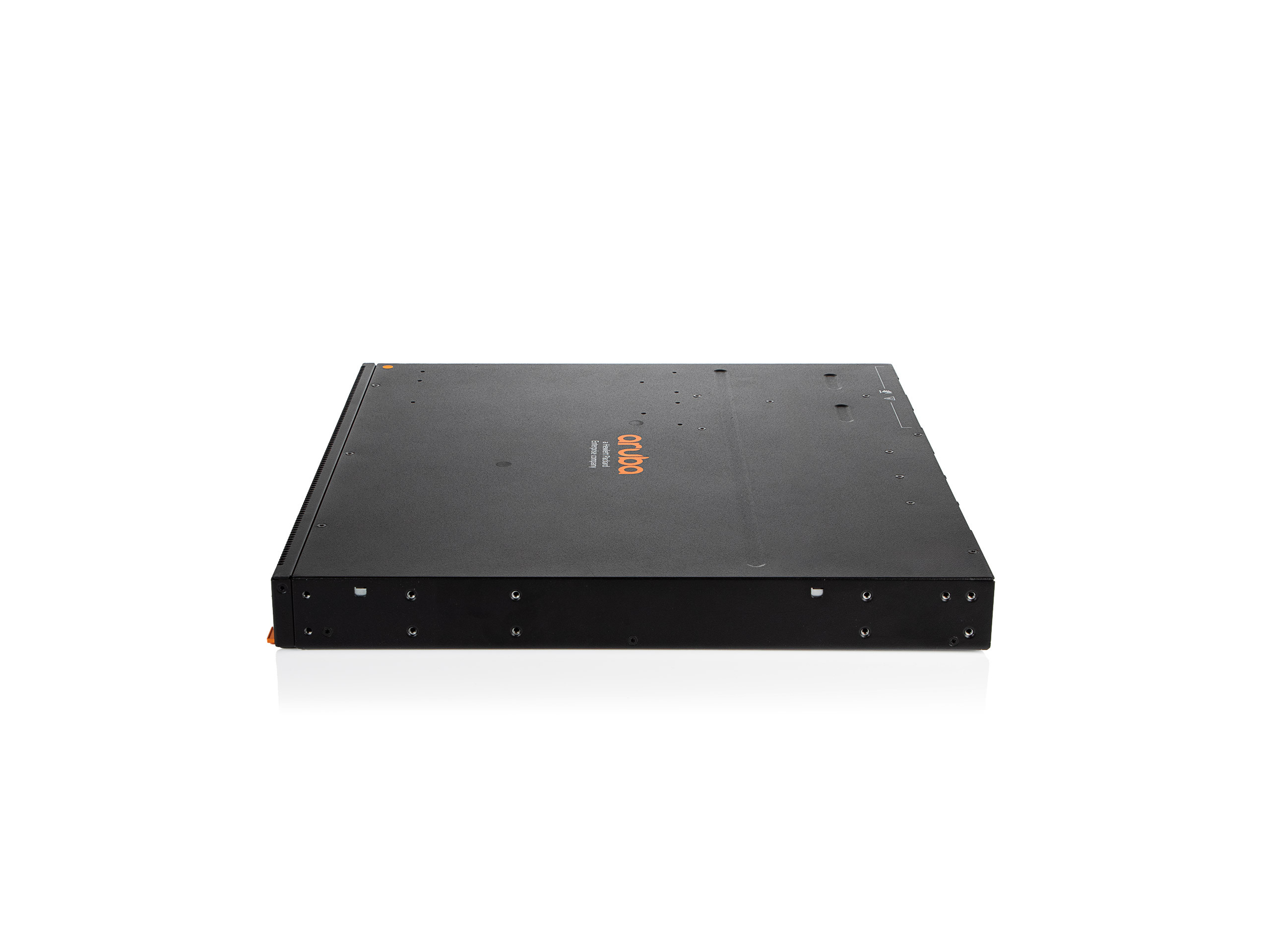

HPE JL711A
Aruba 8360-24XF2C Pwr2Prt3F2PS Bdl.
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Aruba 8360-24XF2C Pwr2Prt3F2PS Bdl.
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Virtual interfaces (VLANs) per port for 802.1q: 4094 |
| Compliant Standards: | EMC, ICES-003 Class A, RoHS, Laser Class 1, UL 60950-1, ISO 7779, VCCI Class A, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 61000-3-3:2013, EMC 2014/30/EU, ISO 9296, FCC CFR47 Part 15 A, CNS 13438 Class A, Directive 2014/35/EU, EN 55032:2015, CISPR |
| Depth: | 40.64 cm |
| Device Type: | Switch - 24 ports - L3 - Managed |
| Enclosure Type: | Back to front airflow rack-mountable 1U |
| Encryption Algorithm: | FIPS 140-2 |
| Features: | Flow control, IP-routing, DHCP support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) su |
| Flash Memory: | 32 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 15 - 95% (non-condensing) |
| Humidity Range Storage: | 15 - 95% (non-condensing) |
| Included Accessories: | 3 fan trays |
| Installed Qty: | 2 |
| Interfaces: | 12 x 100Gbit/40Gbit LAN ¦ 1 x serial (console) ¦ 1 x USB-C console ¦ 1 x LAN RJ-45 ¦ 2 x USB |
| Jumbo Frame Support: | 9KB |
| MTBF: | 375668 hours |
| Manufacturer: | Aruba HPE |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Performance: | Switching capacity: 880 Gbps ¦ Latency: 1 µs ¦ Throughput: 2 Mbps |
| Ports: | 24 x 1 Gigabit SFP/ 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+ / QSFP28 |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 550 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | N+1 |
| Processor: | 1: 1.8 GHz |
| RAM: | 16 GB |
| Remote Management Protocol: | SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP |
| Routing Protocol: | OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, MSTP, RSTP, STP |
| Subtype: | 100 Gigabit Ethernet |
| TAA Compliant: | Yes |
| Version: | original |
| Voltage Required: | AC 120/230 V (47 - 63 Hz) |
| Weight: | 8.07 kg |
| Width: | 44.25 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
