HPE JL814A

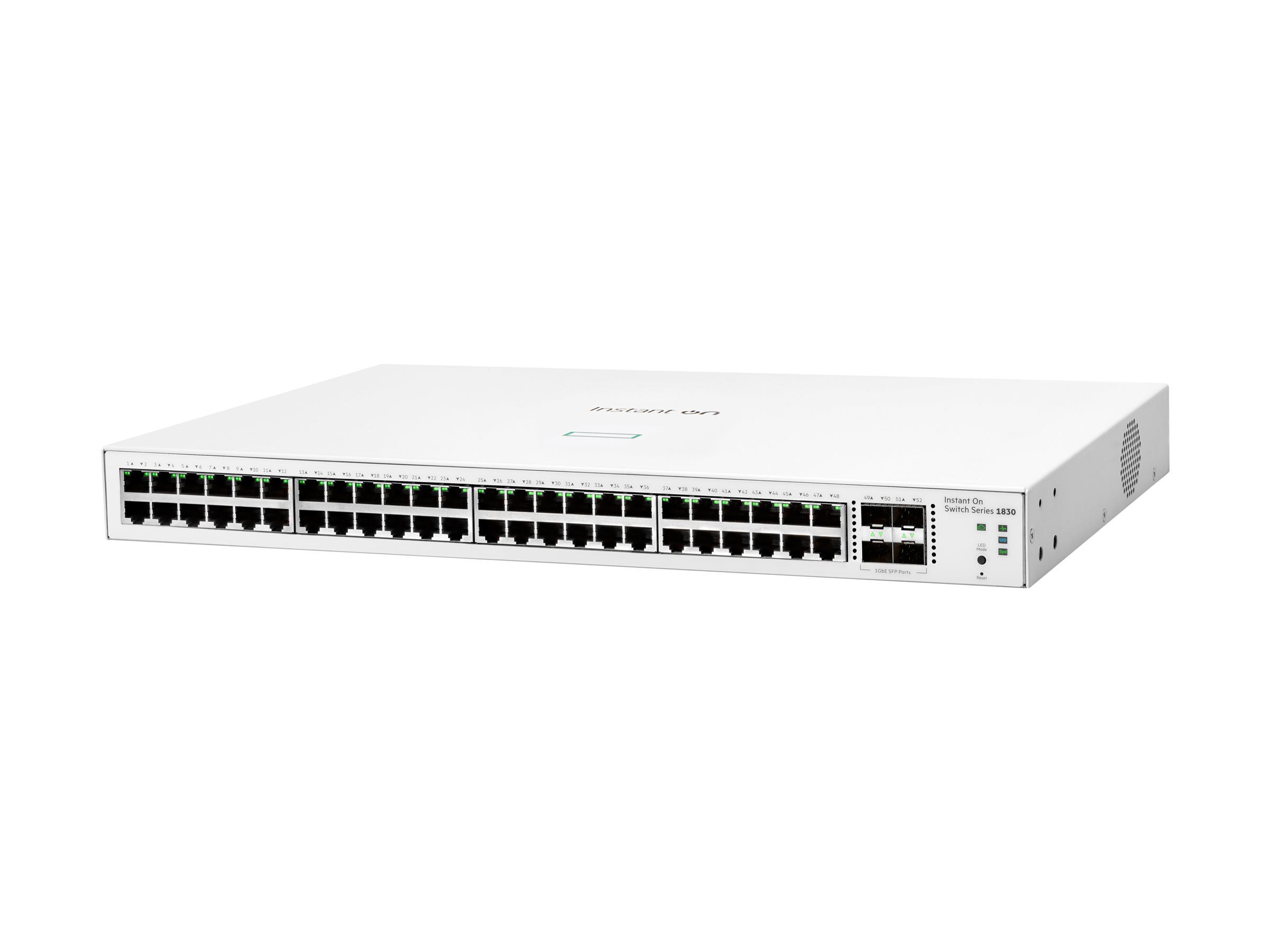

Aruba Instant On 1830 48G 4SFP Switch
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Aruba Instant On 1830 48G 4SFP Switch
| Compliant Standards: | IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
|---|---|
| Depth: | 25.3 cm |
| Device Type: | Switch - 48 ports - smart |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Encryption Algorithm: | SSL |
| Features: | Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality |
| Flash Memory: | 256 MB |
| Height: | 4.39 cm |
| Humidity Range Operating: | 15 - 95% (non-condensing) |
| Humidity Range Storage: | 15 - 95% (non-condensing) |
| Interfaces: | 48 x 1000Base-T RJ-45 ¦ 4 x Gigabit LANSFP |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 16000 entries |
| MTBF: | 144.4 years |
| Manufacturer: | Aruba HPE |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 77.37 Mpps ¦ Switching capacity: 104 Gbps |
| Ports: | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Power Consumption Operational: | 40.2 Watt |
| Power Device: | Internal power supply |
| Processor: | 1 x ARM: 800 MHz |
| RAM: | 512 MB SDRAM |
| Remote Management Protocol: | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Routing Protocol: | IGMPv2, IGMP |
| Status Indicators: | Port status, port duplex mode, link/activity, speed |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 3.54 kg |
| Width: | 44.3 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| EU Data-Act-Url: | https://www.hpe.com/us/en/living-progress/governance/policies.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Aruba Instant On 1830 48G 4SFP Switch
| Compliant Standards: | IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
|---|---|
| Depth: | 25.3 cm |
| Device Type: | Switch - 48 ports - smart |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Encryption Algorithm: | SSL |
| Features: | Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality |
| Flash Memory: | 256 MB |
| Height: | 4.39 cm |
| Humidity Range Operating: | 15 - 95% (non-condensing) |
| Humidity Range Storage: | 15 - 95% (non-condensing) |
| Interfaces: | 48 x 1000Base-T RJ-45 ¦ 4 x Gigabit LANSFP |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 16000 entries |
| MTBF: | 144.4 years |
| Manufacturer: | Aruba HPE |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 77.37 Mpps ¦ Switching capacity: 104 Gbps |
| Ports: | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Power Consumption Operational: | 40.2 Watt |
| Power Device: | Internal power supply |
| Processor: | 1 x ARM: 800 MHz |
| RAM: | 512 MB SDRAM |
| Remote Management Protocol: | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Routing Protocol: | IGMPv2, IGMP |
| Status Indicators: | Port status, port duplex mode, link/activity, speed |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 3.54 kg |
| Width: | 44.3 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| EU Data-Act-Url: | https://www.hpe.com/us/en/living-progress/governance/policies.html |
