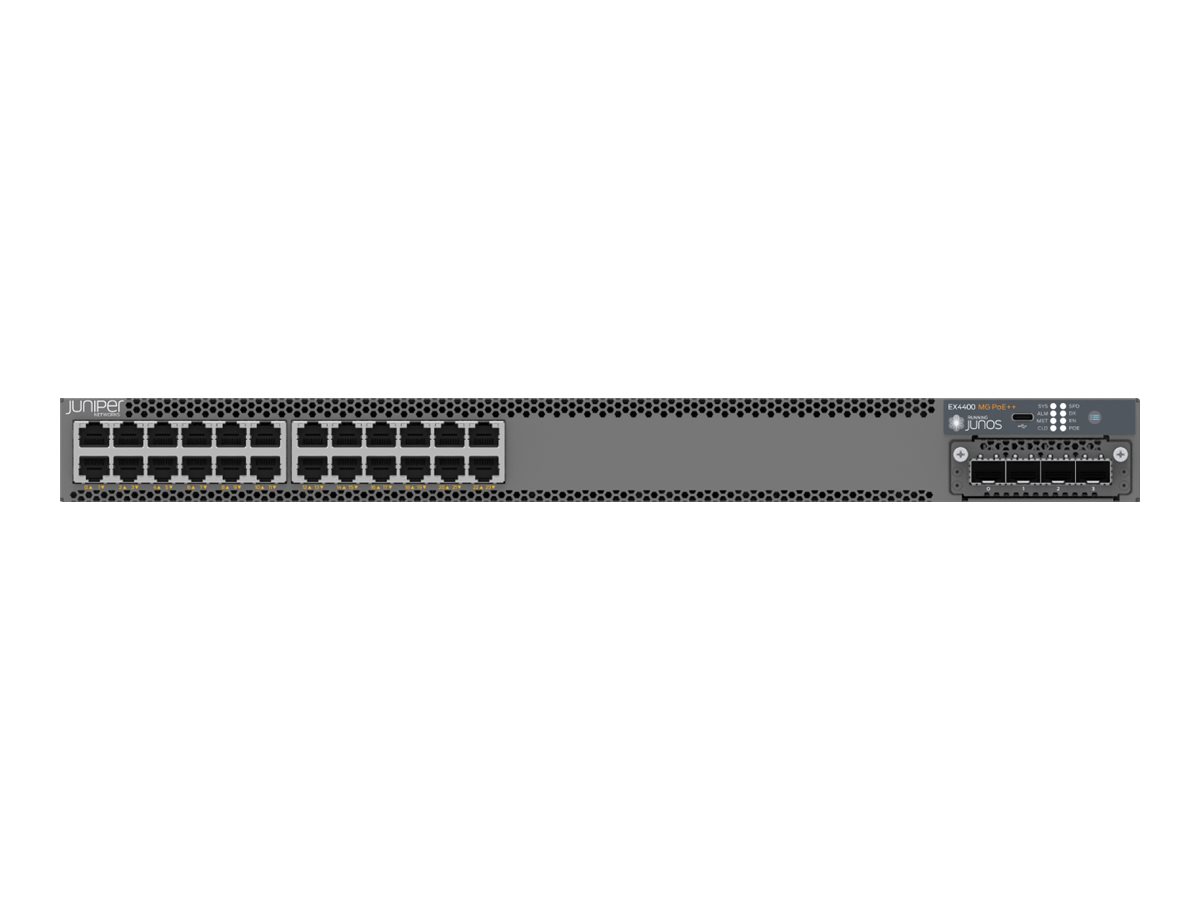

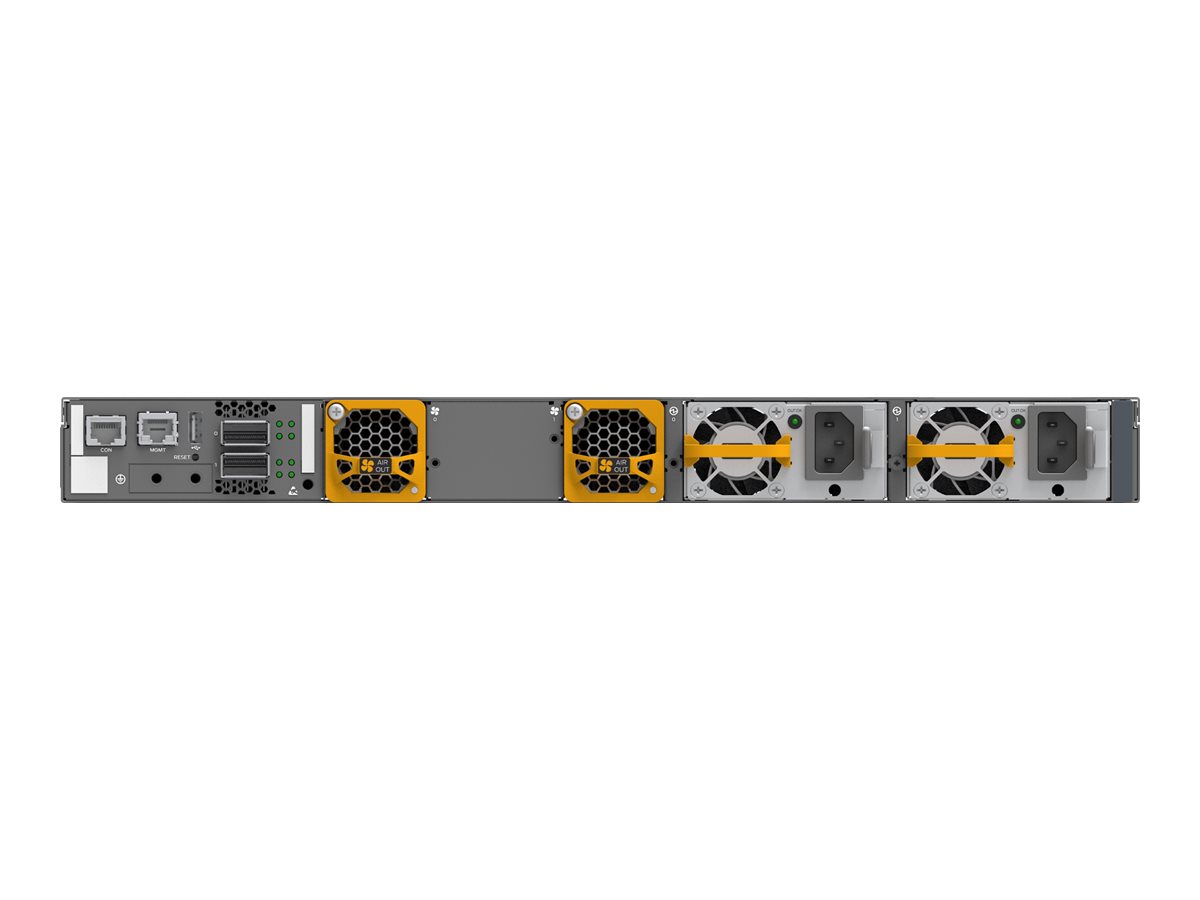

Juniper EX4400-24MP
24x1/2.5/5/10G Multigigabit switch with 2x100G uplink/stacking ports. 90W POE. MACsec AES256. Optional extension module 4x10G or 4x25G
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
24x1/2.5/5/10G Multigigabit switch with 2x100G uplink/stacking ports. 90W POE. MACsec AES256. Optional extension module 4x10G or 4x25G
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
|---|---|
| Built-in Devices: | Led panel |
| Capacity: | VSTP instances: 510 ¦ MST instances: 64 ¦ Maximum member ports per LAG: 16 ¦ ARP entries: 24000 ¦ IPv4 routes (Unicast): 130048 ¦ IPv4 hosts (Unicast): 81000 ¦ IPv4 routes (Multicast): 40000 ¦ IPv6 neighbor discovery: 12000 ¦ IPv6 routes (Unicast): 87000 |
| Compliant Standards: | VCCI, CISPR 24, ICES-003, EN55024, FCC CFR47 Part 15, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, RoHS, BSMI CNS 13438, IEC 60825-1, IEC 60825-2, EN 300 386 V1.6.1, KN32, KN35, IEC 62368-1, TCVN 7189, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 62368-1, CAN/C |
| Depth: | 43 cm |
| Device Type: | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Encryption Algorithm: | MD5, TLS, PEAP, TTLS, 256-bit AES |
| Expansion Slots: | 1 (total) / 0 (free) x Expansion Slot |
| Features: | Flow control, firewall protection, auto-sensing per device, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High |
| Flash Memory: | 20 GB |
| Height: | 4.39 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Humidity Range Storage: | 0 - 90% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 24 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W ¦ 2 x 100Gbit LAN QSFP28 uplink/stacking ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial RJ-45 management ¦ 4 x 100/1000/2.5G/5G/10G |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 112000 entries |
| Manufacturer: | Juniper HPE |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity (64-byte packet size, unidirectional): 324 Gbps ¦ Switching capacity (64-byte packet size, bidirectional): 648 Gbps |
| PoE Budget: | 788 W |
| Ports: | 24 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 2 x 100 Gigabit QSFP28 |
| Power Device: | Internal power supply - hot-plug |
| Power Over Ethernet (PoE): | PoE++ |
| Power Provided: | 550 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Processor: | 1 x Intel: 2.2 GHz |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, MSTP, RSTP, STP |
| Software Included: | Junos OS |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-120/200-240 V |
| Width: | 44.17 cm |
| GPSR - economic actor: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
|---|---|
| GPSR - product manufacturer: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| GPSR - EU responsible person: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
