| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Compliant Standards: | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, UL, TUV, EN 60950, VCCI Class A ITE, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class A, RoHS, FCC Part 15 A |
| Depth: | 40.6 cm |

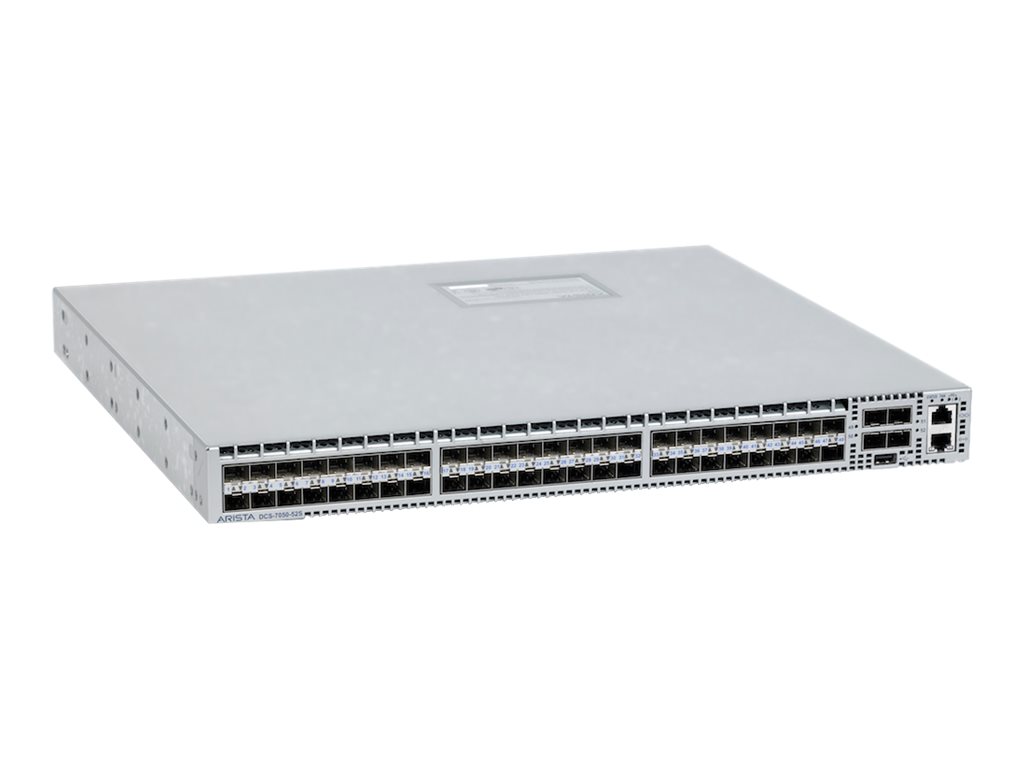

| Device Type: | Switch - 52 ports - L3 - Managed |
| Enclosure Type: | Back to front airflow rack-mountable 1U |
| Features: | Flow control, Layer 3 switching, Layer 2 switching, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, IPv4 su |
| Flash Memory: | 2 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Installed Qty: | 2 |
| Interfaces: | 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x USB Type A ¦ 24 x 10Gb Ethernet - SFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 128K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 1.04 Tbps |
| Ports: | 52 x SFP+ |
| Power Consumption Operational: | 103 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP 2, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, BGP, IGMPv2, IGMP, VRRP, PIM-SM, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 7.7 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Compliant Standards: | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, UL, TUV, EN 60950, VCCI Class A ITE, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class A, RoHS, FCC Part 15 A |
| Depth: | 40.6 cm |
| Device Type: | Switch - 52 ports - L3 - Managed |
| Enclosure Type: | Back to front airflow rack-mountable 1U |
| Features: | Flow control, Layer 3 switching, Layer 2 switching, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, IPv4 su |
| Flash Memory: | 2 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Installed Qty: | 2 |
| Interfaces: | 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x USB Type A ¦ 24 x 10Gb Ethernet - SFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 128K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 1.04 Tbps |
| Ports: | 52 x SFP+ |
| Power Consumption Operational: | 103 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP 2, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, BGP, IGMPv2, IGMP, VRRP, PIM-SM, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 7.7 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
