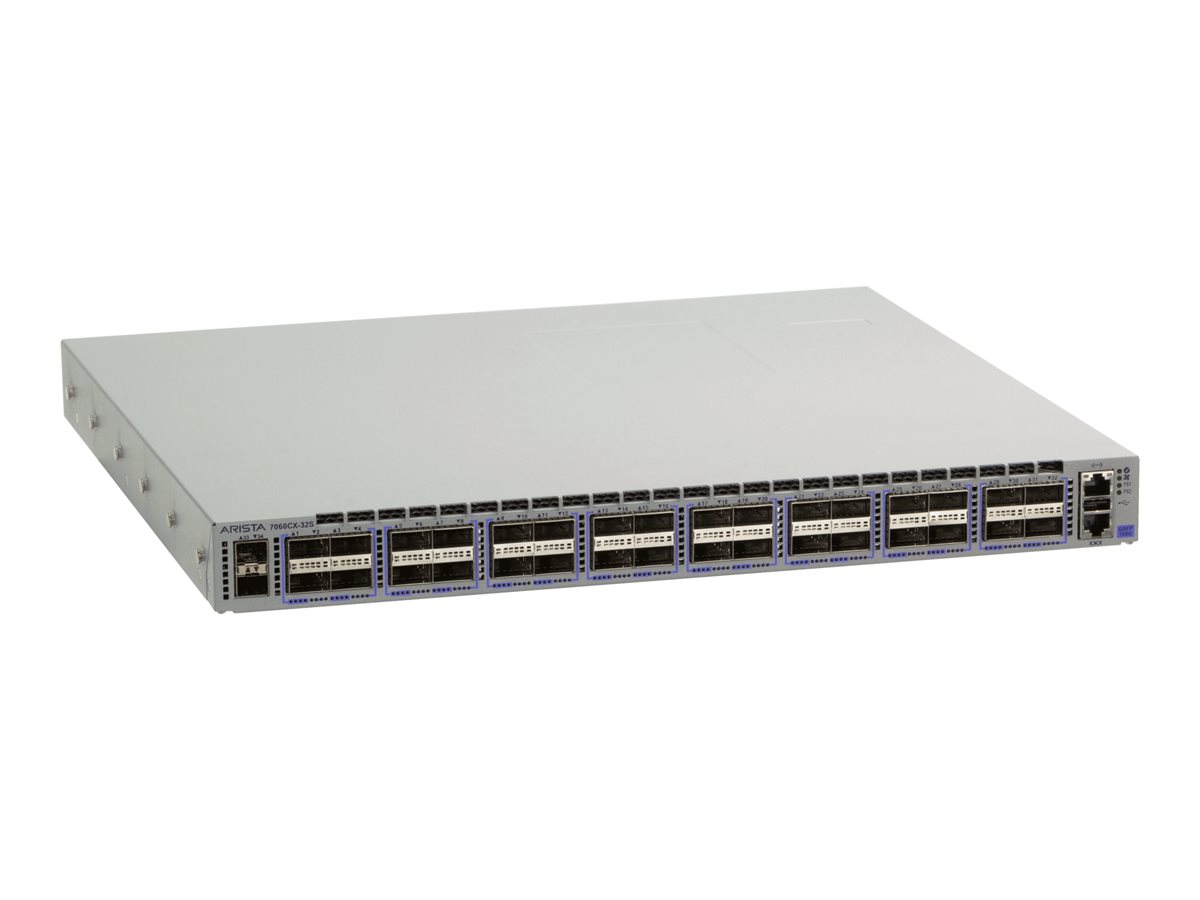

Arista DCS-7060CX-32S-F
Arista 7060X, 32x100GbE QSFP and 2xSFP+ switch, front-to-rear air, 2xAC, 2xC13-C14 cords
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Arista 7060X, 32x100GbE QSFP and 2xSFP+ switch, front-to-rear air, 2xAC, 2xC13-C14 cords
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ IGMP groups: 136000 ¦ ACL entries: 8000 |
| Compliant Standards: | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qaz, VCCI, C-Tick, BSMI, EN55022, EN55024, CB, CCC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, NRTL, Directive 2006/95/EC, EAC, MSIP, EN 61000-3-11:2000, EN 61000-3-12:2011, RoHS 2011/65/EU, EMC 2004/108/EC, WEEE 2012/19/EU, EN 300386, EN61000-3-3, EN61000-3-2 |
| Depth: | 40.64 cm |
| Device Type: | Switch - 32 ports - L3 - Managed |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Features: | Flow control, Layer 3 switching, Layer 2 switching, NAT support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control L |
| Flash Memory: | 4 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Installed Qty: | 2 |
| Interfaces: | 1 x 1000Base-T RJ-45 management ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB Type A ¦ 32 x 100Gbit LAN QSFP+ ¦ 2 x 10Gbit LANSFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 136K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Layer 3 throughput: 6.4 Tbps |
| Ports: | 32 x QSFP+ + 2 x SFP+ |
| Power Consumption Operational: | 220 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 500 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, VRRP, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, ECMP, policy-based routing (PBR) |
| Subtype: | 100 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 9.5 kg |
| Width: | 48.3 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Arista 7060X, 32x100GbE QSFP and 2xSFP+ switch, front-to-rear air, 2xAC, 2xC13-C14 cords
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ IGMP groups: 136000 ¦ ACL entries: 8000 |
| Compliant Standards: | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qaz, VCCI, C-Tick, BSMI, EN55022, EN55024, CB, CCC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, NRTL, Directive 2006/95/EC, EAC, MSIP, EN 61000-3-11:2000, EN 61000-3-12:2011, RoHS 2011/65/EU, EMC 2004/108/EC, WEEE 2012/19/EU, EN 300386, EN61000-3-3, EN61000-3-2 |
| Depth: | 40.64 cm |
| Device Type: | Switch - 32 ports - L3 - Managed |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Features: | Flow control, Layer 3 switching, Layer 2 switching, NAT support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control L |
| Flash Memory: | 4 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Installed Qty: | 2 |
| Interfaces: | 1 x 1000Base-T RJ-45 management ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB Type A ¦ 32 x 100Gbit LAN QSFP+ ¦ 2 x 10Gbit LANSFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 136K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Layer 3 throughput: 6.4 Tbps |
| Ports: | 32 x QSFP+ + 2 x SFP+ |
| Power Consumption Operational: | 220 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 500 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, VRRP, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, ECMP, policy-based routing (PBR) |
| Subtype: | 100 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 9.5 kg |
| Width: | 48.3 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
