Aruba JL726B

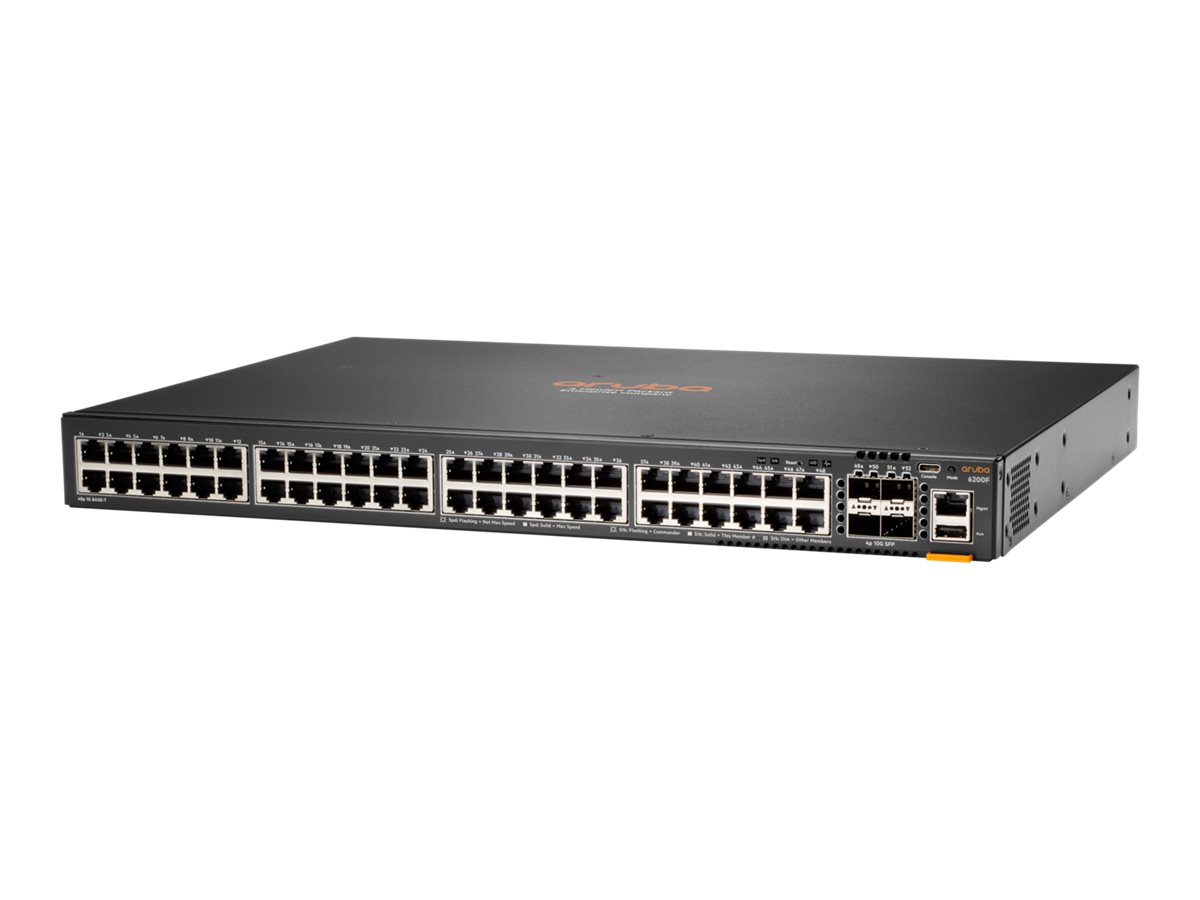

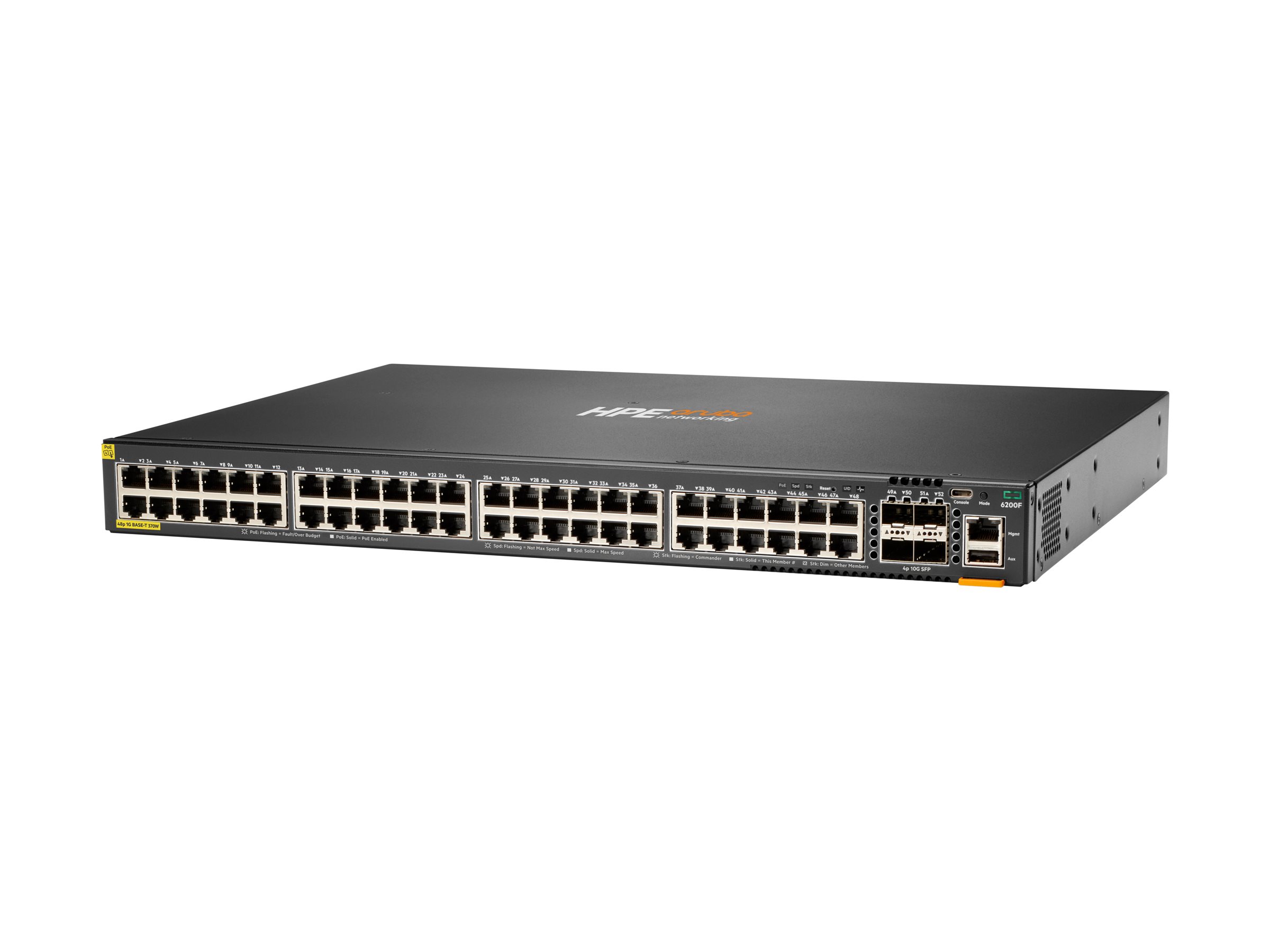

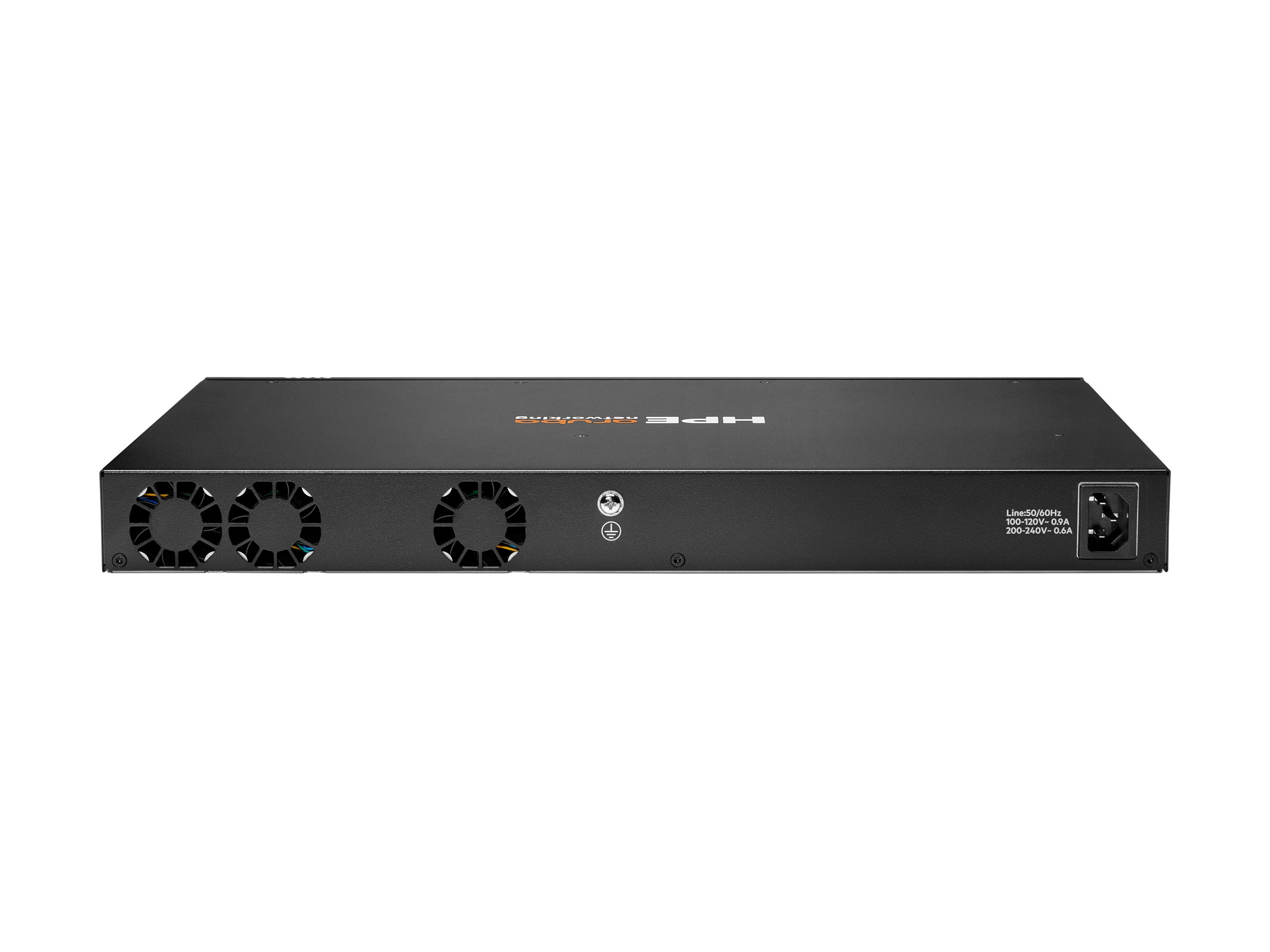

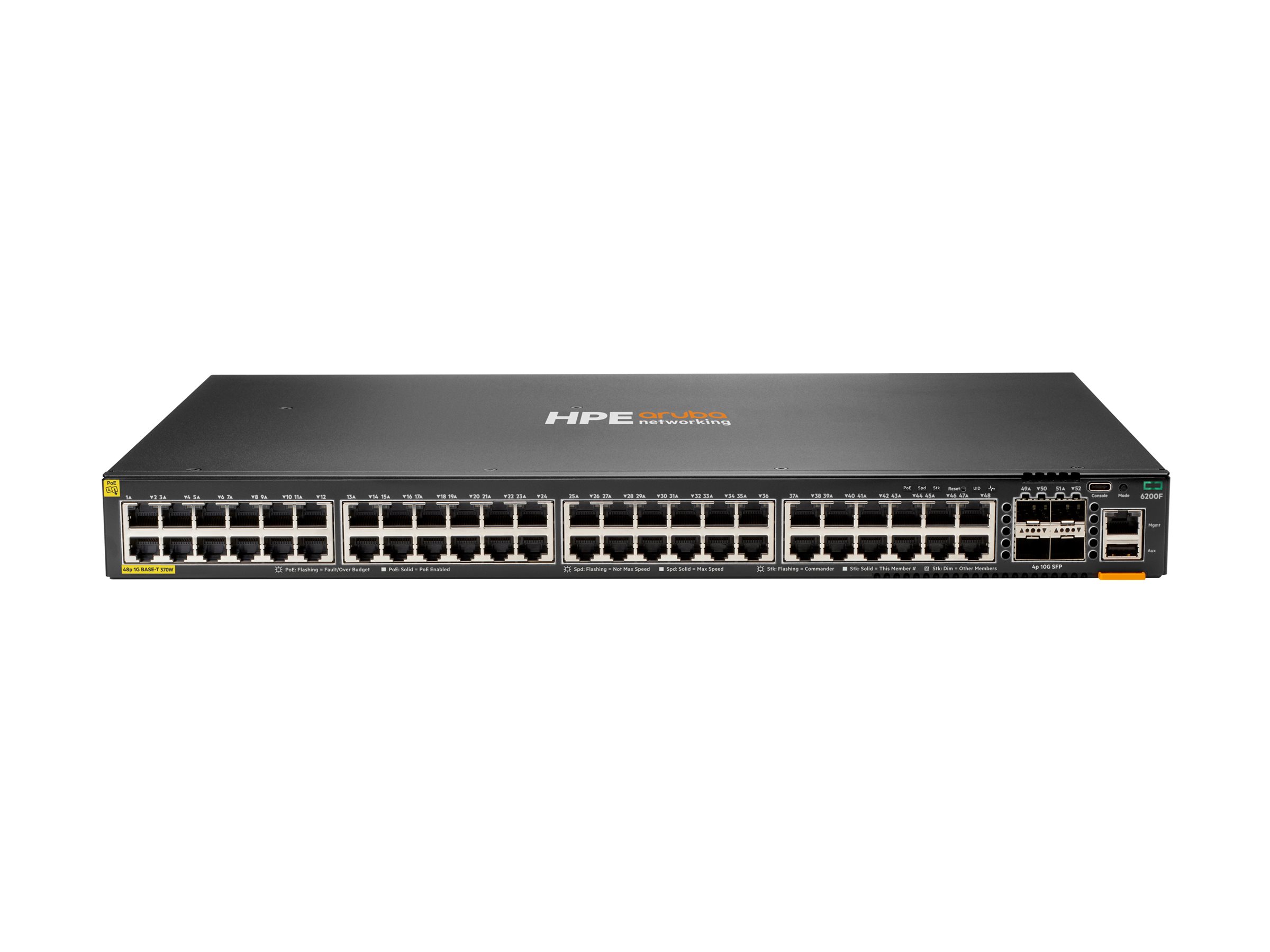

HPE Aruba Networking CX 6200F 48G 4SFP+ Switch
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HPE Aruba Networking CX 6200F 48G 4SFP+ Switch
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Packet buffer size: 8 MB |
| Compliant Standards: | EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 623 |
| Depth: | 28.45 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Front and side to back rack-mountable 1U |
| Encryption Algorithm: | SSL, FIPS 140-2 |
| Features: | Virtual Route Redundancy Protocol (VRRP) support, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), PoE Class 4, Rapi |
| Flash Memory: | 16 GB |
| Height: | 4.37 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Included Accessories: | 2-Post Rack Kit |
| Interfaces: | 48 x 10/100/1000 Base-T RJ-45 ¦ 4 x 100/1000/10G SFP+ uplink/stacking ¦ 1 x USB-C console ¦ 1 x console RJ-45 ¦ 1 x management ¦ 1 x USB Type A host |
| Jumbo Frame Support: | 9220 bytes |
| MAC Address Table Size: | 32768 entries |
| Manufacturer: | HPE Aruba |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Units In A Stack: | 8 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| OS Required: | AOS-CX |
| Performance: | Switching capacity: 176 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs |
| Ports: | 48 x 10/100/1000 + 4 x 100/1000/10G SFP+ |
| Power Device: | Internal power supply |
| Processor: | 1 x ARM Cortex-A72: 1.8 GHz |
| RAM: | 8 GB DDR4 SDRAM |
| Remote Management Protocol: | RMON, CLI, MIB |
| Routing Protocol: | RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-120/200-240 V |
| Weight: | 3.9 kg |
| Width: | 44.25 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
