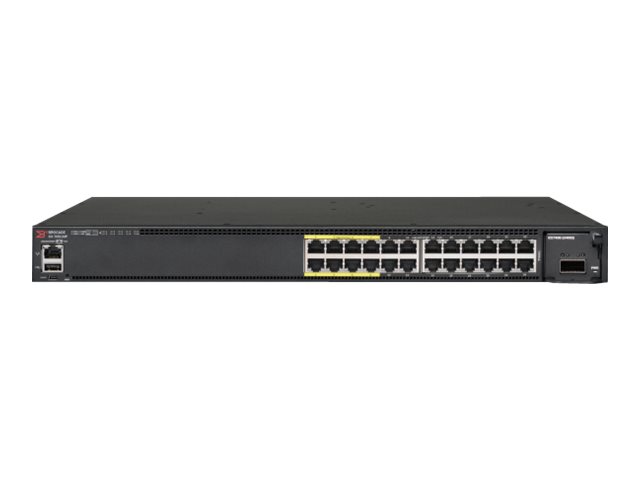

Brocade-Foundry ICX7450-24P-E
24-port 1 GbE switch PoE+ bundle 4x10G SFP+ uplinks 2x40G QSFP+ uplinks/stacking 1000W AC PSU and fan with power-supply-side exhaust airflow
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
24-port 1 GbE switch PoE+ bundle 4x10G SFP+ uplinks 2x40G QSFP+ uplinks/stacking 1000W AC PSU and fan with power-supply-side exhaust airflow
| Authentication Method: | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ Spanning Tree Protocol instances: 254 ¦ IPv4 routes: 16000 ¦ IPv6 routes: 3000 |
| Compliant Standards: | CISPR 22 Class A, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068 |
| Depth: | 39.37 cm |
| Device Type: | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Encryption Algorithm: | AES |
| Expansion Slots: | 3 (total) / 0 (free) x Expansion Slot |
| Features: | Flow control, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, MAC address filtering, IPv6 support, High Availability, LFS, MRP suppor |
| Height: | 4.37 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Humidity Range Storage: | 0 - 95% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x USB Type A ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x mini-USB management ¦ 4 x 10Gbit LAN SFP+ uplink ¦ 2 x 40Gbit LAN QSFP+ stacking |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 32000 entries |
| MTBF: | 317,719 hour(s) |
| Manufacturer: | Brocade Foundry |
| Max Operating Temperature: | 50 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Max Units In A Stack: | 12 |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -25 °C |
| OS Required: | IBM AIX, SunSoft Solaris, HP-UX, Microsoft Windows |
| Performance: | Switching capacity: 288 Gbps ¦ Forwarding performance: 214 Mpps ¦ Stacking bandwidth: 160 Gbps |
| Ports: | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Consumption Operational: | 75 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Over Ethernet (PoE): | PoE+ |
| Power Provided: | 1000 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Remote Management Protocol: | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 6.9 kg |
| Width: | 44 cm |
| GPSR - economic actor: | Broadcom, Deutschland, Willy Brandt Platz 2 Riem Arcaden, München, 81829, press.relations @ broadcom.com |
|---|---|
| GPSR - product manufacturer: | Broadcom, Deutschland, Willy Brandt Platz 2 Riem Arcaden, München, 81829, press.relations @ broadcom.com |
| GPSR - EU responsible person: | Broadcom, Deutschland, Willy Brandt Platz 2 Riem Arcaden, München, 81829, press.relations @ broadcom.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
