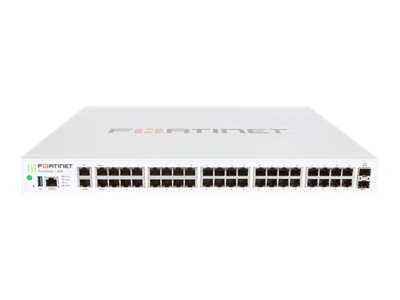

Fortinet FG-140E-POE
40 x GE RJ45 (inc 24 x RJ45 GE POE/POE+ ports, 14 x switch ports, 1 x MGMT port, 1x HA port, 2 x WAN ports), 2 x GE SFP DMZ slots. Max managed FortiAPs (Total / Tunnel) 64 / 32.
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
40 x GE RJ45 (inc 24 x RJ45 GE POE/POE+ ports, 14 x switch ports, 1 x MGMT port, 1x HA port, 2 x WAN ports), 2 x GE SFP DMZ slots. Max managed FortiAPs (Total / Tunnel) 64 / 32.
| Capacity: | Concurrent TCP sessions: 2000000 ¦ New TCP sessions per second: 30000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 10000 ¦ Concurrent SSL VPN users: 300 ¦ Virtual domains: 10 ¦ Maximum numb |
|---|---|
| Compliant Standards: | UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA Network IPS, RCM, ICSA SSL-VPN |
| Compliant Standards: | IEEE 802.3at |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 39.4 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 128-bit AES, 256-bit SHA, TLS 1.2 |
| Features: | Firewall protection, VPN support, content filtering, manageable, High Availability, Intrusion Prevention System (IPS), anti-virus protection |
| Form Factor: | Rack-mountable |
| Height: | 4.445 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Interfaces: | 2 x 1000Base-T - RJ-45 (WAN) ¦ 14 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x USB - Type A ¦ 2 x 1000Base-X - SFP (mini-GBIC) (DMZ) ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x console ¦ 24 x 1000Base-T (PoE+) - RJ-45 - 30 W |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Performance: | Firewall throughput (1518-byte UDP): 7.4 Gbps ¦ Firewall throughput (512-byte UDP): 7.4 Gbps ¦ Firewall throughput (64-byte UDP): 4.4 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 6.6 Mpps ¦ VPN throughput (512-bit IPSec): 4 Gbps ¦ VP |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE) Supported: | PoE+ |
| Power Redundancy: | Optional |
| Processors Installed: | Fortinet FortiASIC SOC3 |
| Status Indicators: | Power, status, alarm, HA |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 5.6 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
40 x GE RJ45 (inc 24 x RJ45 GE POE/POE+ ports, 14 x switch ports, 1 x MGMT port, 1x HA port, 2 x WAN ports), 2 x GE SFP DMZ slots. Max managed FortiAPs (Total / Tunnel) 64 / 32.
| Capacity: | Concurrent TCP sessions: 2000000 ¦ New TCP sessions per second: 30000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 10000 ¦ Concurrent SSL VPN users: 300 ¦ Virtual domains: 10 ¦ Maximum numb |
|---|---|
| Compliant Standards: | UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA Network IPS, RCM, ICSA SSL-VPN |
| Compliant Standards: | IEEE 802.3at |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 39.4 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 128-bit AES, 256-bit SHA, TLS 1.2 |
| Features: | Firewall protection, VPN support, content filtering, manageable, High Availability, Intrusion Prevention System (IPS), anti-virus protection |
| Form Factor: | Rack-mountable |
| Height: | 4.445 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Interfaces: | 2 x 1000Base-T - RJ-45 (WAN) ¦ 14 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x USB - Type A ¦ 2 x 1000Base-X - SFP (mini-GBIC) (DMZ) ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x console ¦ 24 x 1000Base-T (PoE+) - RJ-45 - 30 W |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Performance: | Firewall throughput (1518-byte UDP): 7.4 Gbps ¦ Firewall throughput (512-byte UDP): 7.4 Gbps ¦ Firewall throughput (64-byte UDP): 4.4 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 6.6 Mpps ¦ VPN throughput (512-bit IPSec): 4 Gbps ¦ VP |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE) Supported: | PoE+ |
| Power Redundancy: | Optional |
| Processors Installed: | Fortinet FortiASIC SOC3 |
| Status Indicators: | Power, status, alarm, HA |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 5.6 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
