HPE R0X25C

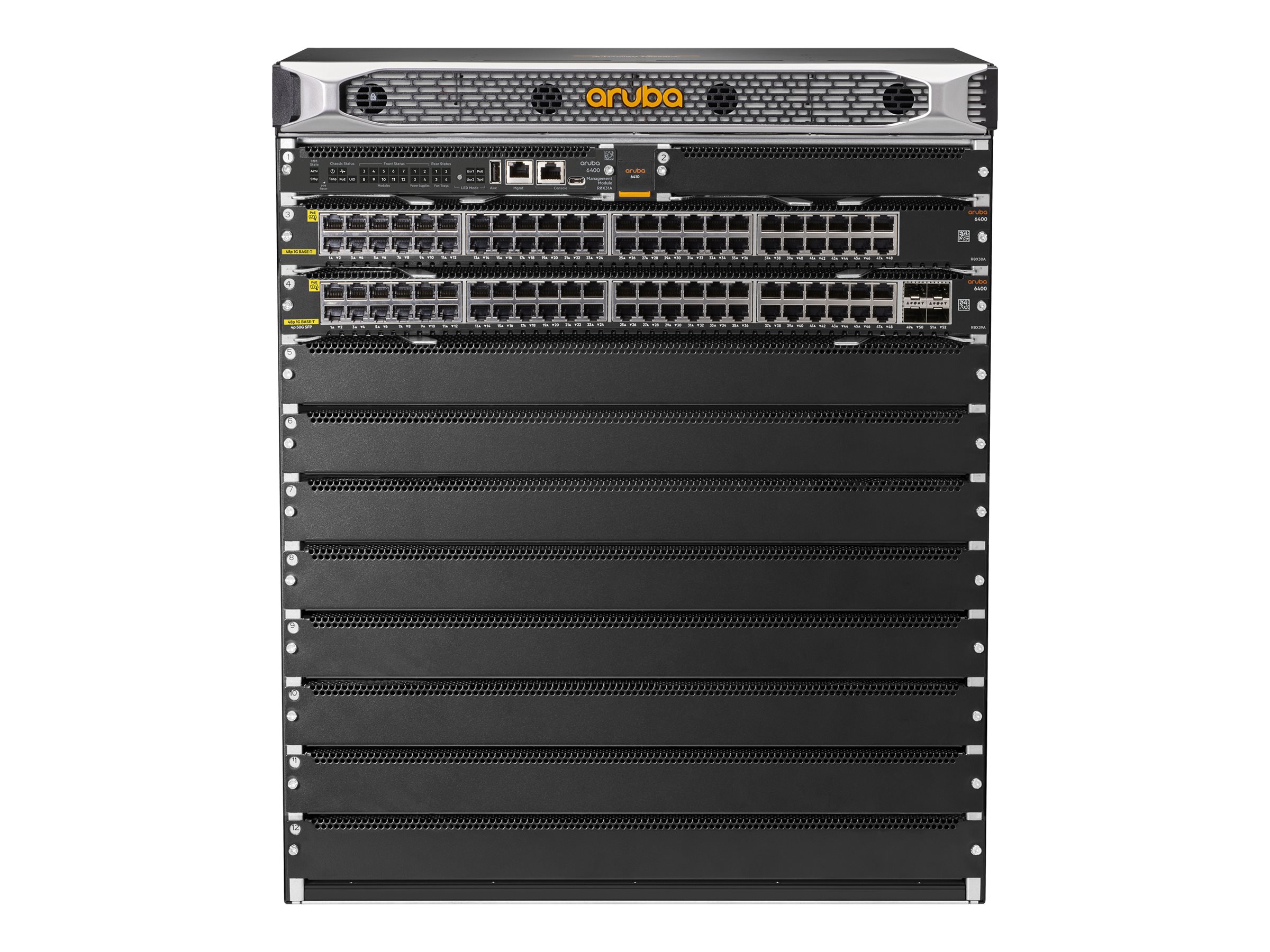

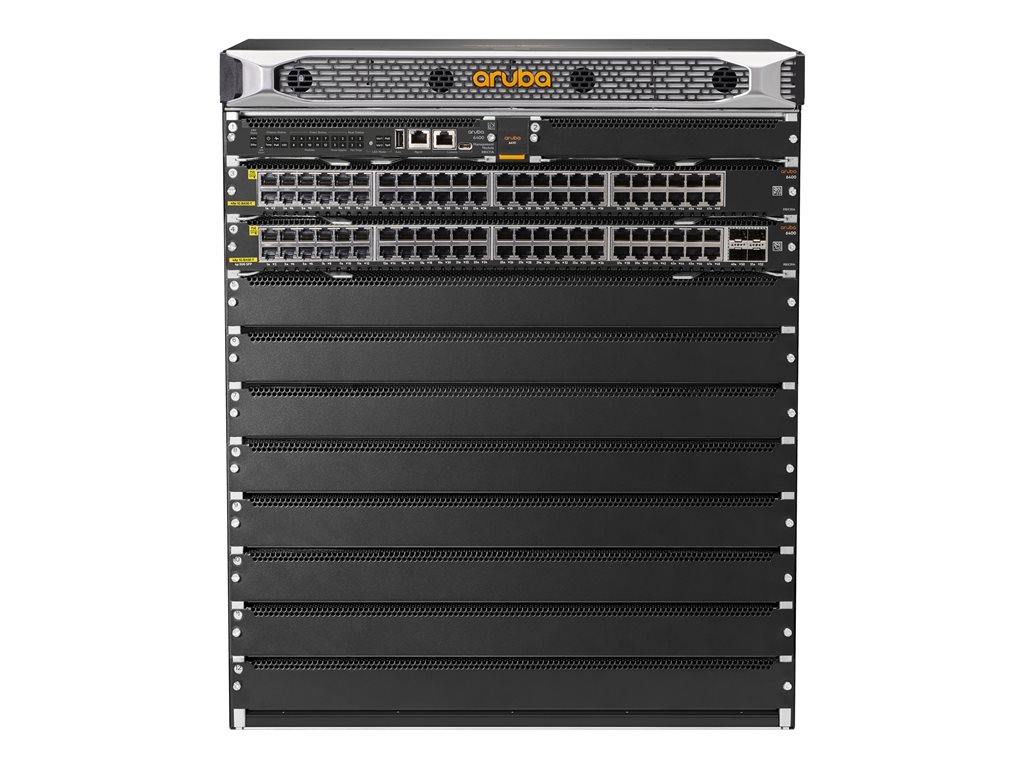

ARUBA 6410 v2 CHASSIS
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ARUBA 6410 v2 CHASSIS
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Switched virtual interfaces (SVIs): 2000 ¦ IPv4 host table capacity: 28800 ¦ IPv6 host table capacity: 28800 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 64000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 |
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, WEEE, VCCI Cl |
| Depth: | 44.85 cm |
| Device Type: | Switch - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable 12U |
| Features: | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, firmware upgradable, sFlow, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP su |
| Flash Memory: | 32 GB |
| Height: | 52.88 cm |
| Humidity Range Operating: | 15 - 95% (non-condensing) |
| Humidity Range Storage: | 15 - 95% (non-condensing) |
| Installed Modules Qty (Max): | 3 (installed) / 12 (max) |
| Jumbo Frame Support: | 9198 bytes |
| MAC Address Table Size: | 29490 entries |
| Manufacturer: | Aruba HPE |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 4 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 28 Tbps ¦ Throughput: 20 Bpps |
| Power Device: | Internal power supply (not installed) |
| Power Over Ethernet (PoE): | PoE+ |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | N+1 (with optional power supply) |
| Processor: | 1: 1.8 GHz |
| RAM: | 16 GB DDR4 SDRAM |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, SSH-2, CLI, XRMON, SFTP |
| Routing Protocol: | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD) |
| Status Indicators: | Power, active, standby, status, fan |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Weight: | 53.5 kg |
| Width: | 44.26 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
ARUBA 6410 v2 CHASSIS
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Switched virtual interfaces (SVIs): 2000 ¦ IPv4 host table capacity: 28800 ¦ IPv6 host table capacity: 28800 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 64000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 |
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, WEEE, VCCI Cl |
| Depth: | 44.85 cm |
| Device Type: | Switch - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable 12U |
| Features: | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, firmware upgradable, sFlow, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP su |
| Flash Memory: | 32 GB |
| Height: | 52.88 cm |
| Humidity Range Operating: | 15 - 95% (non-condensing) |
| Humidity Range Storage: | 15 - 95% (non-condensing) |
| Installed Modules Qty (Max): | 3 (installed) / 12 (max) |
| Jumbo Frame Support: | 9198 bytes |
| MAC Address Table Size: | 29490 entries |
| Manufacturer: | Aruba HPE |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 4 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 28 Tbps ¦ Throughput: 20 Bpps |
| Power Device: | Internal power supply (not installed) |
| Power Over Ethernet (PoE): | PoE+ |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | N+1 (with optional power supply) |
| Processor: | 1: 1.8 GHz |
| RAM: | 16 GB DDR4 SDRAM |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, SSH-2, CLI, XRMON, SFTP |
| Routing Protocol: | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD) |
| Status Indicators: | Power, active, standby, status, fan |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Weight: | 53.5 kg |
| Width: | 44.26 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
