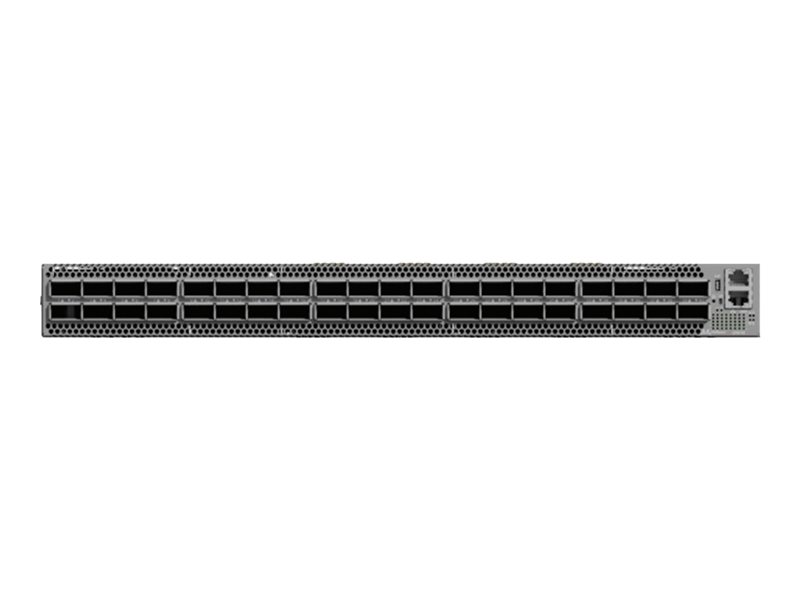

Mellanox MQM8700-HS2F
Mellanox Quantum HDR InfiniBand Switch, 40 QSFP56 ports, 2 Power Supplies (AC), x86 dual core, standard depth, P2C airflow, Rail Kit
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Mellanox Quantum HDR InfiniBand Switch, 40 QSFP56 ports, 2 Power Supplies (AC), x86 dual core, standard depth, P2C airflow, Rail Kit
| 80 PLUS Certification: | 80 PLUS Gold |
|---|---|
| Capacity: | Virtual lanes: 9 |
| Compliant Standards: | VCCI, CB, EMC, FCC, RoHS, ICES, cTUVus, ISO 7779, ETS 300 753, RCM, IFS HPC, CU |
| Device Type: | Switch - 40 ports - smart |
| ENERGY STAR Certified: | Yes |
| Enclosure Type: | Back to front airflow desktop, rack-mountable 1U |
| Features: | DHCP support, port mirroring, manageable, reset button, static routing, adaptive routing, congestion control, hot swappable fan, Co-Design Scalable Hierarchical Aggregation Protocol (SHArP) technology, IPv6 management, VL2VL mapping |
| Features: | 80 PLUS Gold efficiency |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Included Accessories: | Rack rails kit |
| Installed Qty: | 2 |
| Interfaces: | 40 x QSFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) management ¦ 1 x USB |
| Manufacturer: | Nvidia Mellanox |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Non-blocking switching capacity: 16 Tbps ¦ Bandwidth per port (40 HDR): 200 Gbps ¦ Bandwidth per port (80 HDR with splitter cables): 100 Gbps ¦ Port-to-port latency: 90 ns ¦ Performance: 15800000 messages per second |
| Ports: | 40 x HDR InfiniBand QSFP28 |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, SNMP 2, SNMP 3, HTTP |
| Status Indicators: | Port status, power, Unit ID, system, link/activity, fan |
| Subtype: | InfiniBand |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| GPSR - economic actor: | Nvidia, Deutschland, Einsteinstraße 172, München, 81677, info @ nvidia.com |
|---|---|
| GPSR - product manufacturer: | Nvidia, Deutschland, Einsteinstraße 172, München, 81677, info @ nvidia.com |
| GPSR - EU responsible person: | Nvidia, Deutschland, Einsteinstraße 172, München, 81677, info @ nvidia.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Mellanox Quantum HDR InfiniBand Switch, 40 QSFP56 ports, 2 Power Supplies (AC), x86 dual core, standard depth, P2C airflow, Rail Kit
| 80 PLUS Certification: | 80 PLUS Gold |
|---|---|
| Capacity: | Virtual lanes: 9 |
| Compliant Standards: | VCCI, CB, EMC, FCC, RoHS, ICES, cTUVus, ISO 7779, ETS 300 753, RCM, IFS HPC, CU |
| Device Type: | Switch - 40 ports - smart |
| ENERGY STAR Certified: | Yes |
| Enclosure Type: | Back to front airflow desktop, rack-mountable 1U |
| Features: | DHCP support, port mirroring, manageable, reset button, static routing, adaptive routing, congestion control, hot swappable fan, Co-Design Scalable Hierarchical Aggregation Protocol (SHArP) technology, IPv6 management, VL2VL mapping |
| Features: | 80 PLUS Gold efficiency |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Included Accessories: | Rack rails kit |
| Installed Qty: | 2 |
| Interfaces: | 40 x QSFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) management ¦ 1 x USB |
| Manufacturer: | Nvidia Mellanox |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Non-blocking switching capacity: 16 Tbps ¦ Bandwidth per port (40 HDR): 200 Gbps ¦ Bandwidth per port (80 HDR with splitter cables): 100 Gbps ¦ Port-to-port latency: 90 ns ¦ Performance: 15800000 messages per second |
| Ports: | 40 x HDR InfiniBand QSFP28 |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, SNMP 2, SNMP 3, HTTP |
| Status Indicators: | Port status, power, Unit ID, system, link/activity, fan |
| Subtype: | InfiniBand |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| GPSR - economic actor: | Nvidia, Deutschland, Einsteinstraße 172, München, 81677, info @ nvidia.com |
|---|---|
| GPSR - product manufacturer: | Nvidia, Deutschland, Einsteinstraße 172, München, 81677, info @ nvidia.com |
| GPSR - EU responsible person: | Nvidia, Deutschland, Einsteinstraße 172, München, 81677, info @ nvidia.com |
