APC AP4433A

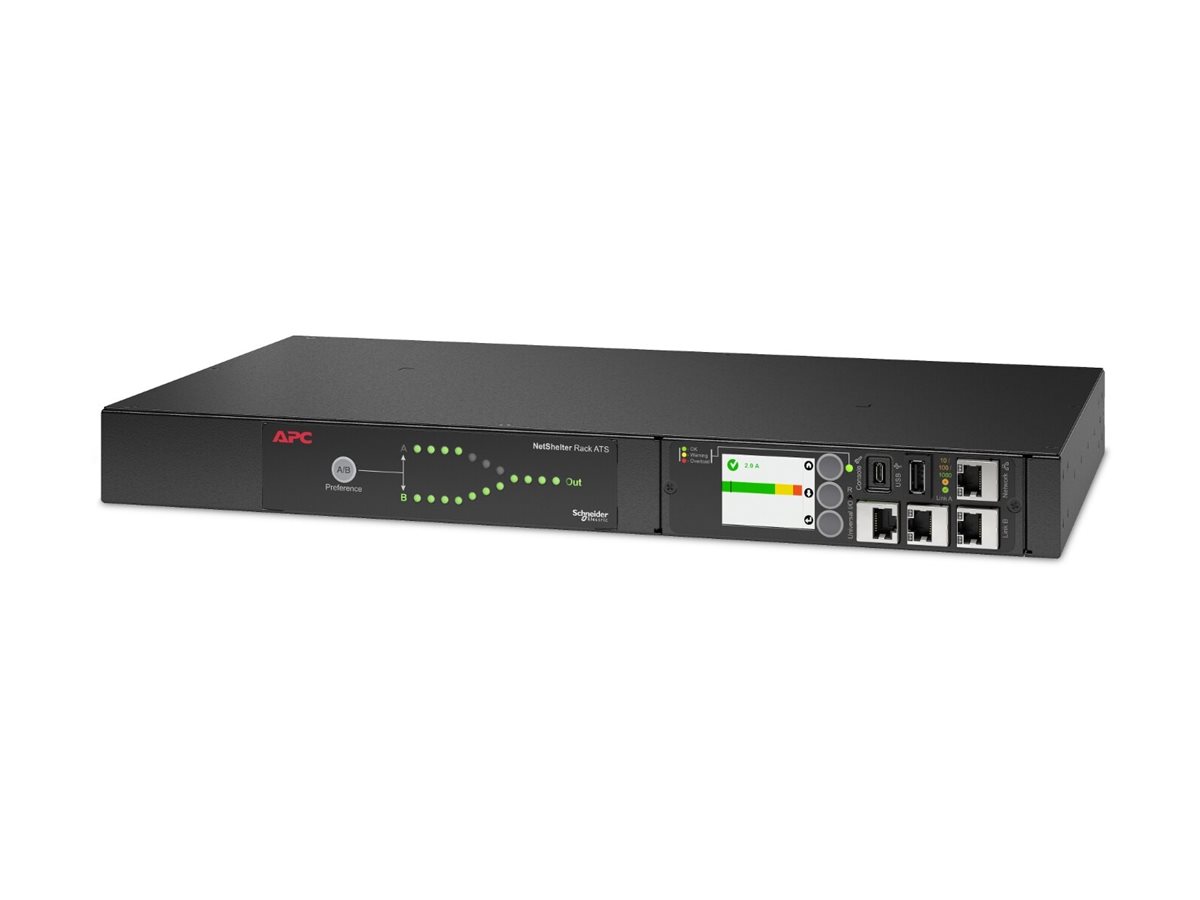

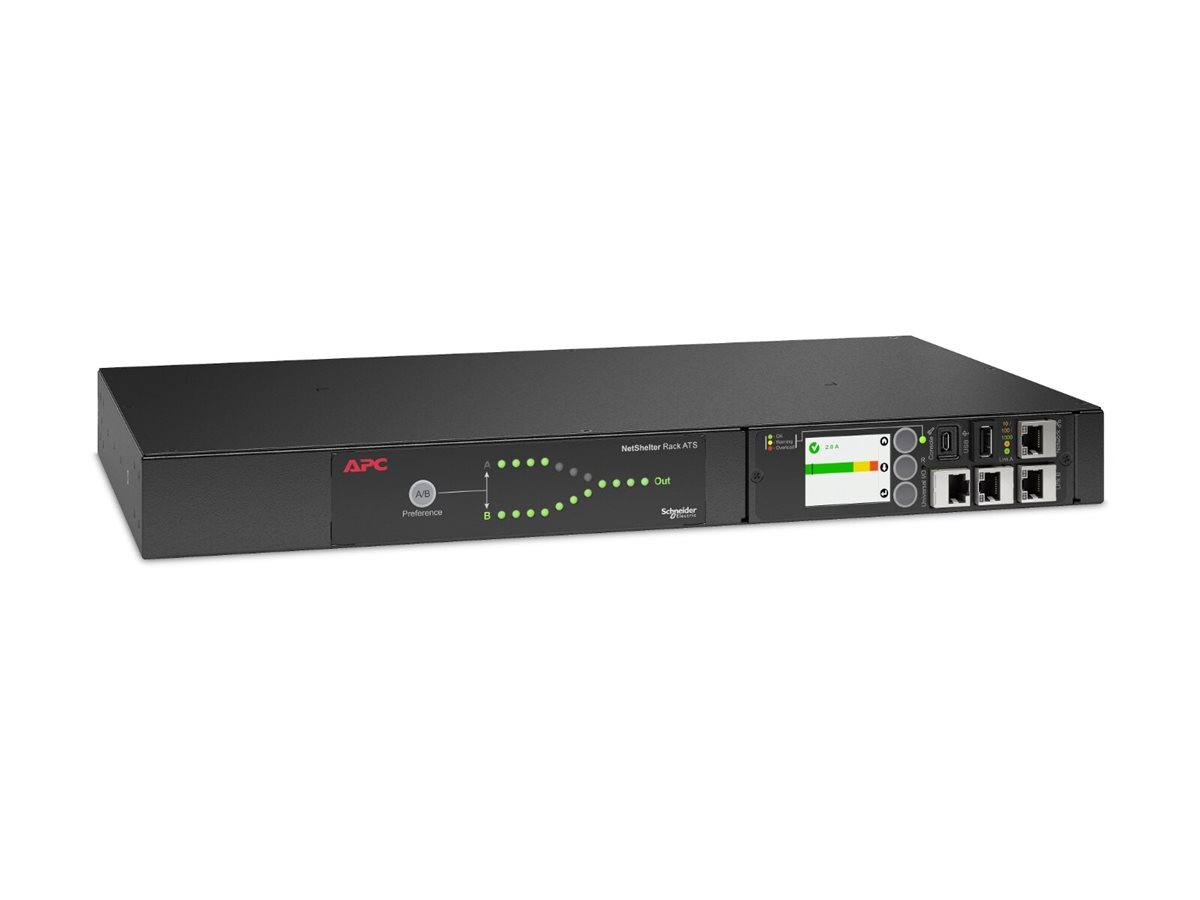

APC Rack Ats, 208V, 12A, C14 In, (12) C13 Out
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
APC Rack Ats, 208V, 12A, C14 In, (12) C13 Out
| Cable Length: | 2.44 m |
|---|---|
| Cables Included: | 2 x power cable - integrated - 2.44 m ¦ Serial cable - external |
| Colour: | Black |
| Compliant Standards: | WEEE, FCC Part 15 A, REACH, China RoHS, EN 55022 Class A, EU RoHS |
| Depth: | 23.6 cm |
| Device Type: | Redundant switch - rack-mountable |
| Features: | Horizontal orientation, box package, LCD display, humidity monitoring, LED indicators, temperature sensor |
| Frequency Required: | 50/60 Hz |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 95% |
| Included Accessories: | Mounting kit, rack mounting brackets |
| Input Connectors: | 2 x power IEC 60320 C14 |
| Input Voltage: | AC 208 V |
| Input Voltage Margin: | ± 10% |
| Input Wiring: | 1-phase |
| Interfaces: | 1 x sensor ¦ 3 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type B ¦ 1 x console |
| Manufacturer: | APC Schneider |
| Max Electric Current: | 12 A |
| Max Operating Temperature: | 45 °C |
| Min Operating Temperature: | -5 °C |
| Output Voltage: | AC 208 V |
| Power Capacity: | 3300 VA |
| Power Output Connectors Details: | 12 x power IEC 60320 C13 12 A |
| Rack Mounting Kit: | Included |
| Remote Management Interface: | USB, Ethernet 10/100/1000 |
| Remote Management Protocol: | SNMP, CLI |
| Shipping Depth: | 35.6 cm |
| Shipping Height: | 11.4 cm |
| Shipping Weight: | 5.51 kg |
| Shipping Width: | 60 cm |
| Version: | original |
| Weight: | 3.74 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade@schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade@schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade@schneider-electric.com |
| EU Data-Act-Url: | https://www.se.com/de/de/about-us/sustainability/responsibility-ethics/ |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switch Modules International.pdf |
APC Rack Ats, 208V, 12A, C14 In, (12) C13 Out
| Cable Length: | 2.44 m |
|---|---|
| Cables Included: | 2 x power cable - integrated - 2.44 m ¦ Serial cable - external |
| Colour: | Black |
| Compliant Standards: | WEEE, FCC Part 15 A, REACH, China RoHS, EN 55022 Class A, EU RoHS |
| Depth: | 23.6 cm |
| Device Type: | Redundant switch - rack-mountable |
| Features: | Horizontal orientation, box package, LCD display, humidity monitoring, LED indicators, temperature sensor |
| Frequency Required: | 50/60 Hz |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 95% |
| Included Accessories: | Mounting kit, rack mounting brackets |
| Input Connectors: | 2 x power IEC 60320 C14 |
| Input Voltage: | AC 208 V |
| Input Voltage Margin: | ± 10% |
| Input Wiring: | 1-phase |
| Interfaces: | 1 x sensor ¦ 3 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type B ¦ 1 x console |
| Manufacturer: | APC Schneider |
| Max Electric Current: | 12 A |
| Max Operating Temperature: | 45 °C |
| Min Operating Temperature: | -5 °C |
| Output Voltage: | AC 208 V |
| Power Capacity: | 3300 VA |
| Power Output Connectors Details: | 12 x power IEC 60320 C13 12 A |
| Rack Mounting Kit: | Included |
| Remote Management Interface: | USB, Ethernet 10/100/1000 |
| Remote Management Protocol: | SNMP, CLI |
| Shipping Depth: | 35.6 cm |
| Shipping Height: | 11.4 cm |
| Shipping Weight: | 5.51 kg |
| Shipping Width: | 60 cm |
| Version: | original |
| Weight: | 3.74 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade@schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade@schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade@schneider-electric.com |
| EU Data-Act-Url: | https://www.se.com/de/de/about-us/sustainability/responsibility-ethics/ |
