Alcatel-Lucent OS9702-CHASSIS

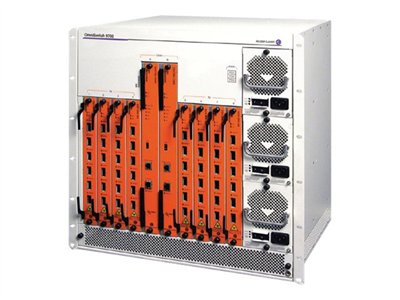

OS9702 10-slot chassis and fan tray for OS9/OS9E modules - 8 dedicated slots for network interfaces, 2 dedicated slots for CMMs (management and switching fabric) and 3 power supply bays.
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
OS9702 10-slot chassis and fan tray for OS9/OS9E modules - 8 dedicated slots for network interfaces, 2 dedicated slots for CMMs (management and switching fabric) and 3 power supply bays.
| Compliant Standards: | EN 61000-3-2, EN55022, NOM, VCCI Class A ITE, EN 61000-3-3, EN55024, UL 60950, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, IEC 60950-1, EN 60950-1, UL-AR, NEBS, EN |
|---|---|
| Depth: | 44 cm |
| Device Type: | Switch |
| Enclosure Type: | Rack-mountable 11U |
| Expansion Slots: | 2 (total) / 2 (free) x Chassis Management Module (CMM) slot ¦ 8 (total) / 8 (free) x Network Interface slot |
| Height: | 48.9 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Humidity Range Storage: | 10 - 90% (non-condensing) |
| Installed Modules Qty (Max): | 10 (max) |
| Manufacturer: | Alcatel-Lucent Nokia |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 3 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -10 °C |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Optional |
| Version: | original |
| Weight: | 25 kg |
| Width: | 44.2 cm |
| GPSR - economic actor: | Alcatel-Lucent, Deutschland, Stammheimer Str. 10 Haus 6, 3. OG, Kornwestheim, 70806, enterprise.solutions@al-enterprise.com |
|---|---|
| GPSR - product manufacturer: | Alcatel-Lucent, Deutschland, Stammheimer Str. 10 Haus 6, 3. OG, Kornwestheim, 70806, enterprise.solutions@al-enterprise.com |
| GPSR - EU responsible person: | Alcatel-Lucent, Deutschland, Stammheimer Str. 10 Haus 6, 3. OG, Kornwestheim, 70806, enterprise.solutions@al-enterprise.com |
| EU Data-Act-Url: | https://www.al-enterprise.com/de-de/rechtliches/compliance-regeln |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
