Cisco CTS-SX20-PHD4X-K9

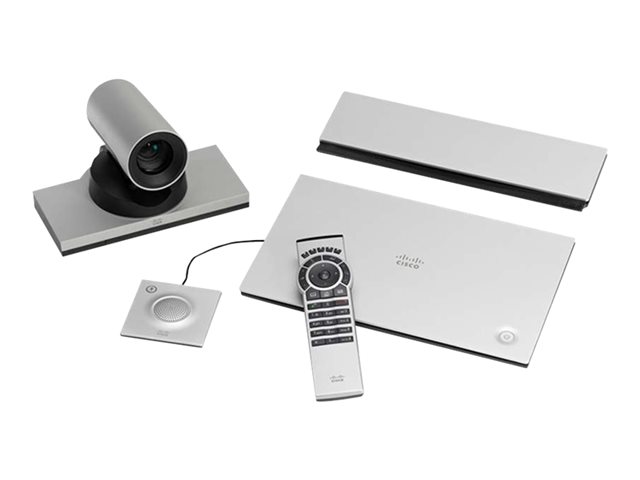

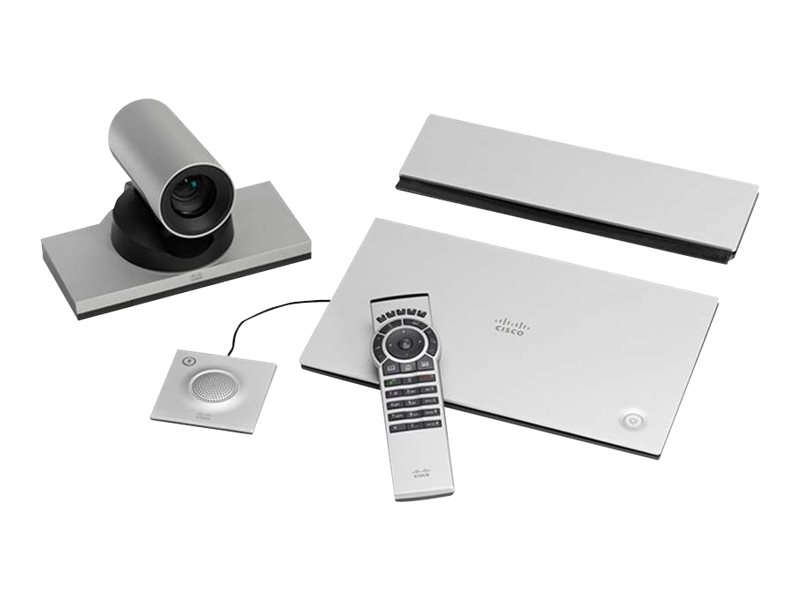

Cisco TelePresence SX20 Quick Set with PrecisionHD 4x Camera
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco TelePresence SX20 Quick Set with PrecisionHD 4x Camera
| Compliant Standards: | EN55022 Class B, FCC Part 15 B, EN 60950-1, CSA C22.2 No. 60950-1-07 |
|---|---|
| Connectivity Technology: | Wired, Wireless |
| Data Compression Protocol: | G.711, G.722, H.263, H.264, H.263+, G.722.1 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Device Type: | Video conferencing kit |
| Digital Signaling Protocol: | H.323, SIP |
| Digital Video Capture Resolution: | 1280 x 720, 1920 x 1080 |
| Digital Video Standard: | High-Definition Multimedia Interface (HDMI) |
| Dimensions & Weight Details: | Main system - Width 30 cm Depth 18 cm Height 3.4 cm Weight 1.4 kg |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Interface Type: | HD-SDI output, HDMI output |
| Interfaces: | 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 2 x microphone - input - mini-phone 3.5 mm 4-pole ¦ 1 x audio - input - mini-phone 3.5 mm ¦ 1 x display / video - input - DVI ¦ 1 x display / video - input - 19 pin HDMI Type A ¦ 1 x network - Ether |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 35 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, NTP, DHCP, DNS |
| Power Consumption Operational: | 40 Watt |

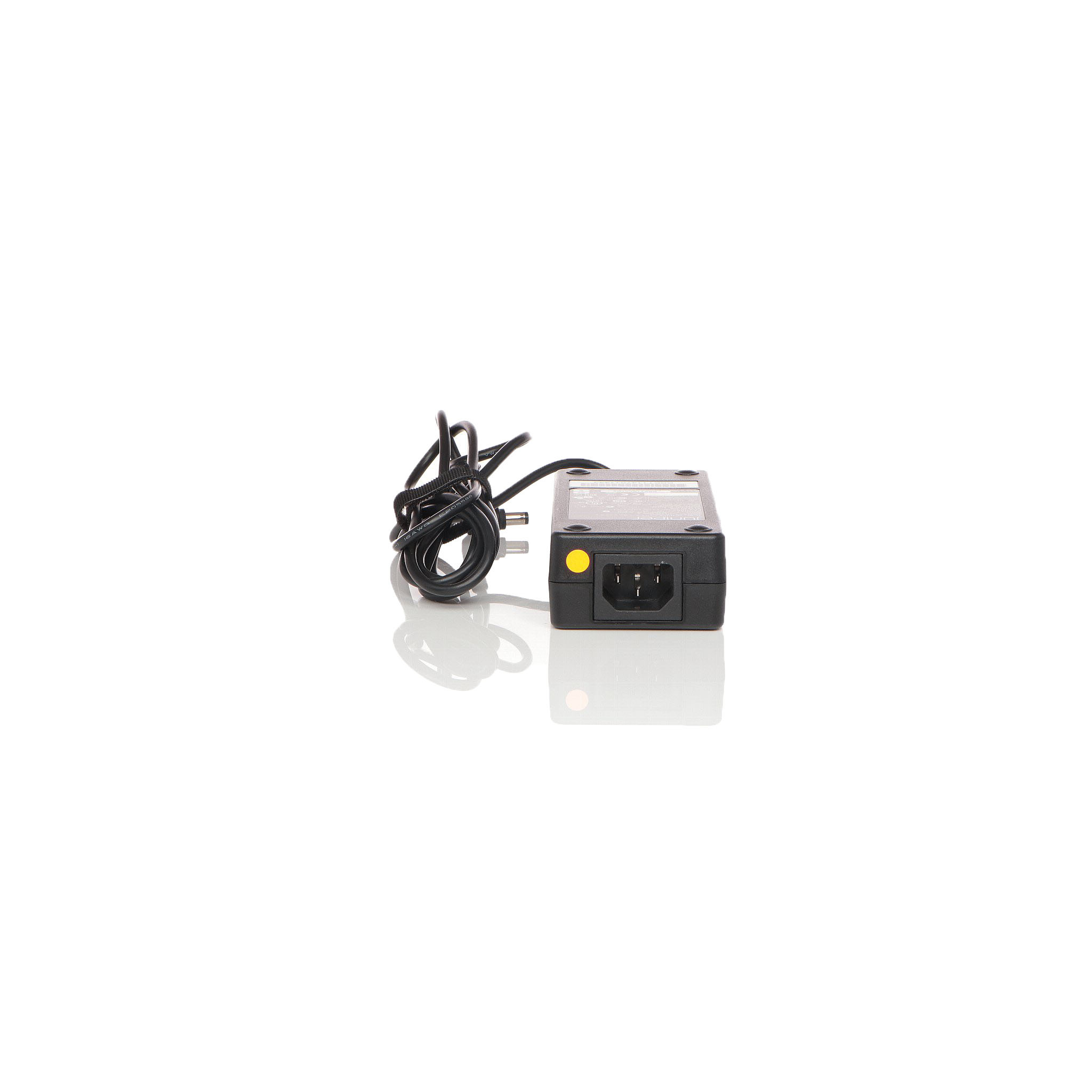

| Power Device: | Power supply |
| Supported Display Graphics: | VGA (640x480), XGA (1024x768), SVGA (800x600), HDTV (1920x1080), HD (1280 x 720), 1280x768, 1024x576, 704x576 |
| Type: | Digital video camera (colour) - external, Network adapter |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Conferencing Systems International.pdf |
| Safety instructions: | Safety instructions Conferencing Systems International.pdf |
Cisco TelePresence SX20 Quick Set with PrecisionHD 4x Camera
| Compliant Standards: | EN55022 Class B, FCC Part 15 B, EN 60950-1, CSA C22.2 No. 60950-1-07 |
|---|---|
| Connectivity Technology: | Wired, Wireless |
| Data Compression Protocol: | G.711, G.722, H.263, H.264, H.263+, G.722.1 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Device Type: | Video conferencing kit |
| Digital Signaling Protocol: | H.323, SIP |
| Digital Video Capture Resolution: | 1280 x 720, 1920 x 1080 |
| Digital Video Standard: | High-Definition Multimedia Interface (HDMI) |
| Dimensions & Weight Details: | Main system - Width 30 cm Depth 18 cm Height 3.4 cm Weight 1.4 kg |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Interface Type: | HD-SDI output, HDMI output |
| Interfaces: | 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 2 x microphone - input - mini-phone 3.5 mm 4-pole ¦ 1 x audio - input - mini-phone 3.5 mm ¦ 1 x display / video - input - DVI ¦ 1 x display / video - input - 19 pin HDMI Type A ¦ 1 x network - Ether |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 35 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, NTP, DHCP, DNS |
| Power Consumption Operational: | 40 Watt |
| Power Device: | Power supply |
| Supported Display Graphics: | VGA (640x480), XGA (1024x768), SVGA (800x600), HDTV (1920x1080), HD (1280 x 720), 1280x768, 1024x576, 704x576 |
| Type: | Digital video camera (colour) - external, Network adapter |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
