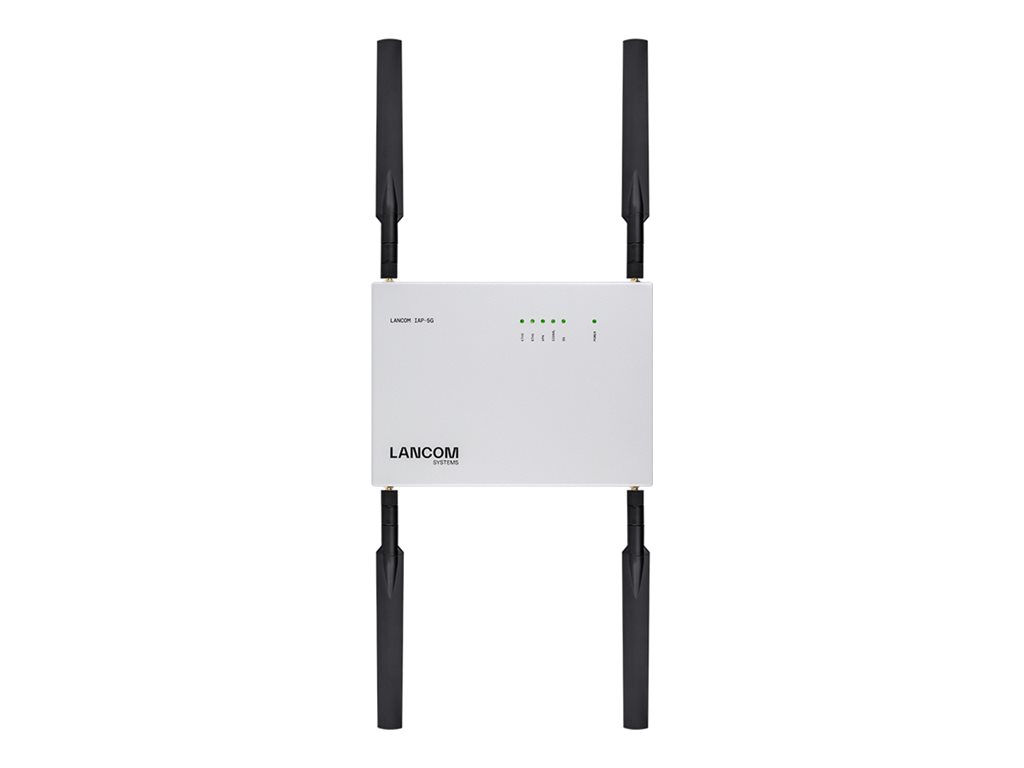

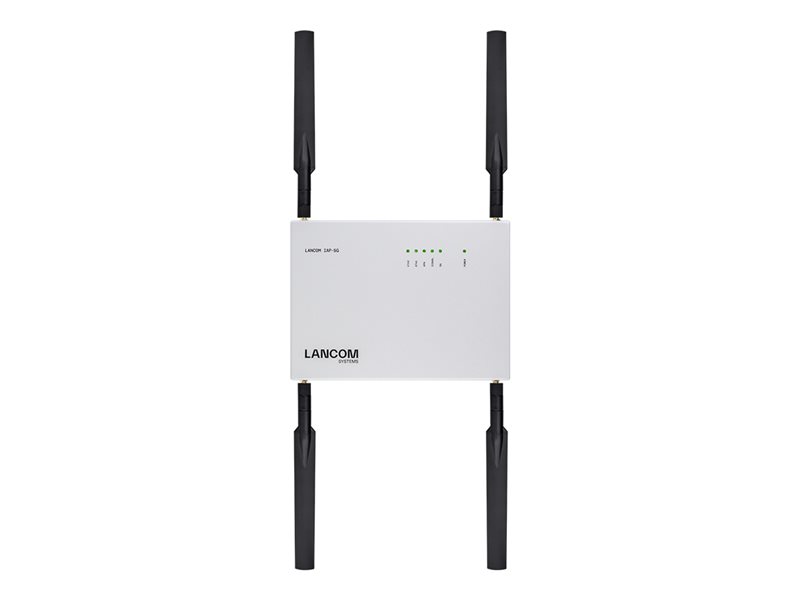

LANCOM IAP-5G (EU) industrial secure SD-WAN gateway, 5G, IP50 full-metal chassis, -20 to +50 C, 2x GE, 1x PoE IEEE 802.3at, IPSec VPN (5 ch., optional 25), 16 ARF, SPI firewall, optional content filter, QoS, VRRP, LB, 12V PSU, incl. wall mount kit
| Antenna: | External detachable |
|---|---|
| Antenna Qty: | 4 |
| Authentication Method: | PAP, CHAP, MS-CHAP, MS-CHAP v.2, RADIUS, RADSEC, TACACS+, EAP-TLS, EAP-TTLS, EAP-PEAP, X.509 certificates, XAUTH authentication |
| Built-in Devices: | 5G modem, system fan |
| Cables Included: | 1 x network cable - 3 m |
| Capacity: | IPSecVPN connections: 5 ¦ VLANIDs: 4096 |
| Compliant Standards: | IEEE 802.3at, IEEE 802.1Q, IEEE 802.3az |
| Compliant Standards: | IP50, UKCA, EN 62368, EN55022, EN55024 |
| Connectivity Technology: | Wired, wireless |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 5G, LTE, UMTS, HSPA, VDSL, VDSL2 |
| Depth: | 3.3 cm |
| Device Type: | SD-WANgateway |
| Digital Signaling Protocol: | VDSL, ADSL, ADSL2, ADSL2+ |
| Encryption Algorithm: | 3DES-168, AES, CRL, AES-CBC, 128-bit AES-GCM, 192-bit AES-GCM, 256-bit AES-GCM, 1024-bit RSA, 128-bit Blowfish, 2048-bit RSA, 3072-bit RSA, 4096-bit RSA, CAST-128, Chacha20-Poly 1305, ECDSA 256-bit, ECDSA 384-bit, ECDSA 512-bit, FIPS 140, MD5, SHA-1, SHA- |
| Expansion Slots: | 1 (total) / 1 (free) x Micro SIM card |
| Features: | Metal housing, power over Ethernet (PoE), Denial of Service (DoS) protection, Advanced Routing and Forwarding (ARF), SD-WAN support, Dynamic VLAN Support (GVRP), IGMP snooping, MLD snooping, Multicast routing, LLDP support, ARP lookup, proxy ARP, Quality |
| Form Factor: | Wall / DIN rail mountable |
| Generation: | 5G, 4G, 3G |
| Height: | 15.2 cm |
| Humidity Range Operating: | Up to 95% (non-condensing) |
| Included Accessories: | Wall mounting kit |
| Interfaces: | 4 x aerial - SMA ¦ 1 x 10/100/1000Base-T (PoE) - RJ-45 ¦ 1 x 10/100/1000Base-T - RJ-45 ¦ 1 x serial - USB-C |
| Localisation: | Europe |
| Manufacturer: | Lancom |
| Max Operating Temperature: | 50 °C |
| Min Operating Temperature: | -20 °C |
| Mobile Band: | UMTS B1/B2/B4/B5/B8/B19/ LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66/B71 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
| Mobile Broadband Access: | Yes |
| Mobile Communication Protocol: | LTE, UMTS, 5G, HSPA |
| Network / Transport Protocol: | ARP, BOOTP, DHCP, IPv4, IPv6, HTTP, HTTPs, Bonjour, DNS, NTP, PPPoE, RTP, TFTP, PPTP, L2TPv2, L2TPv3 |
| OS Provided: | LCOS 10.94 |
| Ports Qty: | 2 |
| Power Device: | External power adapter |
| Power Over Ethernet (PoE) Supported: | PoE |
| Remote Management Protocol: | RADIUS, ICMP, SNMP 2c, SNMP 1, SNMP 3, TFTP, SLAAC, Syslog |
| Routing Protocol: | VRRP, RIP-2, BGP-4, LISP, OSPFv2, IGMPv3, RIP-1, GRE |
| Version: | original |
| VoIP Protocols: | SIP ALG |
| Voltage Required: | AC 230 V |
| Weight: | 1 kg |
| Width: | 21 cm |
| GPSR - economic actor: | LANCOM Systems, Deutschland, Adenauerstraße 20, Würselen, 52146, info@lancom.de |
|---|---|
| GPSR - product manufacturer: | LANCOM Systems, Deutschland, Adenauerstraße 20, Würselen, 52146, info@lancom.de |
| GPSR - EU responsible person: | LANCOM Systems, Deutschland, Adenauerstraße 20, Würselen, 52146, info@lancom.de |
| EU Data-Act-Url: | https://www.lancom-systems.de/rechtliche-hinweise-und-datenschutz |
| Warnings: | Warnings Gateways International.pdf |
| Safety instructions: | Safety instructions Gateways International.pdf |
