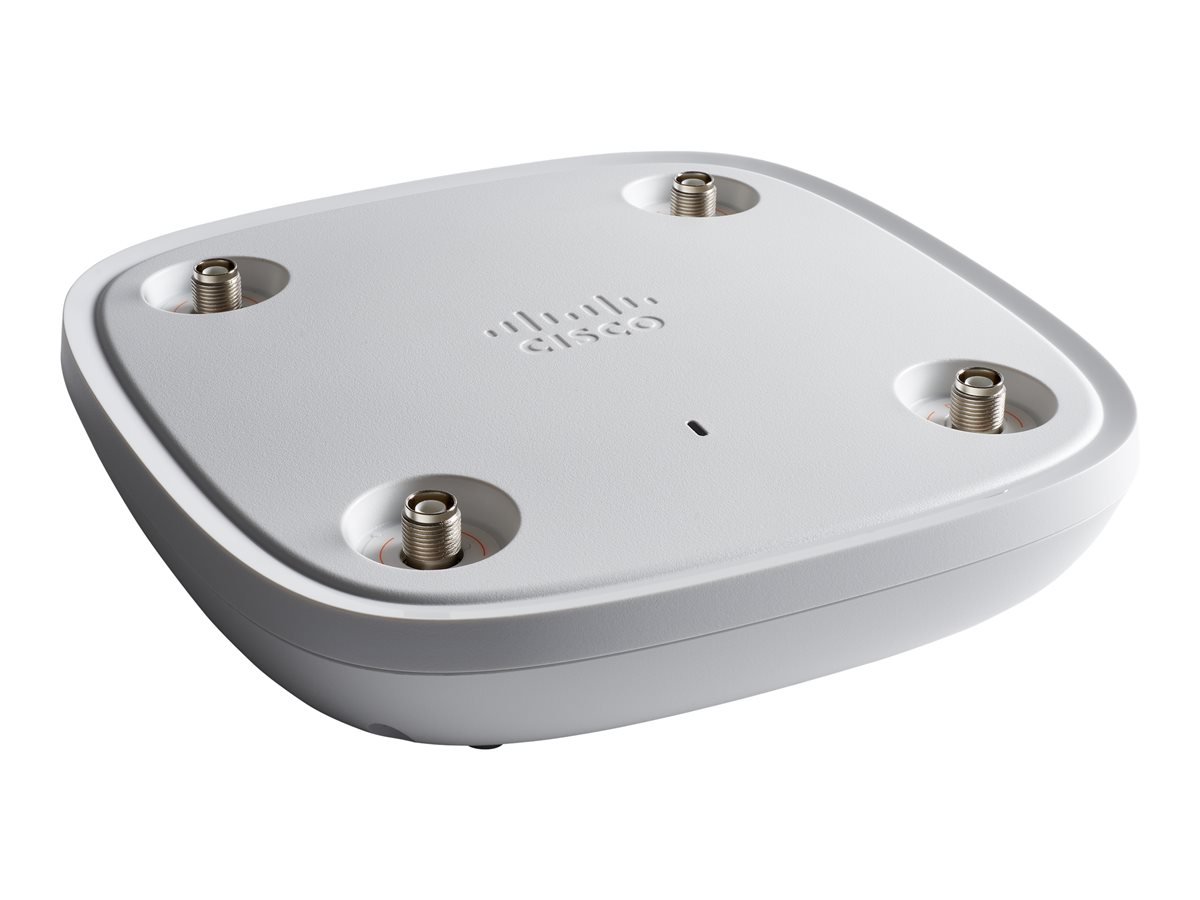

Cisco C9115AXE-EWC-T
Cisco Embedded Wireless Controller on C9115AX Access Point.
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco Embedded Wireless Controller on C9115AX Access Point.
| Authentication Method: | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
|---|---|
| Communications Technology: | Bluetooth Low Energy (LE) |
| Compliant Standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Compliant Standards: | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Depth: | 20.3 cm |
| Device Type: | Radio access point |
| Encryption Algorithm: | AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST |
| Features: | DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet |
| Flash Memory: | 1 GB |
| Form Factor: | External |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 4.3 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Low profile bracket, ceiling grid clip |
| Interfaces: | 1 x 1/2.5GBase-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 ¦ 4 x aerial |
| Internet of Things (IoT) Compatible: | Yes |
| Line Coding Format: | OFDMA |
| Localisation: | Taiwan |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Min Operating Temperature: | -20 °C |
| Network / Transport Protocol: | IPSec, IPv6 |
| Power Over Ethernet (PoE) Supported: | UPOE |
| RAM: | 2 GB |
| Remote Management Protocol: | NETCONF, RESTCONF |
| Ruggedized Design: | Indoor |
| Software Included: | Cisco Embedded Wireless Controller software image |
| Status Indicators: | Status |
| Version: | original |
| Weight: | 1.1 kg |
| Width: | 20.3 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
Cisco Embedded Wireless Controller on C9115AX Access Point.
| Authentication Method: | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
|---|---|
| Communications Technology: | Bluetooth Low Energy (LE) |
| Compliant Standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Compliant Standards: | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Depth: | 20.3 cm |
| Device Type: | Radio access point |
| Encryption Algorithm: | AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST |
| Features: | DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet |
| Flash Memory: | 1 GB |
| Form Factor: | External |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 4.3 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Low profile bracket, ceiling grid clip |
| Interfaces: | 1 x 1/2.5GBase-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 ¦ 4 x aerial |
| Internet of Things (IoT) Compatible: | Yes |
| Line Coding Format: | OFDMA |
| Localisation: | Taiwan |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Min Operating Temperature: | -20 °C |
| Network / Transport Protocol: | IPSec, IPv6 |
| Power Over Ethernet (PoE) Supported: | UPOE |
| RAM: | 2 GB |
| Remote Management Protocol: | NETCONF, RESTCONF |
| Ruggedized Design: | Indoor |
| Software Included: | Cisco Embedded Wireless Controller software image |
| Status Indicators: | Status |
| Version: | original |
| Weight: | 1.1 kg |
| Width: | 20.3 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
