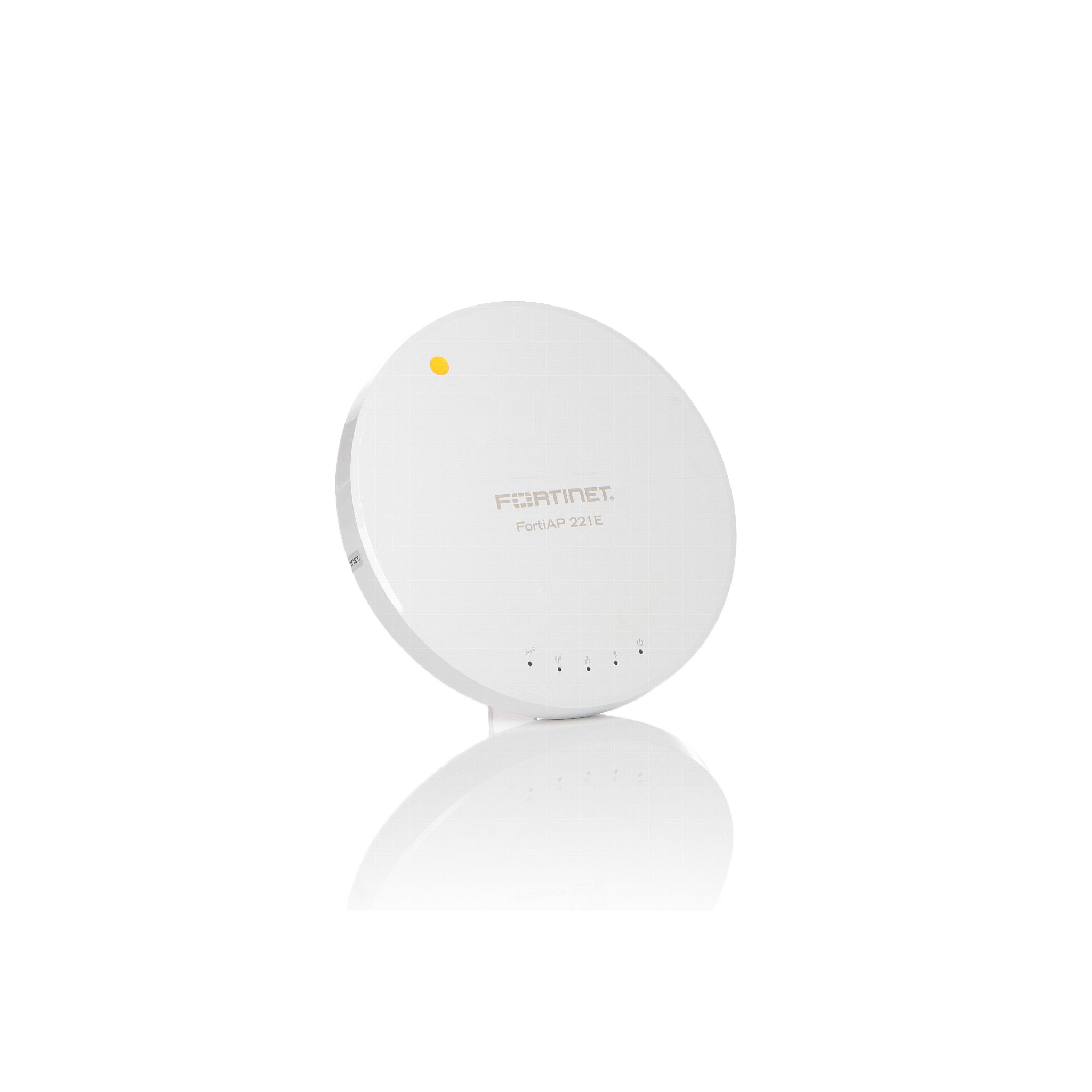

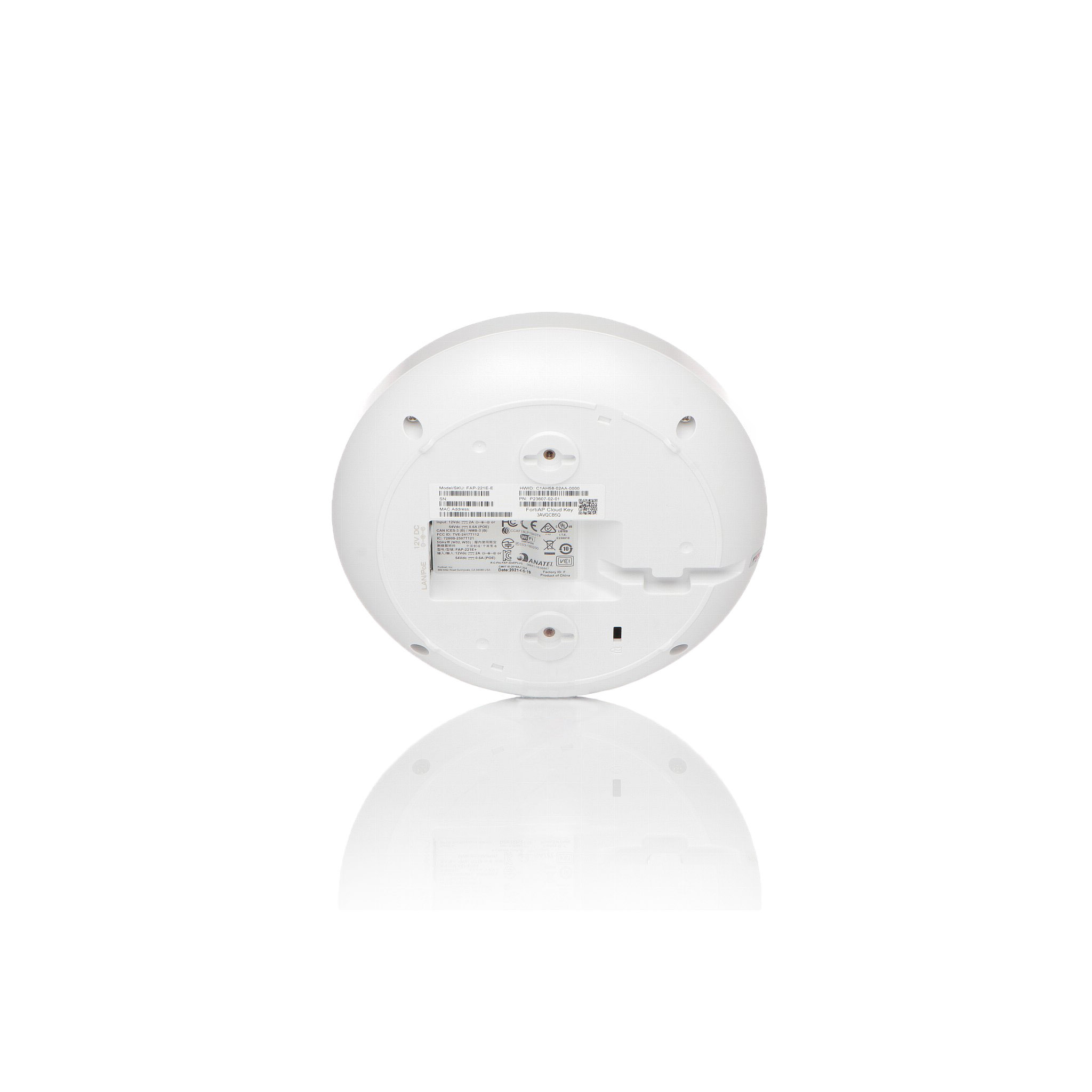

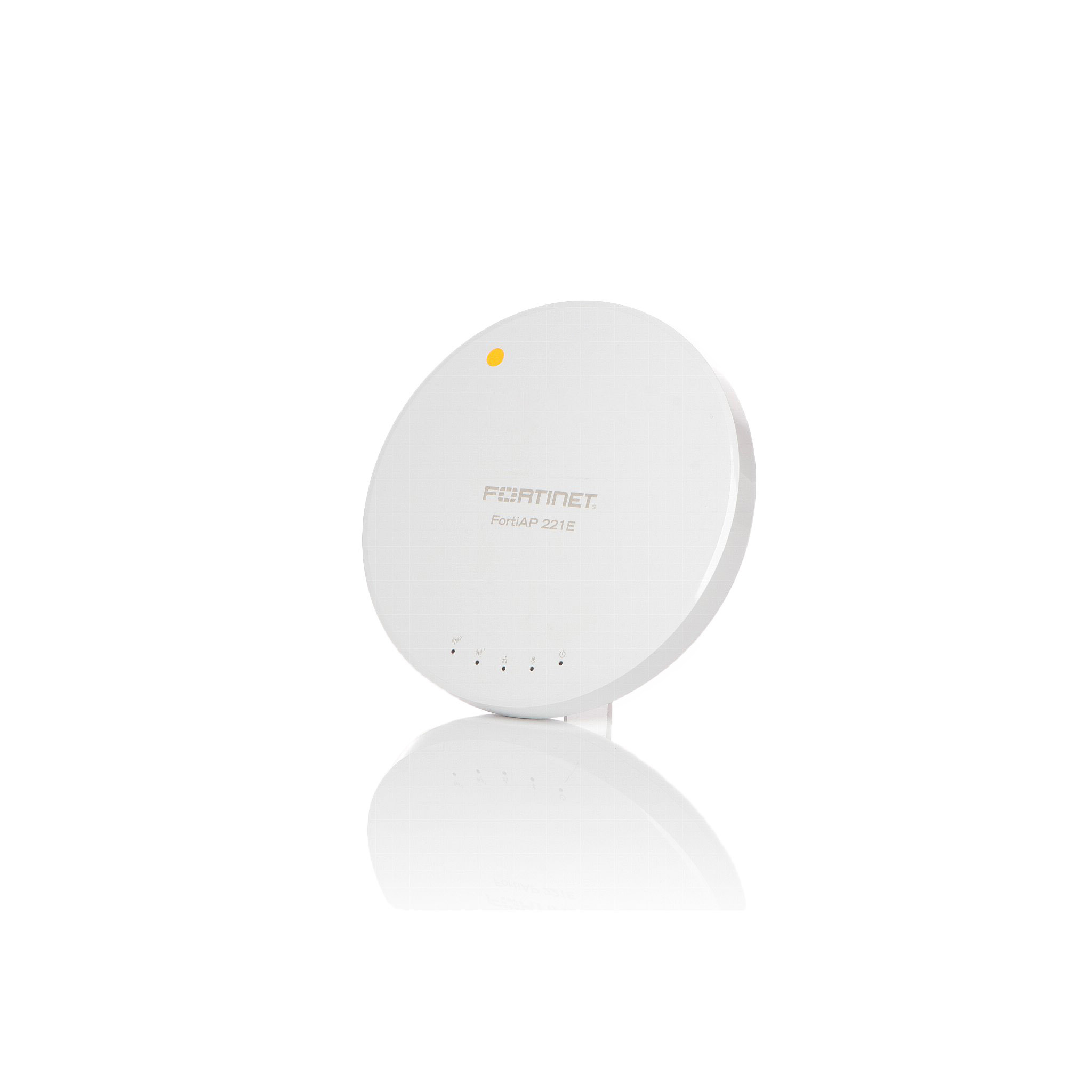

Fortinet FAP-221E
Fortinet FortiAP 221E - Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Fortinet FortiAP 221E - Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz
| Antenna: | Internal |
|---|---|
| Antenna Qty: | 4 |
| Authentication Method: | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA |
| Capacity: | Maximum number of configured SSIDs: 16 ¦ Concurrent users per radio: 512 |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11j, IEEE 802.3az, IEEE 802.11r, IEEE 802.11x, IEEE 802.11v, IEEE 802.11ac W |
| Compliant Standards: | IC, UL 2043, RoHS, LVD |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Data Transfer Rate: | 867 Mbps |
| Depth: | 16 cm |
| Device Type: | Radio access point |
| Encryption Algorithm: | TLS, PEAP, TTLS, WPA, WPA2, WEP, WPA3 |
| Features: | Wall mountable, Mesh networking, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, ceiling mountable, Maximum Likelihood Demodulation (MLD), security lock slot (cable lock sold separately), Bluetooth Low E |
| Form Factor: | External |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Gain Level: | 5 dBi |
| Height: | 4.7 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Included Accessories: | Wall mounting kit, ceiling mounting kit, T-Rail mounting kit |
| Interfaces: | 1 x 1000Base-T (PoE) - RJ-45 |
| Line Coding Format: | 256 QAM |
| MTBF: | 30 years |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 45 °C |
| Min Operating Temperature: | -20 °C |
| Performance: | Maximum throughput (2.4 GHz): 400 Mbps ¦ Maximum throughput (5 GHz): 867 Mbps |
| Power Consumption Operational: | 12.36 Watt |
| Power Over Ethernet (PoE) Supported: | PoE |
| Ruggedized Design: | Indoor |
| Shipping Weight: | 2.2 kg |
| Version: | original |
| Weight: | 500 g |
| Width: | 16 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
