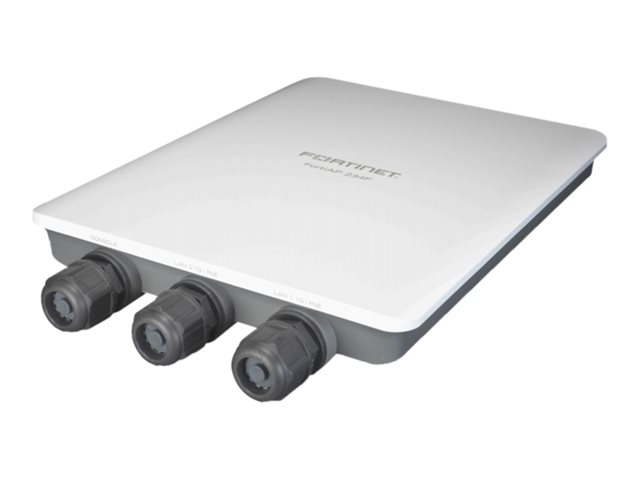

Fortinet FAP-234F
Fortinet FortiAP 234F - Wireless access point - ZigBee - Bluetooth, ZigBee, Wi-Fi 6 - 2.4 GHz, 5 GHz
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Fortinet FortiAP 234F - Wireless access point - ZigBee - Bluetooth, ZigBee, Wi-Fi 6 - 2.4 GHz, 5 GHz
| Antenna: | Internal |
|---|---|
| Antenna Qty: | 3 |
| Authentication Method: | EAP-TLS, EAP-TTLS, MS-CHAP v.2, PEAPv0, PEAPv1, EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP) |
| Capacity: | Wireless clients per Wi-Fi radio: up to 512 |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Compliant Standards: | EU Low Voltage Directive, RoHS, IP67, FCC |
| Compliant Standards: | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEE |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 LE, ZigBee |
| Depth: | 31.6 cm |
| Device Type: | Radio access point |
| Directivity: | Directional |
| Encryption Algorithm: | WPA, WPA2, WPA3, WEP, TLS, TTLS |
| Features: | 2x2 MU-MIMO technology, iBeacon technology, auto-uplink (auto MDI/MDI-X), 802.1x authentication, Captive Portal, MAC black/whitelist, Cellular Coexistence Filter (CCF), LED off mode, BSS Coloring, uplink/downlink MU-MIMO, Target Wake Time (TWT), rogue acc |
| Form Factor: | Wall / pole mountable |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 4.2 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Pole/wall mount kit |
| Interfaces: | 2 x 1000Base-T - RJ-45 ¦ 1 x RS-232 - RJ-45 |
| Internet of Things (IoT) Compatible: | Yes |
| Line Coding Format: | BPSK, QPSK, 64 QAM, 256 QAM, 1024 QAM, OFDMA |
| Localisation: | Philippines, Singapore, Macao, Malaysia, Vietnam |
| MTBF: | >10 years |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 60 °C |
| Min Operating Temperature: | -40 °C |
| Performance: | Maximum throughput (2.4 GHz): 574 Mbps ¦ Maximum throughput (5 GHz): 1201 Mbps |
| Power Device: | Power injector |
| Power Over Ethernet (PoE) Supported: | PoE |
| Ruggedized Design: | Indoor, outdoor |
| Shipping Weight: | 3.6 kg |
| Spread Spectrum Method: | OFDMA |
| Version: | original |
| Weight: | 1.307 kg |
| Width: | 21.8 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
Fortinet FortiAP 234F - Wireless access point - ZigBee - Bluetooth, ZigBee, Wi-Fi 6 - 2.4 GHz, 5 GHz
| Antenna: | Internal |
|---|---|
| Antenna Qty: | 3 |
| Authentication Method: | EAP-TLS, EAP-TTLS, MS-CHAP v.2, PEAPv0, PEAPv1, EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP) |
| Capacity: | Wireless clients per Wi-Fi radio: up to 512 |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Compliant Standards: | EU Low Voltage Directive, RoHS, IP67, FCC |
| Compliant Standards: | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEE |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 LE, ZigBee |
| Depth: | 31.6 cm |
| Device Type: | Radio access point |
| Directivity: | Directional |
| Encryption Algorithm: | WPA, WPA2, WPA3, WEP, TLS, TTLS |
| Features: | 2x2 MU-MIMO technology, iBeacon technology, auto-uplink (auto MDI/MDI-X), 802.1x authentication, Captive Portal, MAC black/whitelist, Cellular Coexistence Filter (CCF), LED off mode, BSS Coloring, uplink/downlink MU-MIMO, Target Wake Time (TWT), rogue acc |
| Form Factor: | Wall / pole mountable |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 4.2 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Pole/wall mount kit |
| Interfaces: | 2 x 1000Base-T - RJ-45 ¦ 1 x RS-232 - RJ-45 |
| Internet of Things (IoT) Compatible: | Yes |
| Line Coding Format: | BPSK, QPSK, 64 QAM, 256 QAM, 1024 QAM, OFDMA |
| Localisation: | Philippines, Singapore, Macao, Malaysia, Vietnam |
| MTBF: | >10 years |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 60 °C |
| Min Operating Temperature: | -40 °C |
| Performance: | Maximum throughput (2.4 GHz): 574 Mbps ¦ Maximum throughput (5 GHz): 1201 Mbps |
| Power Device: | Power injector |
| Power Over Ethernet (PoE) Supported: | PoE |
| Ruggedized Design: | Indoor, outdoor |
| Shipping Weight: | 3.6 kg |
| Spread Spectrum Method: | OFDMA |
| Version: | original |
| Weight: | 1.307 kg |
| Width: | 21.8 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
