Fortinet FAP-U234F

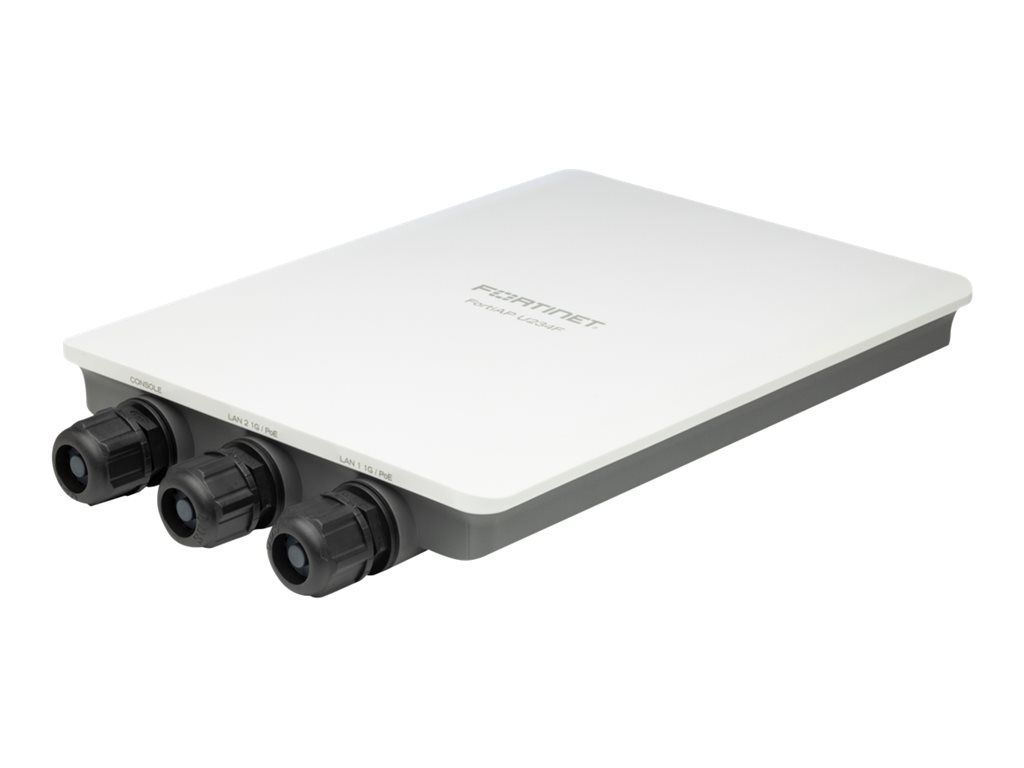

Fortinet FortiAP U234F - Wireless access point - ZigBee - Bluetooth, ZigBee, Wi-Fi 6 - 2.4 GHz (1 band) / 5 GHz (2 bands)
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Fortinet FortiAP U234F - Wireless access point - ZigBee - Bluetooth, ZigBee, Wi-Fi 6 - 2.4 GHz (1 band) / 5 GHz (2 bands)
| Antenna: | Internal |
|---|---|
| Antenna Qty: | 5 |
| Authentication Method: | Radio Service Set ID (SSID), PEAPv0, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA, EAP-GTC, EAP-TLS, EAP-TTLS |
| Capacity: | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: up to 512 |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Compliant Standards: | IEEE 802.3bt, IEEE 802.1x, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEE |
| Compliant Standards: | RoHS, IP67, EU Low Voltage Directive, FCC, IC |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | Gigabit Ethernet, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6), ZigBee, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Fast Ethernet |
| Depth: | 31.618 cm |
| Device Type: | Radio access point |
| Directivity: | Directional |
| Encryption Algorithm: | EAP-AKA, EAP-FAST, EAP-GTC, EAP-MSCHAPv2, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAPv1, WPA, WPA2, WPA3, WEP |
| Features: | 2x2 MIMO technology, MAC black/whitelist, Cellular Coexistence Filter (CCF), Transmit Beam-forming (TxBF) ready, BSS Coloring, Low Density Parity Check (LDPC), Maximum Likelihood Demodulation (MLD), Maximum Ratio Combining (MRC), packet aggregation A-MPDU |
| Form Factor: | Wall / pole mountable |
| Frequency Band: | 2.4 GHz (1 band) / 5 GHz (2 bands) |
| Height: | 4.221 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Pole/wall mount kit, grounding cable, power cable |
| Interfaces: | 1 x 100/1000/2500Base-T - RJ-45 ¦ 1 x 10/100/1000Base-T (PoE) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 |
| Internet of Things (IoT) Compatible: | Yes |
| Line Coding Format: | OFDMA, 64 QAM, 256 QAM, 1024 QAM |
| MTBF: | >10 years |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 60 °C |
| Min Operating Temperature: | -40 °C |
| Performance: | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Power Device: | Power injector |
| Power Over Ethernet (PoE) Supported: | PoE |
| Ruggedized Design: | Outdoor |
| Shipping Weight: | 3.6 kg |
| Spread Spectrum Method: | OFDMA |
| Version: | original |
| Weight: | 1.207 kg |
| Width: | 21.816 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
Fortinet FortiAP U234F - Wireless access point - ZigBee - Bluetooth, ZigBee, Wi-Fi 6 - 2.4 GHz (1 band) / 5 GHz (2 bands)
| Antenna: | Internal |
|---|---|
| Antenna Qty: | 5 |
| Authentication Method: | Radio Service Set ID (SSID), PEAPv0, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA, EAP-GTC, EAP-TLS, EAP-TTLS |
| Capacity: | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: up to 512 |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Compliant Standards: | IEEE 802.3bt, IEEE 802.1x, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEE |
| Compliant Standards: | RoHS, IP67, EU Low Voltage Directive, FCC, IC |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | Gigabit Ethernet, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6), ZigBee, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Fast Ethernet |
| Depth: | 31.618 cm |
| Device Type: | Radio access point |
| Directivity: | Directional |
| Encryption Algorithm: | EAP-AKA, EAP-FAST, EAP-GTC, EAP-MSCHAPv2, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAPv1, WPA, WPA2, WPA3, WEP |
| Features: | 2x2 MIMO technology, MAC black/whitelist, Cellular Coexistence Filter (CCF), Transmit Beam-forming (TxBF) ready, BSS Coloring, Low Density Parity Check (LDPC), Maximum Likelihood Demodulation (MLD), Maximum Ratio Combining (MRC), packet aggregation A-MPDU |
| Form Factor: | Wall / pole mountable |
| Frequency Band: | 2.4 GHz (1 band) / 5 GHz (2 bands) |
| Height: | 4.221 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Pole/wall mount kit, grounding cable, power cable |
| Interfaces: | 1 x 100/1000/2500Base-T - RJ-45 ¦ 1 x 10/100/1000Base-T (PoE) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 |
| Internet of Things (IoT) Compatible: | Yes |
| Line Coding Format: | OFDMA, 64 QAM, 256 QAM, 1024 QAM |
| MTBF: | >10 years |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 60 °C |
| Min Operating Temperature: | -40 °C |
| Performance: | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Power Device: | Power injector |
| Power Over Ethernet (PoE) Supported: | PoE |
| Ruggedized Design: | Outdoor |
| Shipping Weight: | 3.6 kg |
| Spread Spectrum Method: | OFDMA |
| Version: | original |
| Weight: | 1.207 kg |
| Width: | 21.816 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
