Meraki MR84-HW

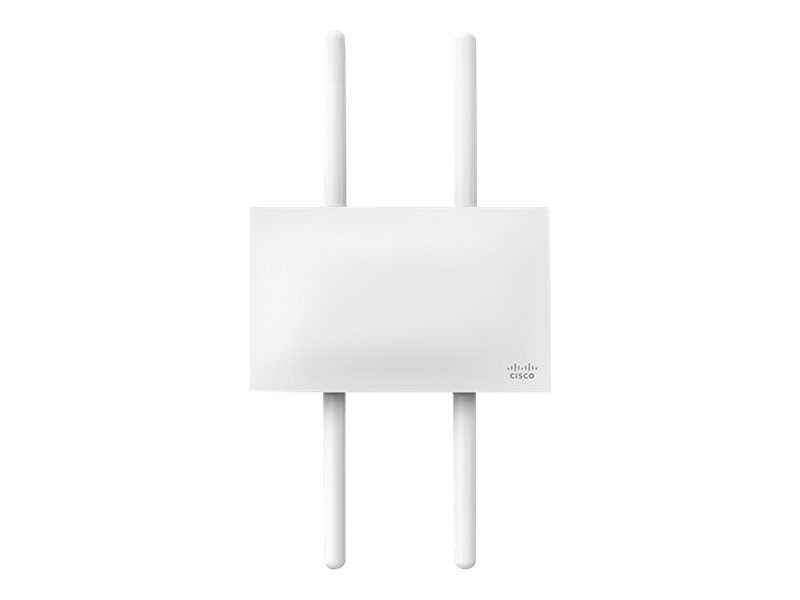

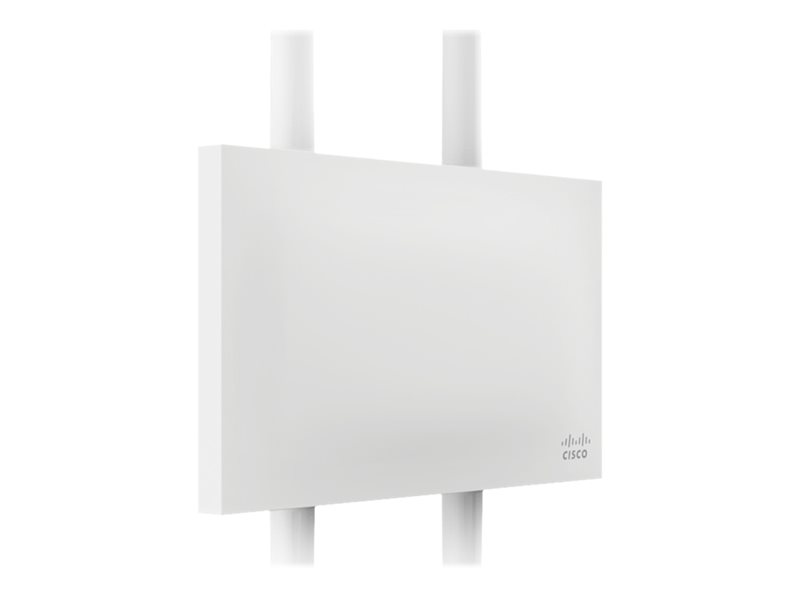

Meraki MR84 Cloud Managed AP
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Meraki MR84 Cloud Managed AP
| Authentication Method: | Radio Service Set ID (SSID), MS-CHAP v.2, Active Directory |
|---|---|
| Cloud-Managed: | Yes |
| Compliant Standards: | IP67 |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Data Transfer Rate: | 2.5 Gbps |
| Depth: | 17.6 cm |
| Device Type: | Radio access point |
| Encryption Algorithm: | AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP |
| Features: | Firewall protection, antivirus analysis, firmware upgradable, wall mountable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), pole mountable, Maximum Ratio Combining (MRC), rogue access point detection |
| Form Factor: | External |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 18.5 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Important product information: | UNCLAIMED Device without license. Please contact us if you have any questions. |
| Included Accessories: | Pole mount, wall mounting kit, security screw, concealed mount plate |
| Interfaces: | 1 x 1000Base-T (PoE+) - RJ-45 (WAN) ¦ 1 x 2.5 GBase-T (PoE+) - RJ-45 (WAN) ¦ 4 x aerial - N connector |
| Line Coding Format: | 256 QAM |
| Manufacturer: | Meraki Cisco |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | -40 °C |
| Network / Transport Protocol: | IPSec |
| Power Consumption Operational: | 21 Watt |
| Power Over Ethernet (PoE) Supported: | PoE+ |
| Ruggedized Design: | Outdoor |
| Version: | original |
| Weight: | 1.7 kg |
| Width: | 28.6 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
Important product information
UNCLAIMED Device without license. Please contact us if you have any questions.
