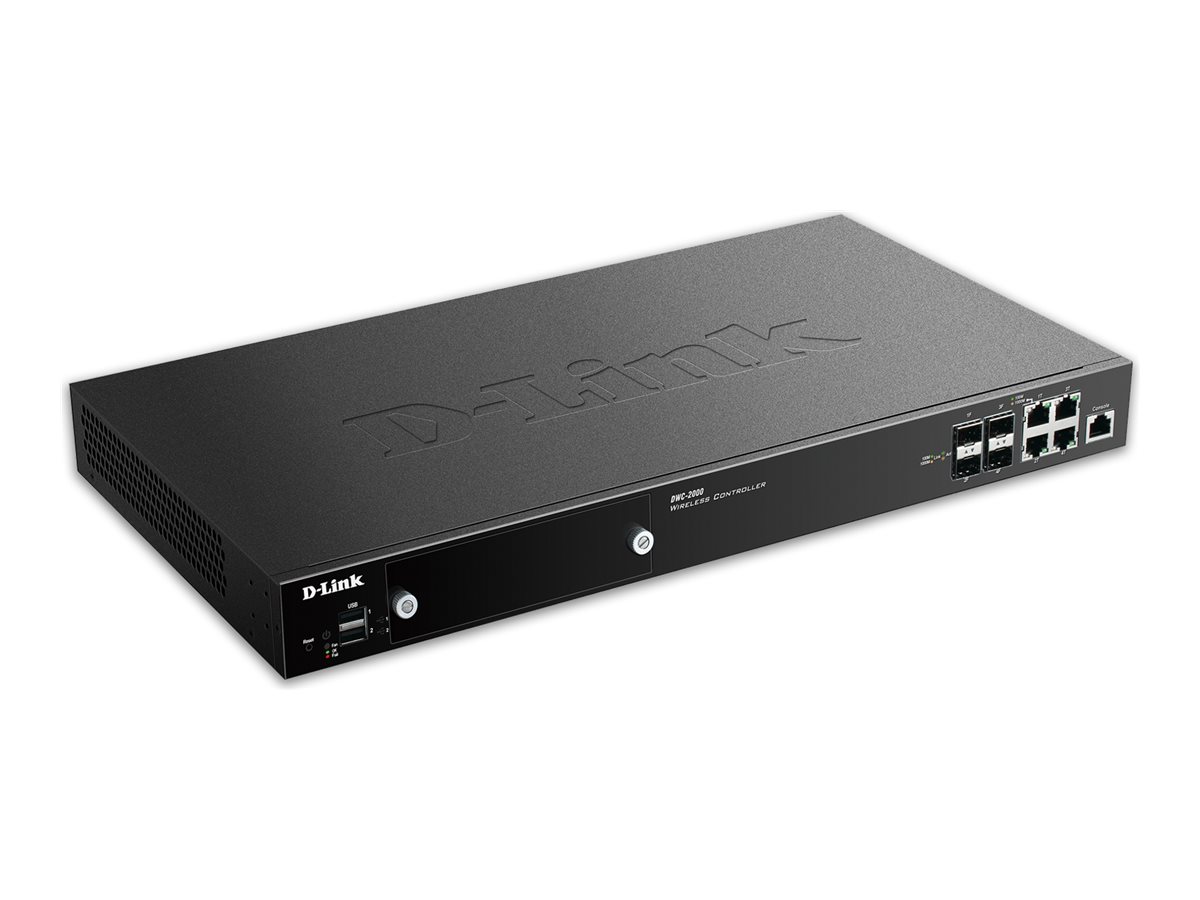

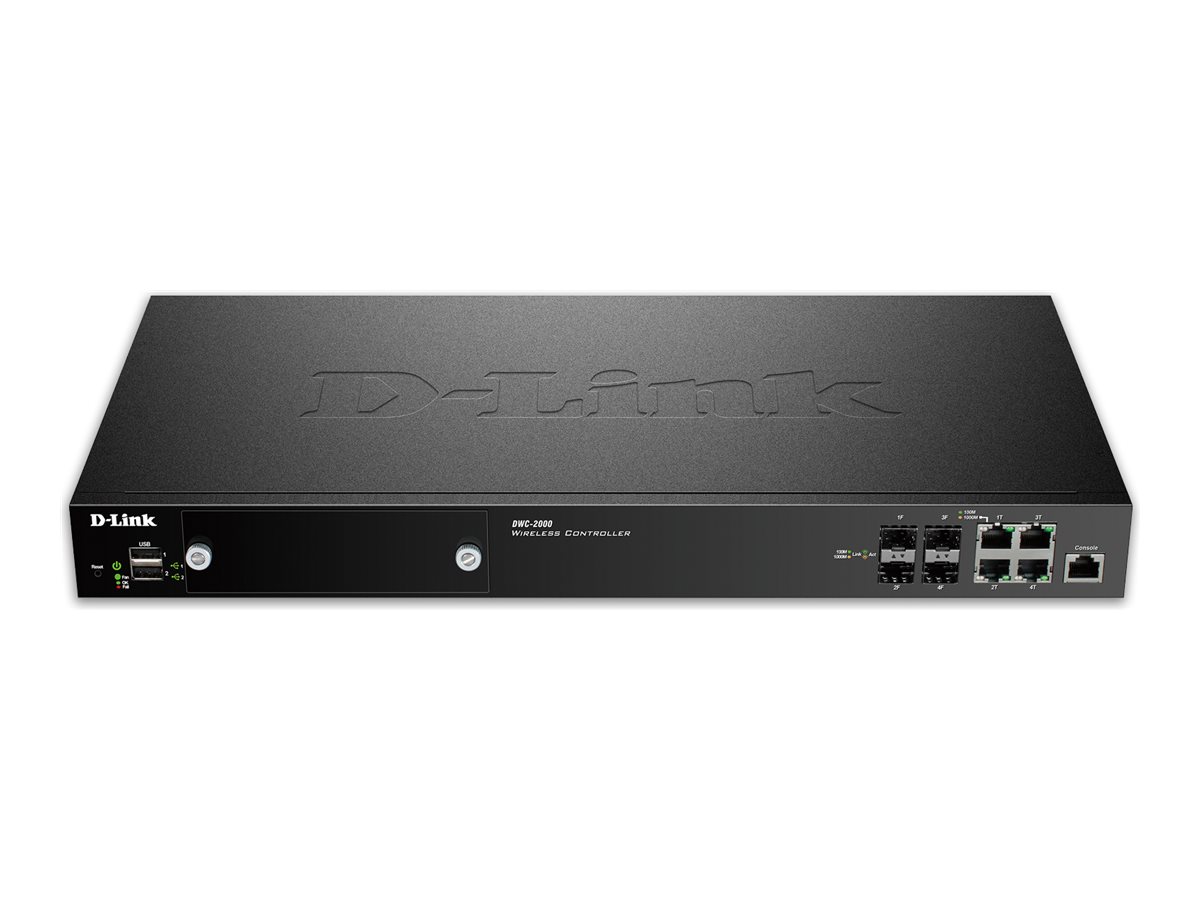

D-Link DWC-2000
Unified Wireless Controller With 64 AP License
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Unified Wireless Controller With 64 AP License
| Authentication Method: | RADIUS, LDAP, internal user database, Active Directory |
|---|---|
| Cables Included: | 1 x console cable ¦ 1 x network cable - 91 cm |
| Capacity: | Maximum number of access points (per unit): 64 ¦ Maximum number of access points (per cluster): 256 ¦ Concurrent users: 3072 ¦ Virtual interfaces (VLANs): up to 255 |
| Compliant Standards: | FCC Class A certified, C-Tick, cUL, IC, EN 60950-1, LVD |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1x |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 31 cm |
| Device Type: | Network management device |
| Encryption Algorithm: | 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, AES-CCMP, WPA-Enterprise, WPA2-Enterprise |
| Expansion Slots: | 1 (total) / 1 (free) x expansion slot |
| Features: | Flow control, VLAN support, IGMP snooping, Syslog support, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, Wireless Intrusion Detection System (WIDS), Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), |
| Form Factor: | External |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | Mounting brackets |
| Interfaces: | 4 x 1000Base-T - RJ-45 ¦ 4 x - SFP (mini-GBIC) ¦ 2 x USB 2.0 - Type A ¦ 1 x console - RJ-45 |
| Manufacturer: | D-Link |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Ports Qty: | 4 |
| Power Consumption Operational: | 26.95 Watt |
| Power Device: | Internal power supply |
| Remote Management Protocol: | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Routing Protocol: | Static IPv4 routing, static IPv6 routing |
| Status Indicators: | Power, link OK, link/activity, fan |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Width: | 44 cm |
| GPSR - economic actor: | D-Link, Deutschland, Schwalbacher Str. 74, Eschborn, 65760, dce-sales@dlink.com |
|---|---|
| GPSR - product manufacturer: | D-Link, Deutschland, Schwalbacher Str. 74, Eschborn, 65760, dce-sales@dlink.com |
| GPSR - EU responsible person: | D-Link, Deutschland, Schwalbacher Str. 74, Eschborn, 65760, dce-sales@dlink.com |
| Warnings: | Warnings Controller International.pdf |
| Safety instructions: | Safety instructions Controller International.pdf |
Unified Wireless Controller With 64 AP License
| Authentication Method: | RADIUS, LDAP, internal user database, Active Directory |
|---|---|
| Cables Included: | 1 x console cable ¦ 1 x network cable - 91 cm |
| Capacity: | Maximum number of access points (per unit): 64 ¦ Maximum number of access points (per cluster): 256 ¦ Concurrent users: 3072 ¦ Virtual interfaces (VLANs): up to 255 |
| Compliant Standards: | FCC Class A certified, C-Tick, cUL, IC, EN 60950-1, LVD |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1x |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 31 cm |
| Device Type: | Network management device |
| Encryption Algorithm: | 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, AES-CCMP, WPA-Enterprise, WPA2-Enterprise |
| Expansion Slots: | 1 (total) / 1 (free) x expansion slot |
| Features: | Flow control, VLAN support, IGMP snooping, Syslog support, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, Wireless Intrusion Detection System (WIDS), Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), |
| Form Factor: | External |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | Mounting brackets |
| Interfaces: | 4 x 1000Base-T - RJ-45 ¦ 4 x - SFP (mini-GBIC) ¦ 2 x USB 2.0 - Type A ¦ 1 x console - RJ-45 |
| Manufacturer: | D-Link |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Ports Qty: | 4 |
| Power Consumption Operational: | 26.95 Watt |
| Power Device: | Internal power supply |
| Remote Management Protocol: | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Routing Protocol: | Static IPv4 routing, static IPv6 routing |
| Status Indicators: | Power, link OK, link/activity, fan |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Width: | 44 cm |
| GPSR - economic actor: | D-Link, Deutschland, Schwalbacher Str. 74, Eschborn, 65760, dce-sales@dlink.com |
|---|---|
| GPSR - product manufacturer: | D-Link, Deutschland, Schwalbacher Str. 74, Eschborn, 65760, dce-sales@dlink.com |
| GPSR - EU responsible person: | D-Link, Deutschland, Schwalbacher Str. 74, Eschborn, 65760, dce-sales@dlink.com |
