Lenovo 4XC7A08229

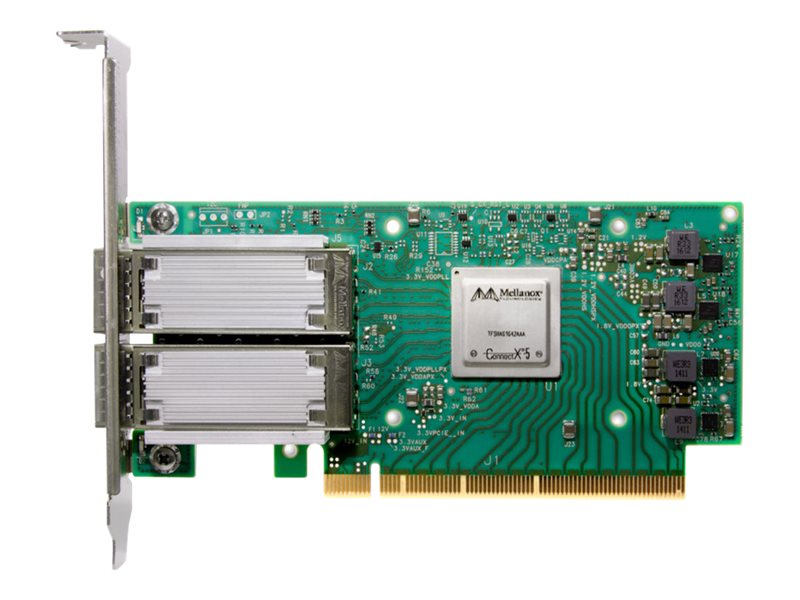

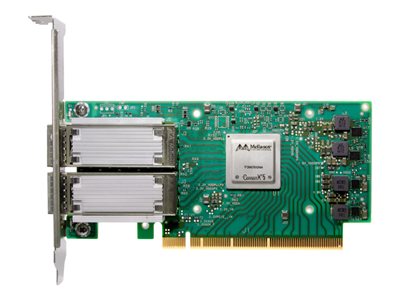

ThinkSystem Mellanox ConnectX-5 Ex 25/40GbE 2-port Low-Latency Adapter
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ThinkSystem Mellanox ConnectX-5 Ex 25/40GbE 2-port Low-Latency Adapter
| Capacity: | Jumbo frame size: 9.6 KB ¦ Virtual functions: 1000 ¦ Physical functions per port: 16 |
|---|---|
| Compliant Standards: | VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1149.1, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by, IEEE 1149.6 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, Spatial Reuse Protocol (SRP), 40 Gigabit Ethernet, 25 Gigabit Ethernet |
| Data Transfer Rate: | 40 Gbps |
| Depth: | 14.2 cm |
| Designed For: | Lenovo ThinkAgile HX2320 Appliance 7X83 ¦ Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 ¦ Lenovo ThinkSystem SD530 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSy |
| Device Type: | Network adapter |
| Features: | MPLS support, TCP/IP offloading, Quality of Service (QoS), PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Energy Efficient Ethernet, Advanced Error Rep |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.9 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Low-profile bracket, full-height bracket |
| Interface (Bus) Type: | PCI Express 4.0 x16 |
| Interfaces: | 2 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet/40Gb Ethernet - QSFP28 |
| Manufacturer: | Lenovo |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | SMB, NFS |
| OS Required: | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise S |
| Ports: | Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet / 40Gb Ethernet QSFP28 x 2 |
| Processor: | 1 x Mellanox ConnectX-4 |
| Version: | original |
| GPSR - economic actor: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
|---|---|
| GPSR - product manufacturer: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| GPSR - EU responsible person: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| Warnings: | Warnings Adapter PCI International.pdf |
| Safety instructions: | Safety instructions Adapter PCI International.pdf |
ThinkSystem Mellanox ConnectX-5 Ex 25/40GbE 2-port Low-Latency Adapter
| Capacity: | Jumbo frame size: 9.6 KB ¦ Virtual functions: 1000 ¦ Physical functions per port: 16 |
|---|---|
| Compliant Standards: | VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1149.1, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by, IEEE 1149.6 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, Spatial Reuse Protocol (SRP), 40 Gigabit Ethernet, 25 Gigabit Ethernet |
| Data Transfer Rate: | 40 Gbps |
| Depth: | 14.2 cm |
| Designed For: | Lenovo ThinkAgile HX2320 Appliance 7X83 ¦ Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 ¦ Lenovo ThinkSystem SD530 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSy |
| Device Type: | Network adapter |
| Features: | MPLS support, TCP/IP offloading, Quality of Service (QoS), PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Energy Efficient Ethernet, Advanced Error Rep |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.9 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Low-profile bracket, full-height bracket |
| Interface (Bus) Type: | PCI Express 4.0 x16 |
| Interfaces: | 2 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet/40Gb Ethernet - QSFP28 |
| Manufacturer: | Lenovo |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | SMB, NFS |
| OS Required: | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise S |
| Ports: | Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet / 40Gb Ethernet QSFP28 x 2 |
| Processor: | 1 x Mellanox ConnectX-4 |
| Version: | original |
| GPSR - economic actor: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
|---|---|
| GPSR - product manufacturer: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| GPSR - EU responsible person: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
