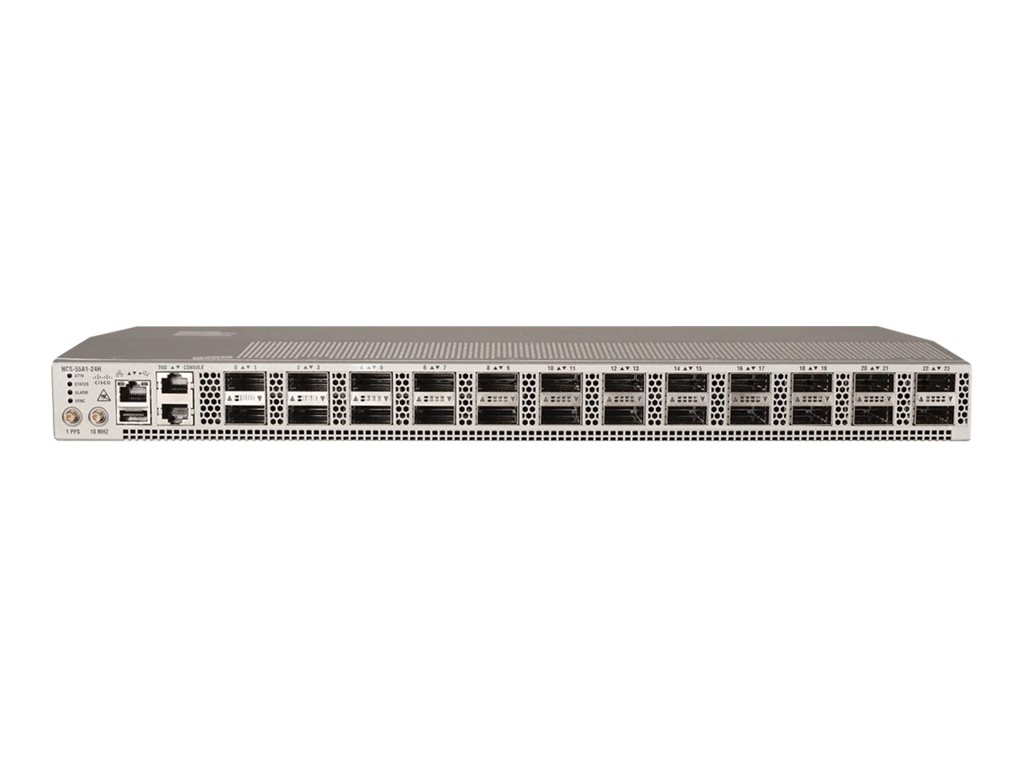

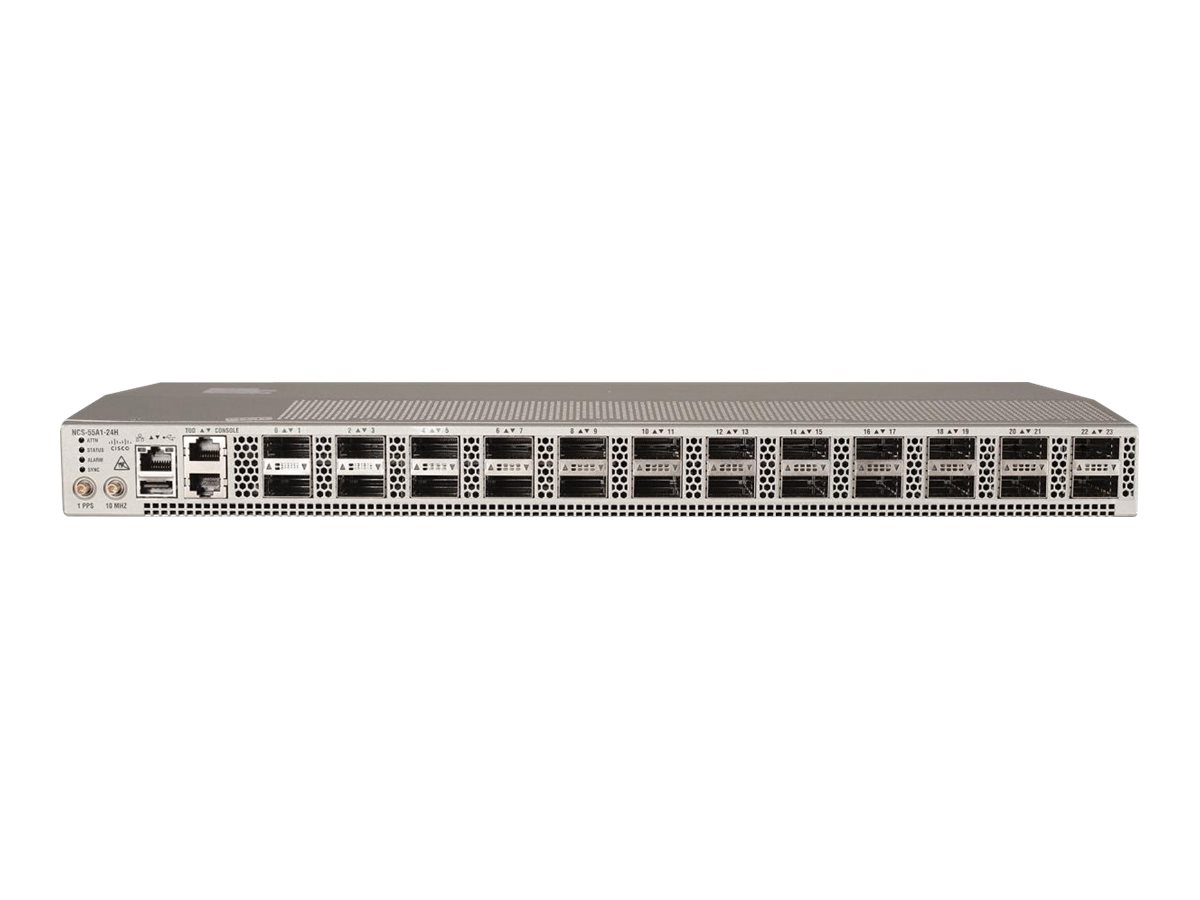

Cisco NCS-55A1-24H-DTC
NCS55A1 Fixed 24x100G chassis for DC
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
NCS55A1 Fixed 24x100G chassis for DC
| Authentication Method: | TACACS+ |
|---|---|
| Compliant Standards: | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ad, IEEE 802.1ae, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS 6/6, GB 4943, Directive 2004/108/EC, EN 609 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 100 Gigabit Ethernet |
| Depth: | 55.12 cm |
| Device Type: | Router |
| Enclosure Type: | Rack-mountable - 1U |
| Encryption Algorithm: | AES |
| Features: | RPL support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, IP Precedence, LACP support, Management Information Base (MIB), MACsec support, Label Distribution Protocol (LDP), iPXE, 3 fan trays, Authentication, Authori |
| <a class="lexicon-tooltip cbax-lexicon-link" data-bs-toggle="tooltip" title="The hard drive, also called hard disk or hard disk drive (HDD), is a storage medium that works on a magnetic basis." data-bs-placement="top" data-bs-html="true" data-bs-template="<div class='tooltip' role='tooltip'><div class='arrow'></div><div class='tooltip-inner cbax-lexicon-tooltip-inner'></div></div>">Hard Drive</a>: | 128 GB |
| Height: | 4.36 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Installed Qty: | 2 (installed) / 2 (max) |
| Interfaces: | LAN: 24 x 100Gb Ethernet - QSFP+ ¦ USB: 1 x ¦ Console: 1 x RJ-45 ¦ Management: 1 x RJ-45 |
| Jumbo Frame Support: | 9216 bytes |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| OS Required: | Cisco IOS XR 6.3.1 |
| Performance: | Throughput: 1.8 Tbps ¦ Route scale: up to 2M FIB entries |
| Power Consumption Operational: | 800 Watt |
| Power Device: | Internal power supply |
| Power <a class="lexicon-tooltip cbax-lexicon-link" data-bs-toggle="tooltip" title="Redundancy means that data, information, or things that are comparable with each other are available several times (at least twice). " data-bs-placement="top" data-bs-html="true" data-bs-template="<div class='tooltip' role='tooltip'><div class='arrow'></div><div class='tooltip-inner cbax-lexicon-tooltip-inner'></div></div>">Redundancy</a>: | Yes |
| Processor: | 1.6 GHz |
| <a class="lexicon-tooltip cbax-lexicon-link" data-bs-toggle="tooltip" title="A RAM memory ("Read Access Memory") is a random-access memory. " data-bs-placement="top" data-bs-html="true" data-bs-template="<div class='tooltip' role='tooltip'><div class='arrow'></div><div class='tooltip-inner cbax-lexicon-tooltip-inner'></div></div>">RAM</a>: | 32 GB |
| Remote Management Protocol: | SNMP 3, SSH |
| Routing Protocol: | IS-IS, BGP, HSRP, OSPFv2, static IP routing, OSPFv3, ECMP, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD) |
| Service & Support: | Lamp replacement - advance parts replacement - 1 year - response time: 10 days |
| Version: | original |
| Weight: | 10.89 kg |
| Width: | 43.94 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
