| Authentication Method: | RADIUS |
|---|---|
| Compliant Standards: | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 6100 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 23 cm |
| Device Type: | Router - 8-port switch (integrated) |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Features: | Power over Ethernet (PoE), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combini |
| Flash Memory: | 4 GB |
| Height: | 4.2 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |

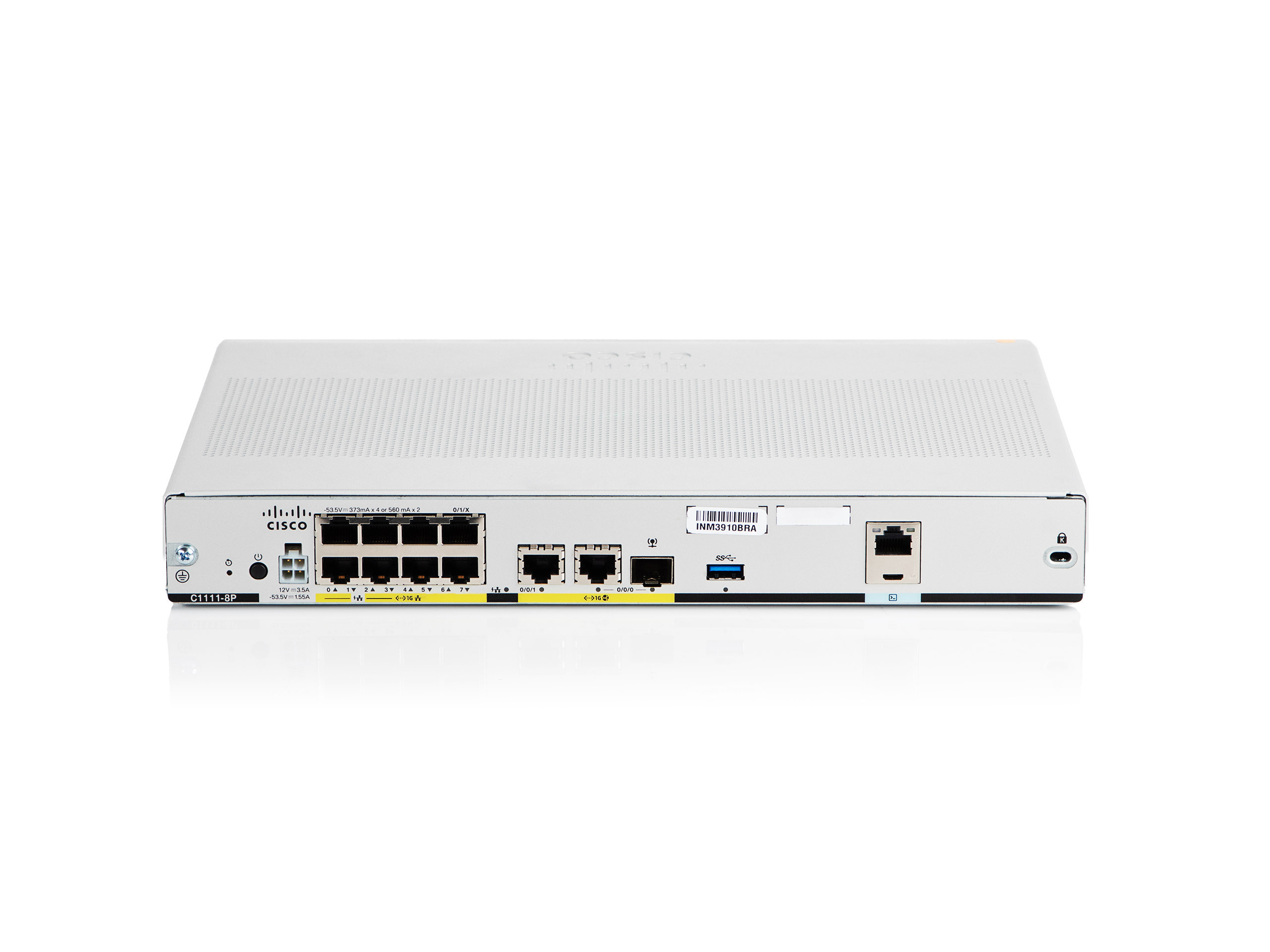

| Interfaces: | WAN / LAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ WAN: 1 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 4 x 1000Base-T (PoE) - RJ-45 ¦ USB 3.0: 1 x console |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 65 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| OS Provided: | Cisco IOS XE Universal |
| Performance: | Encryption throughput: 250 Mbps |
| Power Consumption Operational: | 66 Watt |
| Power Device: | External power adapter |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP, RMON, CLI, TR-069 |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Status Indicators: | Status |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 2.59 kg |
| Width: | 32.3 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
