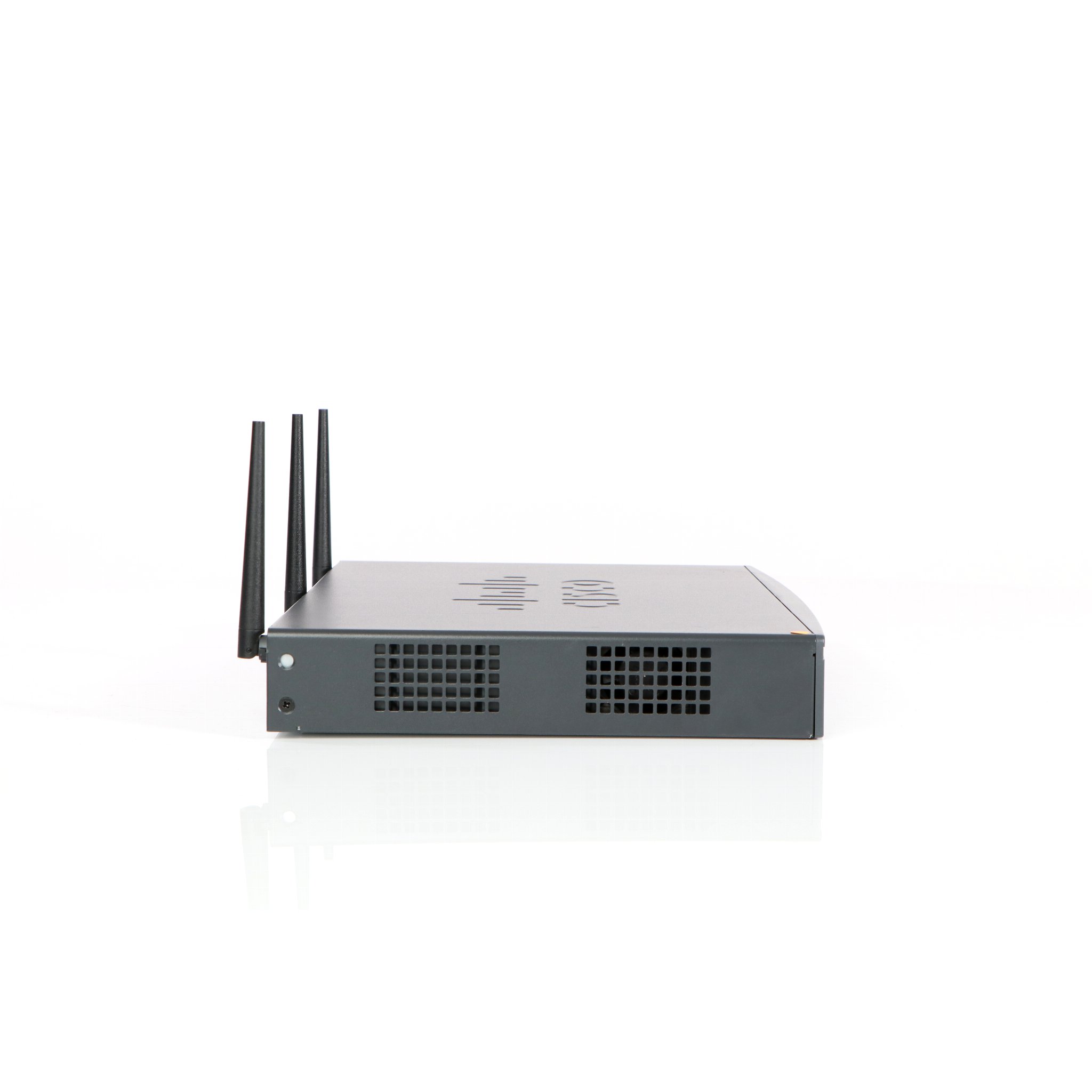

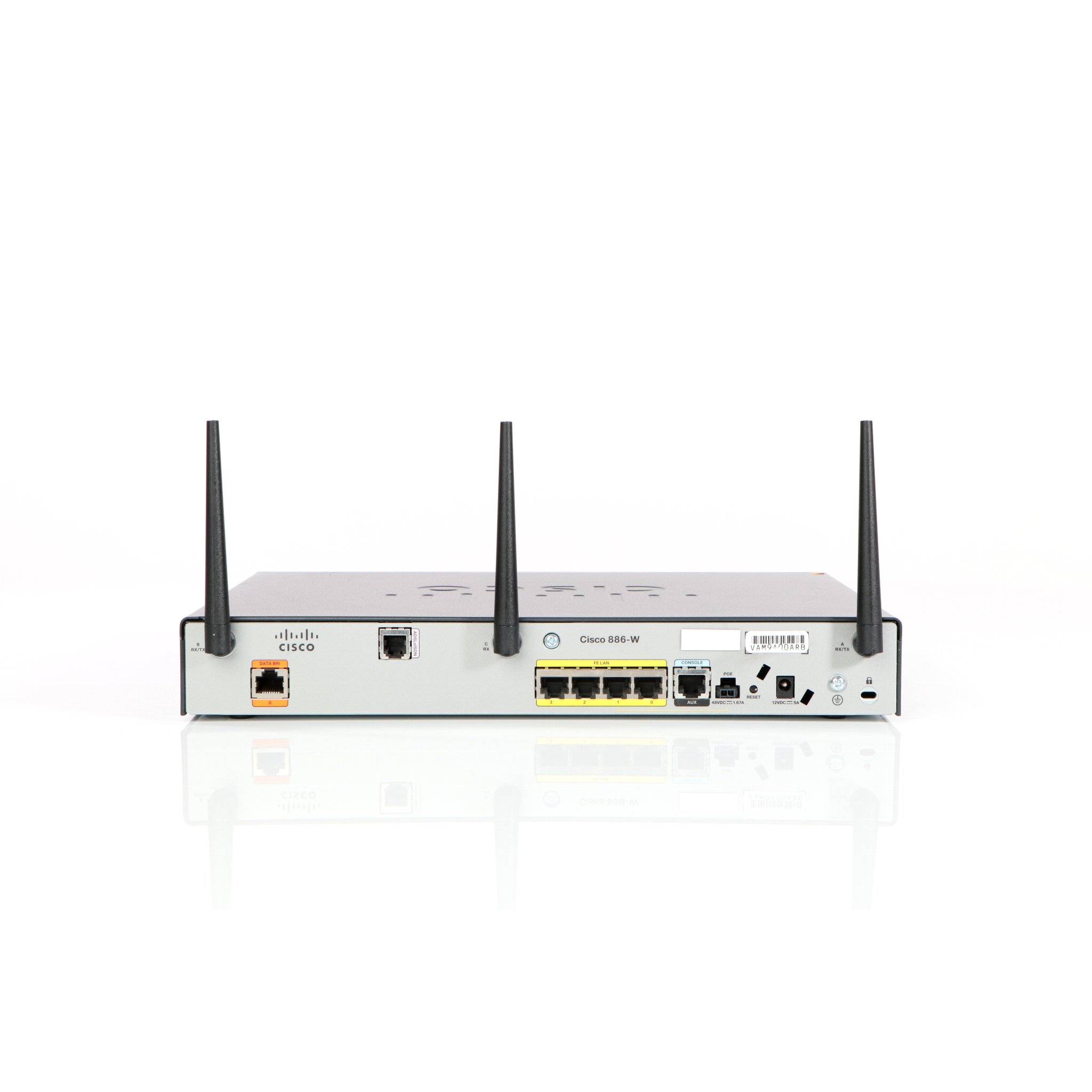

Cisco CISCO886W-GN-E-K9
Cisco 886 ADSL2/2 Annex B Router w/ 802.11n ETSI Comp
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco 886 ADSL2/2 Annex B Router w/ 802.11n ETSI Comp
| Antenna: | External detachable |
|---|---|
| Antenna Qty: | 3 |
| Authentication Method: | RADIUS, TACACS+ |
| Capacity: | IPSecVPN tunnels: 20 |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.3ah, Wi-Fi CERTIFIED, IEEE 802.1ag, IEEE 802.11n (draft 2.0), CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, |
| Connectivity Technology: | Wireless, wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0) |
| Depth: | 26.4 cm |
| Device Type: | Wireless router - 4-port switch (integrated) |
| Digital Signaling Protocol: | ADSL over ISDN, ADSL2+ over ISDN |
| Directivity: | Omni-directional |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | LEAP, DES, Triple DES, MD5, SSL, TLS, PEAP, TTLS, TKIP, WPA, WPA2, WPA-PSK, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Features: | NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion |
| Flash Memory: | 128 MB |
| Frequency Band: | 2.4 GHz |
| Gain Level: | 2 dBi |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Interfaces: | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ WAN: 1 x ADSL2+ over ISDN ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x BRI ST |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | L2TP, RSVP, IPSec, PPPoE, PPPoA, FTP, DHCP, DNS, L2TPv3, DDNS |
| OS Provided: | Cisco IOS Advanced Security |
| Power Device: | External power adapter - 60 Watt |
| Protocols & Specifications: | ITU G.992.1 (G.DMT) Annex B, ITU G.992.5 Annex B |
| RAM: | 256 MB (installed) / 768 MB (max) |
| Remote Management Protocol: | Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, policy-based routing (PBR), WCCP |
| Status Indicators: | Port status, power |
| Type: | ISDN / DSL modem combo |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 2.5 kg |
| Width: | 32.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
