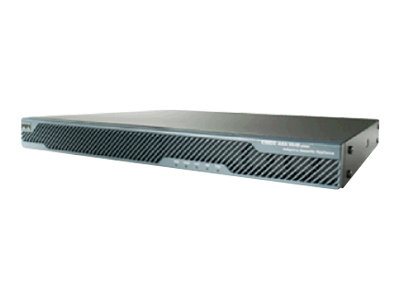

Cisco ASA5520-BUN-K9
ASA 5520 Appliance with SW, HA, 4GE+1FE, 3DES/AES
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ASA 5520 Appliance with SW, HA, 4GE+1FE, 3DES/AES
| Capacity: | Concurrent sessions: 280000 ¦ IPSec VPN peers: 750 ¦ SSL VPN peers: 2 ¦ Virtual interfaces (VLANs): 150 ¦ Security contexts: 20 |
|---|---|
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, UL 1950, VCCI Class A ITE, IEC 60950, EN 61000-3-3, CSA 22.2 No. 950, EN55022 Class A, ACA TS001, AS/NZS 3260, FCC Part 15 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet |
| Depth: | 20.04 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | DES, Triple DES, AES |
| Expansion Slots: | 1 (total) / 1 (free) x expansion slot |
| Features: | Firewall protection, VPN support, load balancing, VLAN support, High Availability |
| Flash Memory: | 256 MB |
| Form Factor: | Rack-mountable |
| Height: | 4.45 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 95% |
| Installed Modules Qty (Max): | 0 (1) |
| Interfaces: | 1 x 100Base-TX - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 1 x serial ¦ 4 x 1000Base-T - RJ-45 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec |
| Performance: | Firewall throughput: 450 Mbps ¦ VPN throughput (3DES/AES): 225 Mbps ¦ Connection rate: 12000 connections per second |
| Power Device: | Internal power supply |
| Power Provided: | 190 Watt |
| RAM: | 2 GB |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 9.07 kg |
| Width: | 36.2 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
