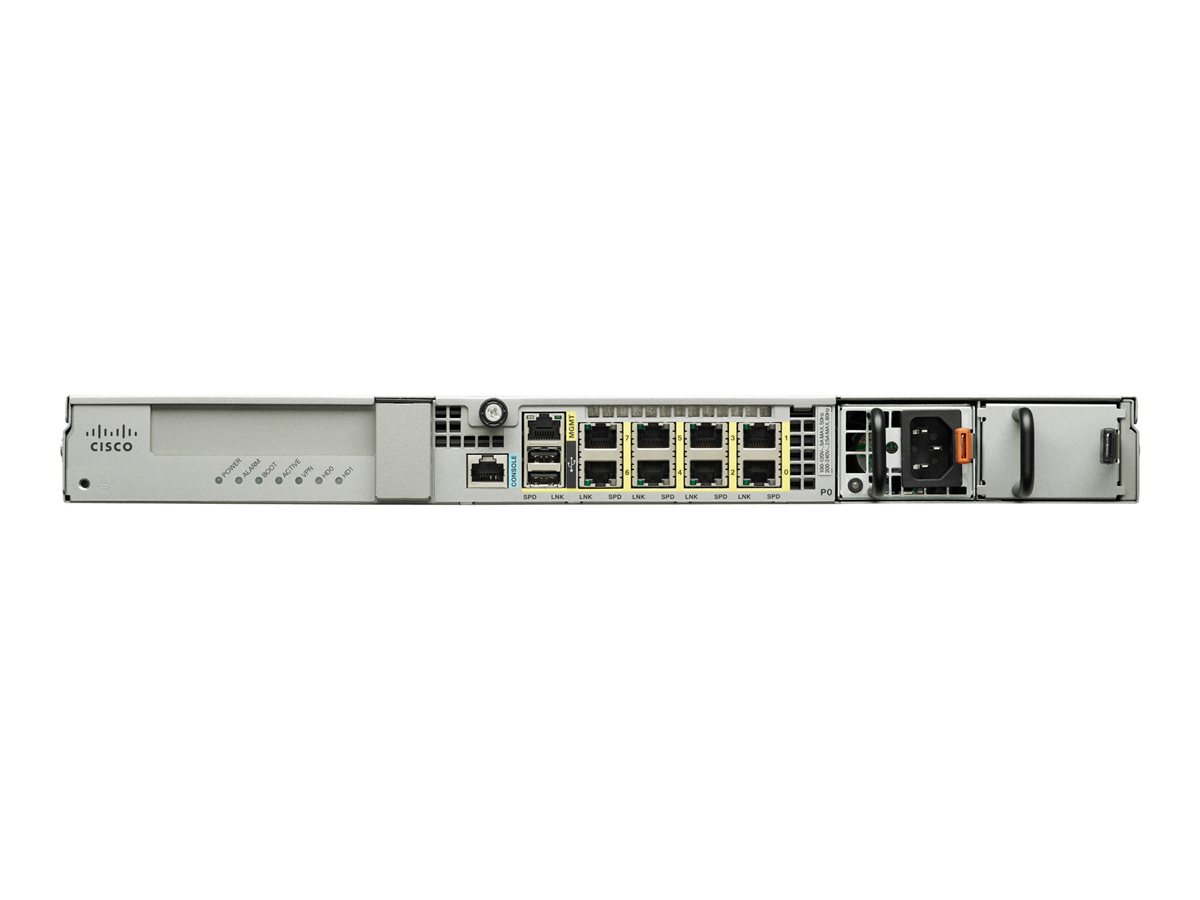

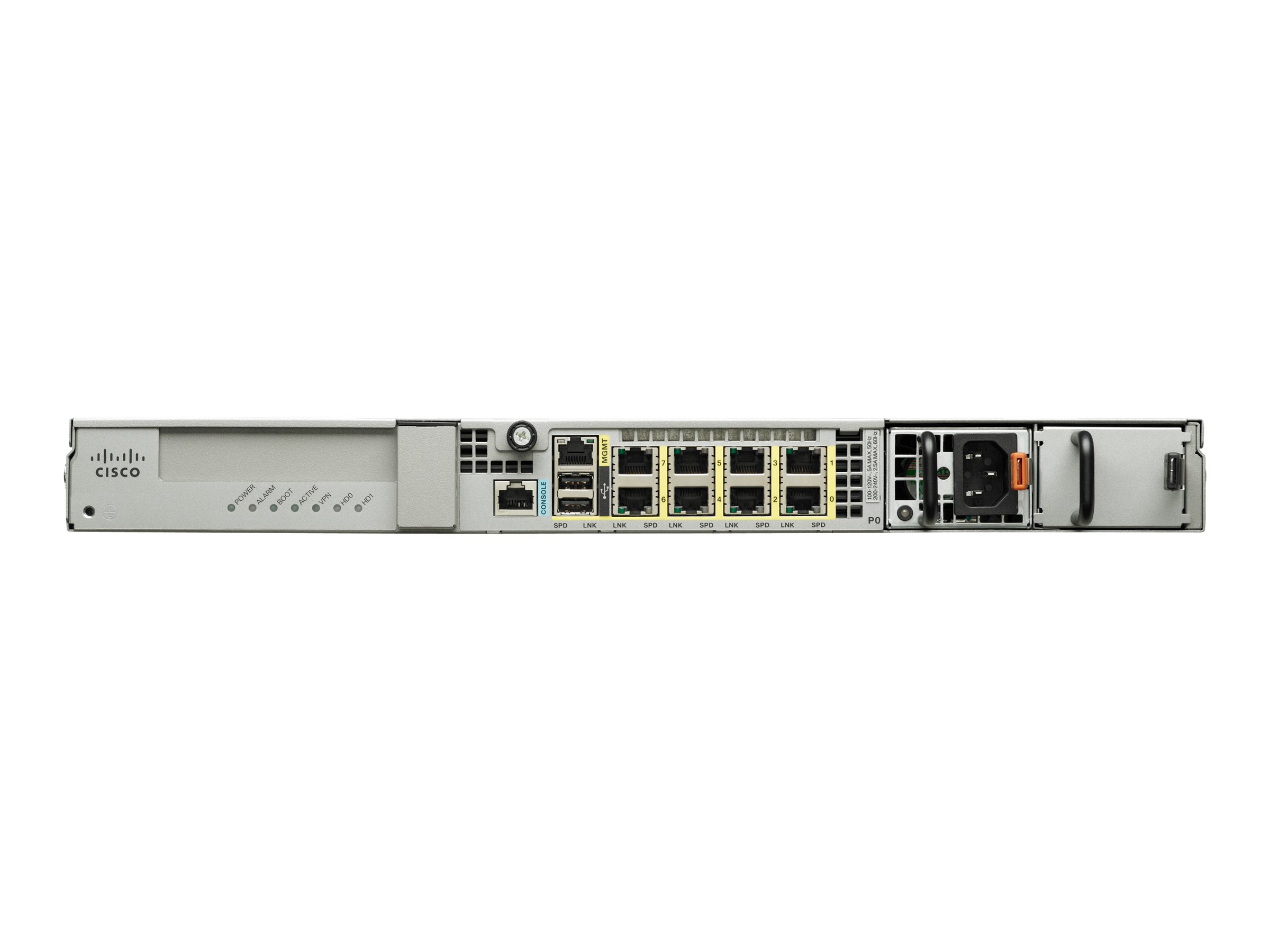

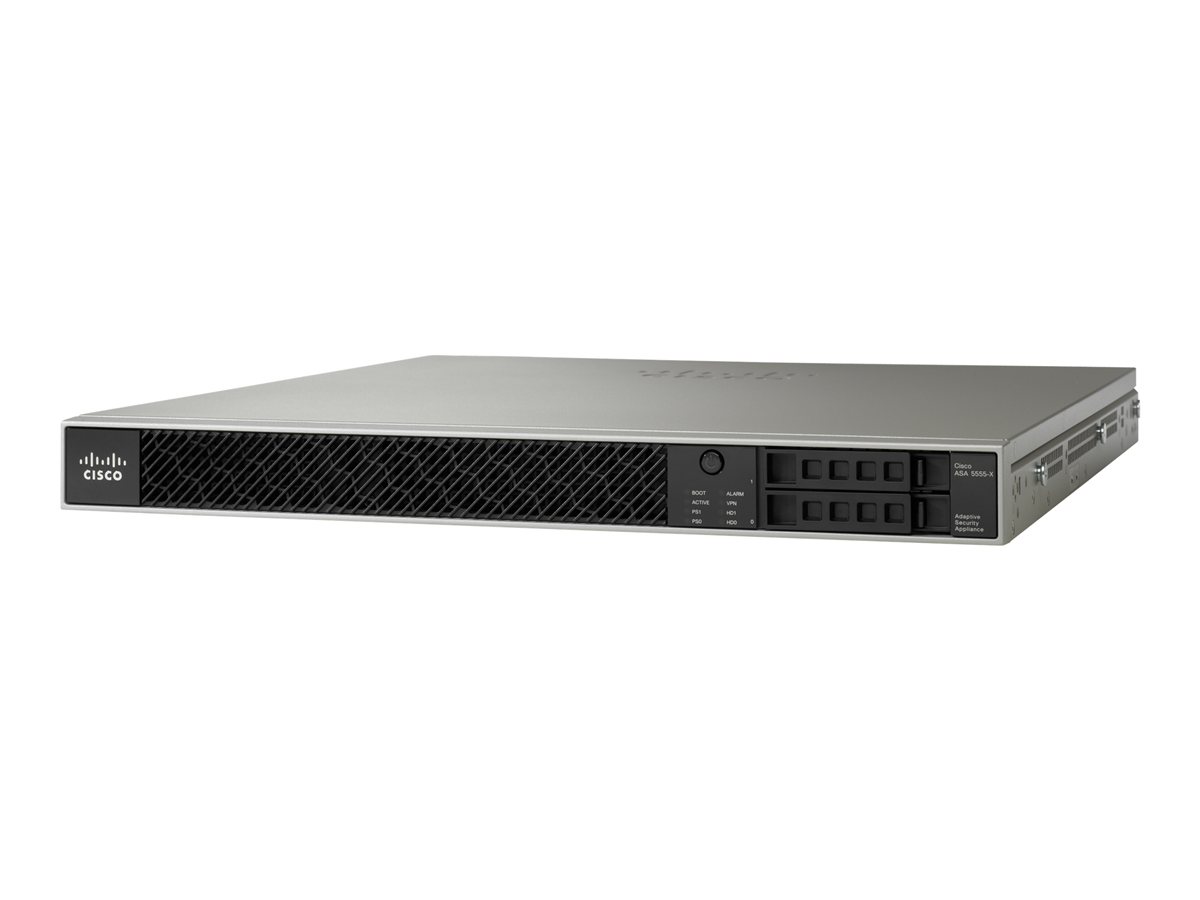

Cisco ASA5555-K9
ASA 5555-X with SW, 8GE Data, 1GE Mgmt, AC, 3DES/AES
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ASA 5555-X with SW, 8GE Data, 1GE Mgmt, AC, 3DES/AES
| Capacity: | IPSecVPN peers: 5000 ¦ SSL VPN peers: 2 ¦ Concurrent sessions: 1000000 ¦ Virtual interfaces (VLANs): 500 ¦ Security contexts: 2 |
|---|---|
| Compliant Standards: | VCCI, C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-07, ANSI C63.4-2009 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet |
| Depth: | 48.4 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | Triple DES, AES |
| Expansion Slots: | 1 (total) / 1 (free) x expansion slot |
| Features: | Firewall protection, VPN support, VLAN support, High Availability |
| Flash Memory: | 8 GB |
| Form Factor: | Rack-mountable |
| Height: | 4.24 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 0 - 90% |
| Installed Qty: | 1 |
| Interfaces: | 8 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x USB 2.0 - Type A |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | -5 °C |
| Performance: | Firewall throughput: 4 Gbps ¦ VPN throughput (3DES/AES): 700 Mbps ¦ Connection rate: 50000 connections per second ¦ Firewall + intrusion prevention throughput: 1.3 Gbps |
| Power Device: | Internal power supply |
| Power Provided: | 400 Watt |
| Power Redundancy: | Optional |
| RAM: | 16 GB |
| Rack Mounting Kit: | Included |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 7.6 kg |
| Width: | 42.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
ASA 5555-X with SW, 8GE Data, 1GE Mgmt, AC, 3DES/AES
| Capacity: | IPSecVPN peers: 5000 ¦ SSL VPN peers: 2 ¦ Concurrent sessions: 1000000 ¦ Virtual interfaces (VLANs): 500 ¦ Security contexts: 2 |
|---|---|
| Compliant Standards: | VCCI, C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-07, ANSI C63.4-2009 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet |
| Depth: | 48.4 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | Triple DES, AES |
| Expansion Slots: | 1 (total) / 1 (free) x expansion slot |
| Features: | Firewall protection, VPN support, VLAN support, High Availability |
| Flash Memory: | 8 GB |
| Form Factor: | Rack-mountable |
| Height: | 4.24 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 0 - 90% |
| Installed Qty: | 1 |
| Interfaces: | 8 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x USB 2.0 - Type A |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | -5 °C |
| Performance: | Firewall throughput: 4 Gbps ¦ VPN throughput (3DES/AES): 700 Mbps ¦ Connection rate: 50000 connections per second ¦ Firewall + intrusion prevention throughput: 1.3 Gbps |
| Power Device: | Internal power supply |
| Power Provided: | 400 Watt |
| Power Redundancy: | Optional |
| RAM: | 16 GB |
| Rack Mounting Kit: | Included |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 7.6 kg |
| Width: | 42.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
