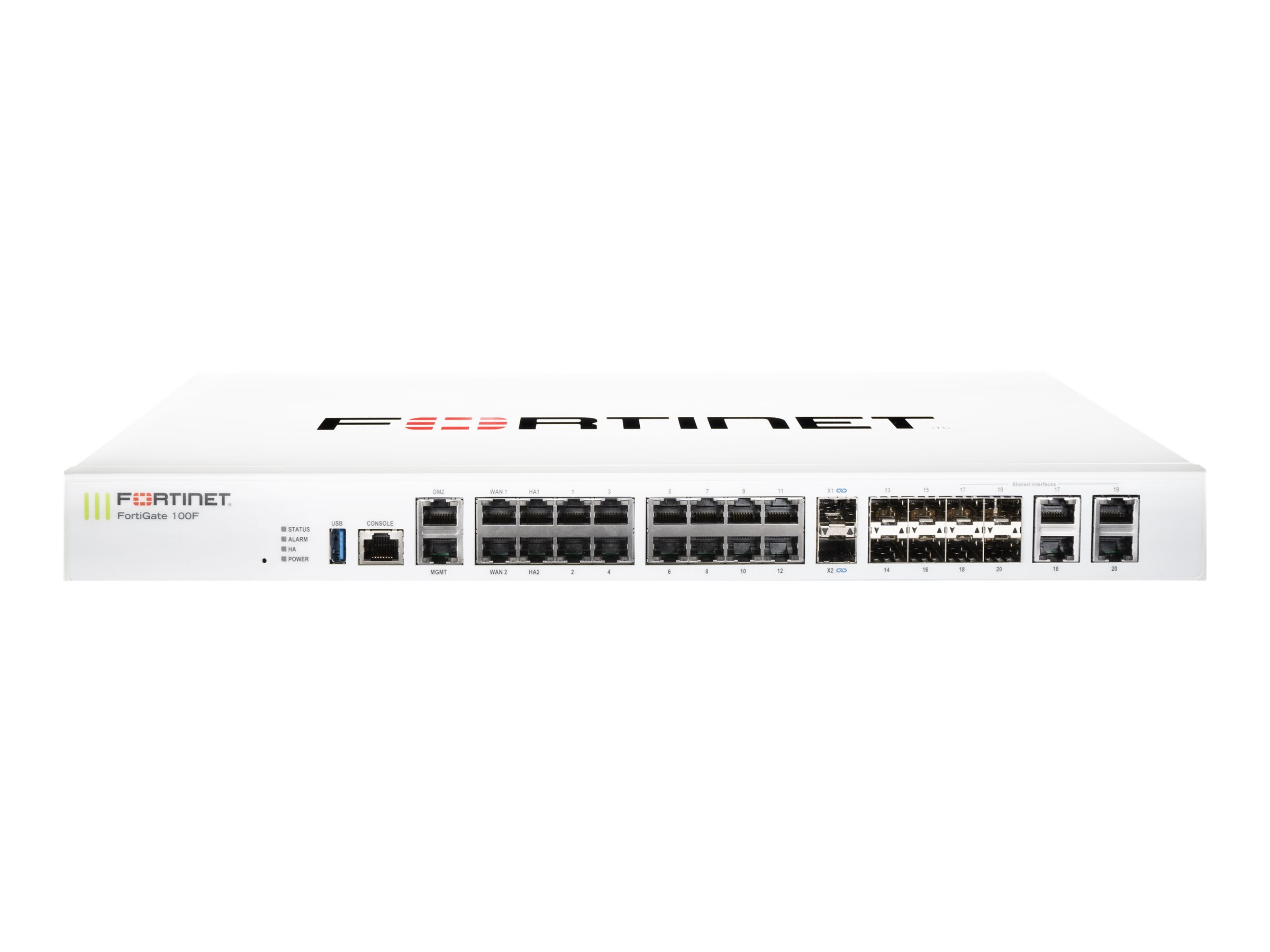

Fortinet FG-101F
22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, 480GB onboard storage, dual power supplies redundancy.
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, 480GB onboard storage, dual power supplies redundancy.
| Capacity: | Maximum overlay tunnels: 2500 |
|---|---|
| Compliant Standards: | UL, BSMI, cUL, CB, FCC Part 15 B Class A, RCM |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 25.4 cm |
| Device Type: | Security appliance |
| Features: | Firewall protection, IPv6 support |
| Form Factor: | External |
| Hard Drive: | 480 GB x 1 |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 2 x 10Gb Ethernet - SFP+ ¦ 20 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x network - RJ-45 (DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 ¦ 10 x Ethernet 1000 - SFP (mini-GBIC) |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec |
| Performance: | VPN throughput (IPSec): 11.5 Gbps ¦ NGFW throughput: 800 Mbps ¦ SSL inspection throughput: 1 Gbps ¦ IPS throughput: 1.6 Gbps ¦ Firewall throughput: 20 Gbps ¦ Threat protection throughput: 700 Mbps |
| Power Consumption Operational: | 39.1 Watt |
| Power Device: | Internal power supply |
| Processors Installed: | 1 x Fortinet FortiASIC SOC4 |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 3.43 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| EU Data-Act-Url: | https://www.fortinet.com/de/corporate/about-us/gdpr |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, 480GB onboard storage, dual power supplies redundancy.
| Capacity: | Maximum overlay tunnels: 2500 |
|---|---|
| Compliant Standards: | UL, BSMI, cUL, CB, FCC Part 15 B Class A, RCM |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 25.4 cm |
| Device Type: | Security appliance |
| Features: | Firewall protection, IPv6 support |
| Form Factor: | External |
| Hard Drive: | 480 GB x 1 |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 2 x 10Gb Ethernet - SFP+ ¦ 20 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x network - RJ-45 (DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 ¦ 10 x Ethernet 1000 - SFP (mini-GBIC) |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec |
| Performance: | VPN throughput (IPSec): 11.5 Gbps ¦ NGFW throughput: 800 Mbps ¦ SSL inspection throughput: 1 Gbps ¦ IPS throughput: 1.6 Gbps ¦ Firewall throughput: 20 Gbps ¦ Threat protection throughput: 700 Mbps |
| Power Consumption Operational: | 39.1 Watt |
| Power Device: | Internal power supply |
| Processors Installed: | 1 x Fortinet FortiASIC SOC4 |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 3.43 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| EU Data-Act-Url: | https://www.fortinet.com/de/corporate/about-us/gdpr |
