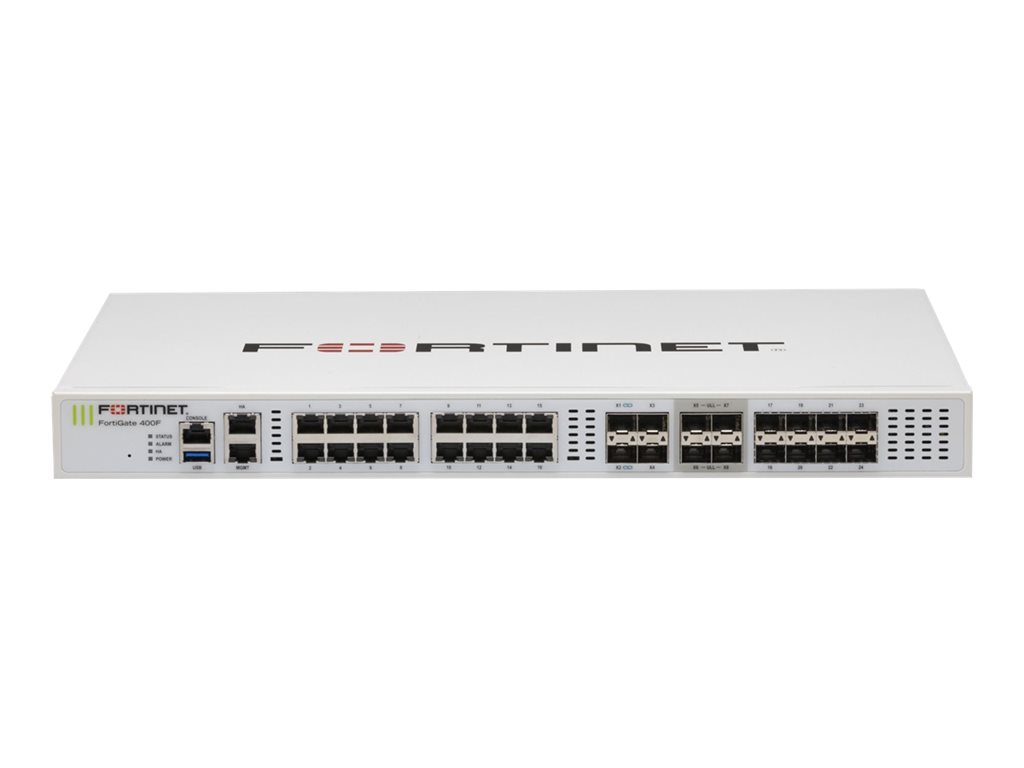

Fortinet FG-400F
18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 8 x 10GE SFP+ slots, SPU NP7 and CP9 hardware accelerated, dual AC power supplies
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 8 x 10GE SFP+ slots, SPU NP7 and CP9 hardware accelerated, dual AC power supplies
| 80 PLUS Certification: | 80 PLUS |
|---|---|
| Airflow Direction: | Front and side to back |
| Capacity: | Concurrent TCP sessions: 7800000 ¦ New TCP sessions per second: 500000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 50000 ¦ Concurrent SSL VPN users: 5000 ¦ SSL inspection CPS: 6000 ¦ SSL i |
| Compliant Standards: | UL, VCCI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, RCM, USGv6, ICSA SSL-VPN, ICSA IPS |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 38 cm |
| Designed For: | P/N: FN-TRAN-GC, FN-TRAN-LX, FN-TRAN-SFP+ER, FN-TRAN-SFP+GC, FN-TRAN-SFP+LR, FN-TRAN-SFP+SR, FN-TRAN-SX, SP-FG400F-PS, SP-FGPCOR-AU, SP-FGPCOR-EU, SP-FGPCOR-UK, SP-FGPCOR-US |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 256-bit AES, 256-bit SHA, TLS 1.3 |
| Features: | VPN support, High Availability, Trusted Platform Module (TPM), CAPWAP support, SSL inspection, IP tunnel acceleration, SD-WAN support, Zero Trust Network Access (ZTNA) |
| Form Factor: | Rack-mountable |
| Height: | 4.445 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Included Accessories: | 2 x 1Gb Ethernet SX SFP transceiver |
| Interfaces: | 1 x USB - Type A ¦ 1 x console - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 16 x 1000Base-T - RJ-45 ¦ 4 x 1000Base-X/10GBase-X - SFP+ ¦ 4 x 10GBase-X (ultra-low latency) - SFP+ ¦ 8 x 1000Base-X - SFP |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4, IPv6 |
| OS Provided: | FortiOS |
| Performance: | IPS throughput (enterprise traffic mix): 12 Gbps ¦ NGFW throughput (enterprise traffic mix): 10 Gbps ¦ Threat protection throughput (enterprise traffic mix): 9 Gbps ¦ IPv4 firewall throughput (1518-byte UDP): 79.5 Gbps ¦ IPv4 firewall throughput (512-byte |
| Power Consumption Operational: | 154.8 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Processors Installed: | Fortinet FortiASIC CP9/NP7 |
| Remote Management Protocol: | HTTP, HTTPS |
| Status Indicators: | Power, status, alarm, HA |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 6.4 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
