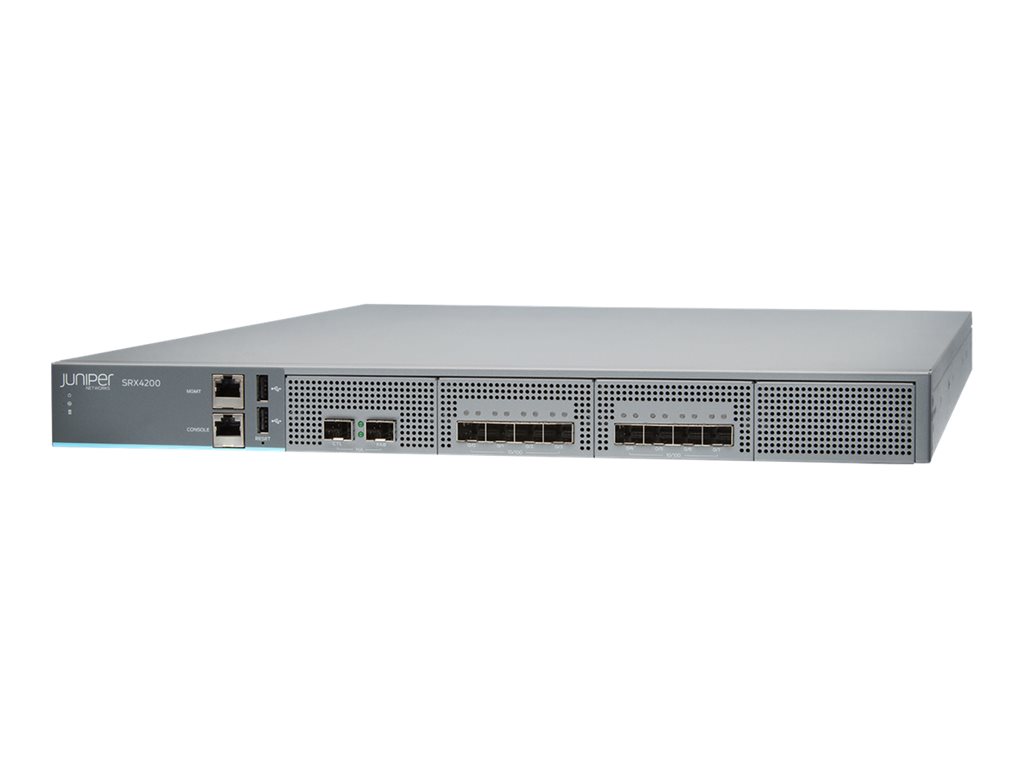

SRX4200 Services Gateway includes hardware (8x10GE, two DC PSU, four FAN Trays, cables and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS)
| Airflow Direction: | Front to back airflow |
|---|---|
| Capacity: | Security policies: 60000 ¦ Concurrent sessions: 10000000 ¦ Forwarding table entries: 2000000 ¦ Routing table entries: 2000000 |
| Compliant Standards: | IEEE 802.1p, X.509 |
| Compliant Standards: | FCC Class A certified, Triple DES, RoHS2 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate: | 10 Gbps |
| Depth: | 63.5 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | DES, Triple DES, IKE, SHA-1, PKI, 256-bit AES, IKEv2, 256-bit SHA, 128-bit SHA |
| Features: | Firewall protection, NAT support, VPN support, MPLS support, VLAN support, dynamic DNSserver, IPv6 support, antivirus analysis, High Availability, Intrusion Prevention System (IPS), DDos attack prevention, Weighted Random Early Detection (WRED), Virtual |
| Form Factor: | Rack-mountable |
| Hard Drive: | SSD 240 GB x 2 |
| Height: | 4.31 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 8 x 10Gb Ethernet - SFP+ ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 2 x 10Gb Ethernet - SFP+ ¦ 1 x console - RJ-45 ¦ 2 x USB 2.0 - Type A |
| MTBF: | 12 years |
| Manufacturer: | Juniper HPE |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, PPPoE, DHCP |
| OS Provided: | JUNOS |
| Performance: | Firewall throughput (64-byte packet size): 10 Gbps ¦ Firewall throughput (IMIX): 40 Gbps ¦ Firewall throughput (1518-byte packet size): 80 Gbps ¦ VPN throughput (IPSec): 9.6 Gbps ¦ IPSes throughput (1400-byte packet size): 20 Gbps ¦ Application control (A |
| Ports Qty: | 8 |
| Power Consumption Operational: | 200 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 650 Watt |
| Power Redundancy: | Yes |
| RAM: | 64 GB |
| Remote Management Protocol: | SNMP, Telnet, SSH |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv3, Bidirectional PIM, static IPv4 routing, static IPv6 routing |
| Shipping Weight: | 21.54 kg |
| Software Included: | Junos Software Base |
| Version: | original |
| Voltage Required: | DC -48 V |
| Weight: | 13.06 kg |
| Width: | 44.39 cm |
| GPSR - economic actor: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info@juniper.net |
|---|---|
| GPSR - product manufacturer: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info@juniper.net |
| GPSR - EU responsible person: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info@juniper.net |
| EU Data-Act-Url: | https://www.juniper.net/us/en/privacy-policy/european-privacy-policy.html |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
