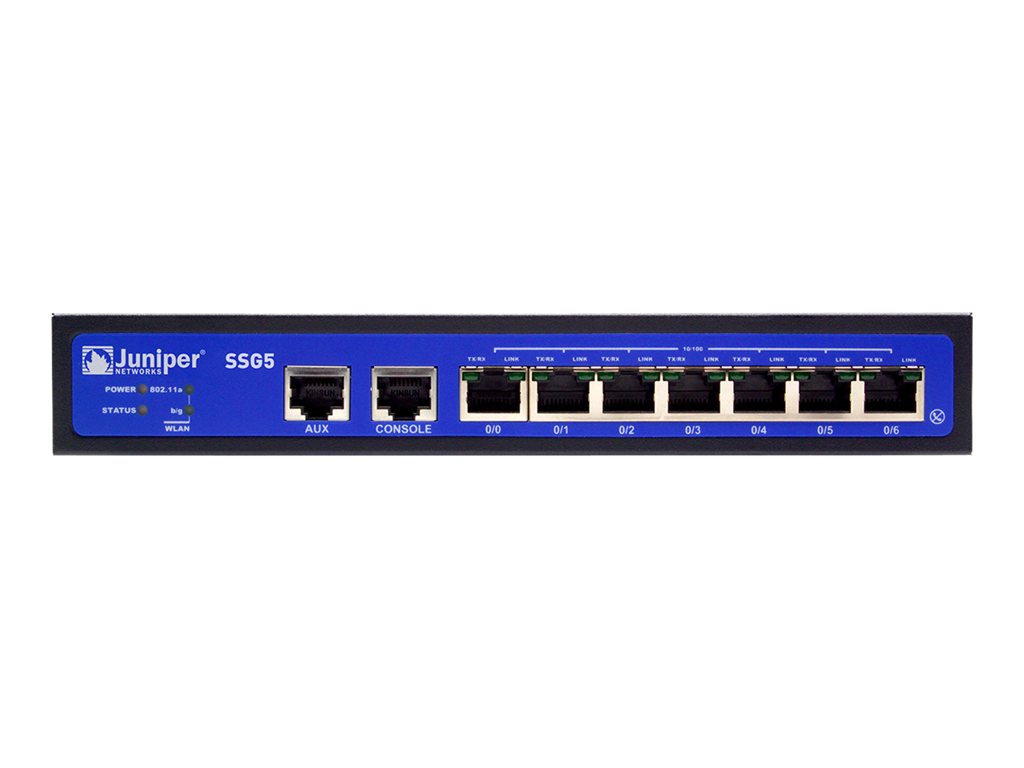

Juniper SSG-5-SB-M
Secure Services Gateway 5 with v.92 backup, 128 MB Memory
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Secure Services Gateway 5 with v.92 backup, 128 MB Memory
| Authentication Method: | Secure Shell (SSH), RADIUS, X.509 certificates, Secure Shell v.2 (SSH2), LDAP |
|---|---|
| Built-in Devices: | Led panel |
| Capacity: | Concurrent sessions: 4000 ¦ Security policies: 200 ¦ Connection / user qty: unlimited ¦ Authenticated users (internal database): 100 ¦ Concurrent VPN tunnels: 25 ¦ Security zones: 10 ¦ Static routes: 1024 |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1x, X.509 |
| Compliant Standards: | FCC Class B certified, CSA, UL, C-Tick, BSMI, cUL, VCCI Class A ITE, CB |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, PPP |
| Depth: | 14.3 cm |
| Device Type: | Security appliance |
| Digital Signaling Protocol: | H.323, MGCP, SIP |
| Encryption Algorithm: | DES, Triple DES, RSA, MD5, AES, IKE, SHA-1, PKI |
| Features: | Modular design, firewall protection, 56-bit encryption, routing, 168-bit encryption, DHCP support, NAT support, VPN support, PAT support, LDAP support, VLAN support, Syslog support, DoS attack prevention, packet filtering, DiffServ support, manageable, an |
| Form Factor: | External |
| Height: | 4.1 cm |
| Humidity Range Operating: | 10 - 90% |
| Interfaces: | 1 x modem ¦ 7 x 100Base-TX - RJ-45 ¦ 1 x management - RJ-45 |
| Manufacturer: | Juniper HPE |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | NetBEUI/NetBIOS, L2TP, IPSec, PPPoE |
| OS Provided: | ScreenOS |
| Performance: | VPN throughput (3DES IPSec): 40 Mbps ¦ Firewall throughput: 160 Mbps |
| Ports Qty: | 7 |
| Power Device: | Internal power supply |
| Protocols & Specifications: | ITU V.92 |
| RAM: | 128 MB |
| Rack Mounting Kit: | Optional |
| Remote Management Protocol: | SNMP 2, SNMP, Telnet, HTTP, HTTPS |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, static IP routing, ECMP |
| Status Indicators: | Port status, power, status, alarm, link/activity |
| Version: | original |
| Voice Communication Support: | VoIP |
| Voltage Required: | AC 120/230 V |
| Weight: | 0.95 kg |
| Width: | 22.2 cm |
| GPSR - economic actor: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
|---|---|
| GPSR - product manufacturer: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| GPSR - EU responsible person: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
Secure Services Gateway 5 with v.92 backup, 128 MB Memory
| Authentication Method: | Secure Shell (SSH), RADIUS, X.509 certificates, Secure Shell v.2 (SSH2), LDAP |
|---|---|
| Built-in Devices: | Led panel |
| Capacity: | Concurrent sessions: 4000 ¦ Security policies: 200 ¦ Connection / user qty: unlimited ¦ Authenticated users (internal database): 100 ¦ Concurrent VPN tunnels: 25 ¦ Security zones: 10 ¦ Static routes: 1024 |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1x, X.509 |
| Compliant Standards: | FCC Class B certified, CSA, UL, C-Tick, BSMI, cUL, VCCI Class A ITE, CB |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, PPP |
| Depth: | 14.3 cm |
| Device Type: | Security appliance |
| Digital Signaling Protocol: | H.323, MGCP, SIP |
| Encryption Algorithm: | DES, Triple DES, RSA, MD5, AES, IKE, SHA-1, PKI |
| Features: | Modular design, firewall protection, 56-bit encryption, routing, 168-bit encryption, DHCP support, NAT support, VPN support, PAT support, LDAP support, VLAN support, Syslog support, DoS attack prevention, packet filtering, DiffServ support, manageable, an |
| Form Factor: | External |
| Height: | 4.1 cm |
| Humidity Range Operating: | 10 - 90% |
| Interfaces: | 1 x modem ¦ 7 x 100Base-TX - RJ-45 ¦ 1 x management - RJ-45 |
| Manufacturer: | Juniper HPE |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | NetBEUI/NetBIOS, L2TP, IPSec, PPPoE |
| OS Provided: | ScreenOS |
| Performance: | VPN throughput (3DES IPSec): 40 Mbps ¦ Firewall throughput: 160 Mbps |
| Ports Qty: | 7 |
| Power Device: | Internal power supply |
| Protocols & Specifications: | ITU V.92 |
| RAM: | 128 MB |
| Rack Mounting Kit: | Optional |
| Remote Management Protocol: | SNMP 2, SNMP, Telnet, HTTP, HTTPS |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, static IP routing, ECMP |
| Status Indicators: | Port status, power, status, alarm, link/activity |
| Version: | original |
| Voice Communication Support: | VoIP |
| Voltage Required: | AC 120/230 V |
| Weight: | 0.95 kg |
| Width: | 22.2 cm |
| GPSR - economic actor: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
|---|---|
| GPSR - product manufacturer: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| GPSR - EU responsible person: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
