APC SMX2000LVNCUS

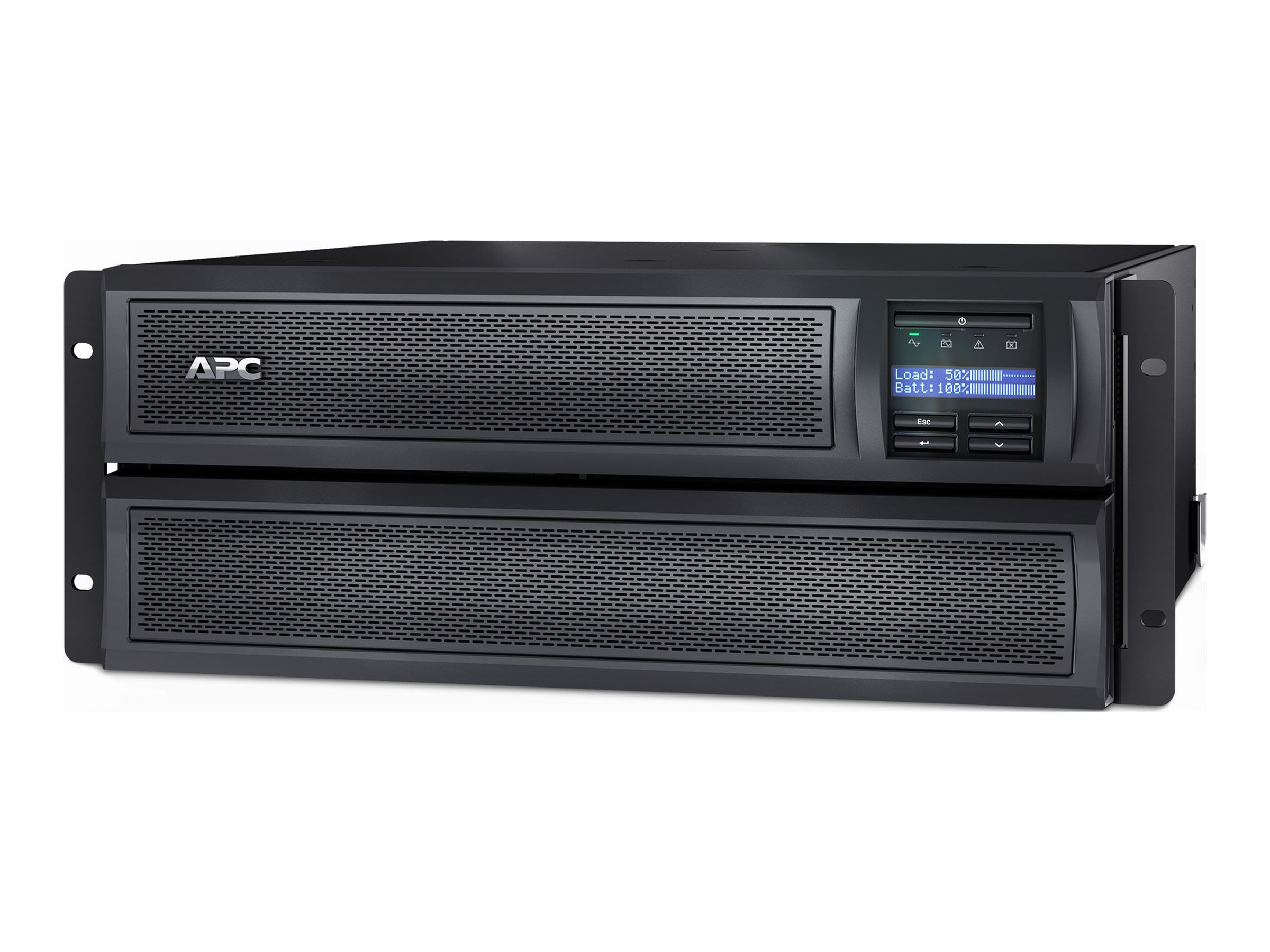

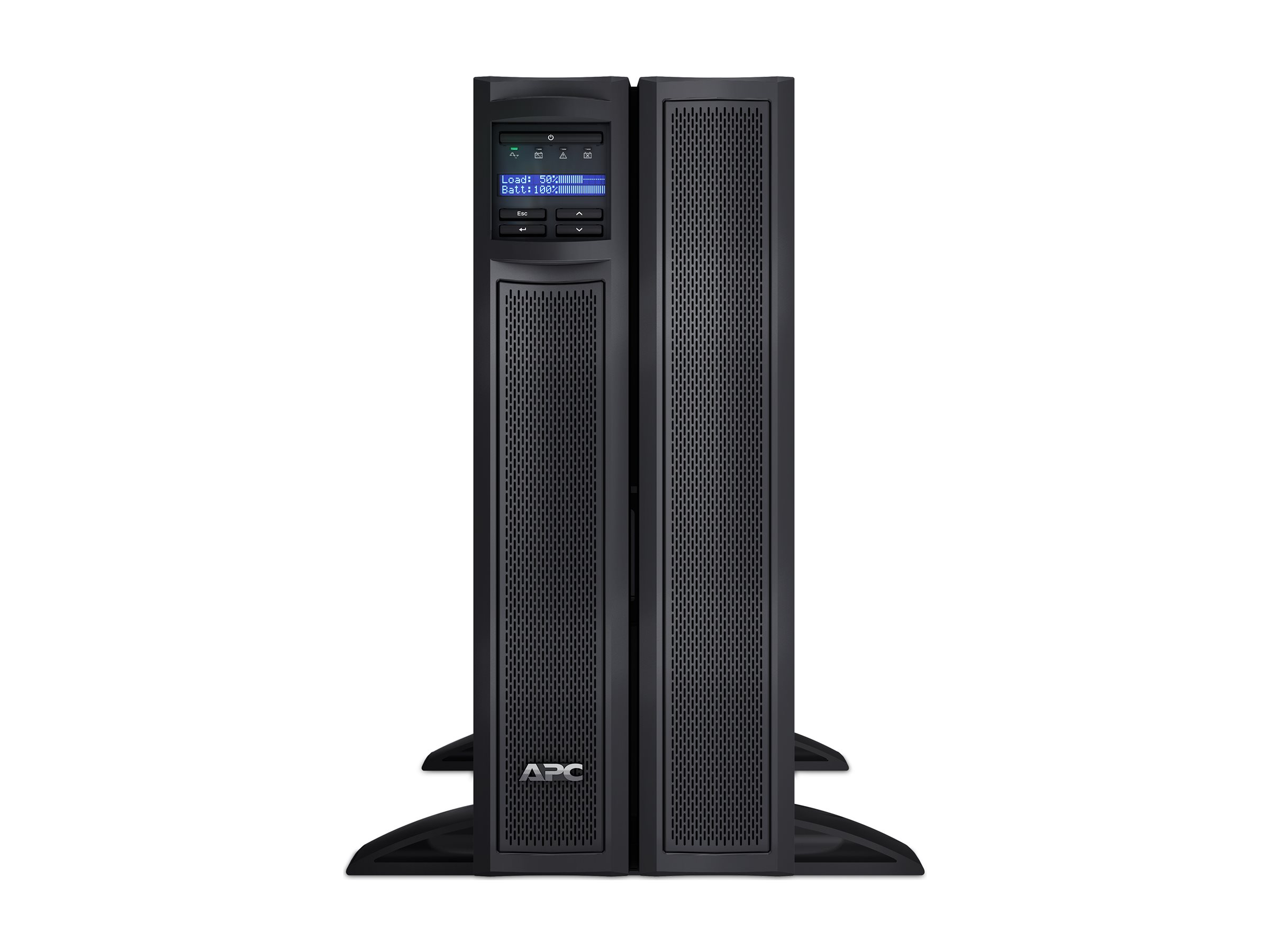

APC Smart-UPS X SMX2000LVNCUS - UPS (rack-mountable / external) - AC 120 V - 1.8 kW - 1920 VA - Ethernet 10/100, RS-232, USB - output connectors: 10 - 4U - black - TAA Compliant
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
APC Smart-UPS X SMX2000LVNCUS - UPS (rack-mountable / external) - AC 120 V - 1.8 kW - 1920 VA - Ethernet 10/100, RS-232, USB - output connectors: 10 - 4U - black - TAA Compliant
| Cables Included: | Power cable 2.44 m ¦ USB cable - external ¦ Serial cable - external |
|---|---|
| Compliant Standards: | BSMI, CSA, EN 50091-2, EN55022 Class A, FCC Part 15 A, NOM, TUV, UL 1778, VCCI Class A, UL 1449, RoHS, REACH |
| Depth: | 48.3 cm |
| Designed For: | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF101BLK, ACF102BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP929 |
| Device Type: | UPS - rack-mountable / external |
| ENERGY STAR: | Yes |
| Enclosure Colour: | Black |
| Equipment Protection Value: | 150000 US Dollars |
| Expansion Slots: | 1 (total) / 0 (free) x SmartSlot |
| Features: | Automatic Voltage Regulation (AVR), LCD display, audible alarm, emergency power off, hot-swappable batteries |
| Frequency Provided: | 50/60 Hz ± 3Hz |
| Frequency Required: | 50/60 Hz ± 3Hz |
| Height: | 43.2 cm |
| Height (Rack Units): | 4U |
| Humidity Range Operating: | 0 - 95% |
| Included Accessories: | Tower stand |
| Input Connectors: | 1 x power NEMA 5-20P |
| Input Voltage: | AC 120 V |
| Input Voltage Range: | AC 70 - 153 V |
| Input Voltage Range (Adjustable): | AC 75 - 154 V |
| Interfaces: | 1 x management (USB) ¦ 2 x USB - 4 pin USB Type A ¦ 2 x monitoring ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 |
| Manufacturer: | APC Schneider |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Output Voltage: | AC 120 V ± 5% - 50/60 Hz |
| Output Waveform: | Sinewave |
| Power Capacity: | 1.8 kW / 1920 VA |
| Power Output Connectors Details: | 6 x power NEMA 5-15R ¦ 3 x power NEMA 5-20R ¦ 1 x power NEMA L5-20R |
| Quantity: | 1 |
| Rack Mounting Kit: | Included |
| Recharge Time: | 3 hours |
| Remote Management Interface: | USB, RS-232, Ethernet 10/100 |
| Remote Management Protocol: | HTTPS, SNMP 3, SSH, SNMP 1, SNMP 2c, Telnet |
| Run Time (Up To): | 11 min at full load ¦ 27.6 min at half load |
| Shipping Depth: | 63.3 cm |
| Shipping Height: | 33 cm |
| Shipping Weight: | 47.73 kg |
| Shipping Width: | 58.6 cm |
| Sound Emission: | 55 dBA |
| Surge Energy Rating: | 540 Joules |
| Surge Suppression: | Yes |
| TAA Compliant: | Yes |
| Technology: | Lead Acid |
| Transfer Time: | 4 ms |
| UPS Technology: | Line interactive |
| Version: | original |
| Weight: | 38.64 kg |
| Width: | 17.8 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| Warnings: | Warnings UPS Systems & Power Distribution International.pdf |
| Safety instructions: | Safety instructions UPS Systems & Power Distribution International.pdf |
