HPE 518878-B21

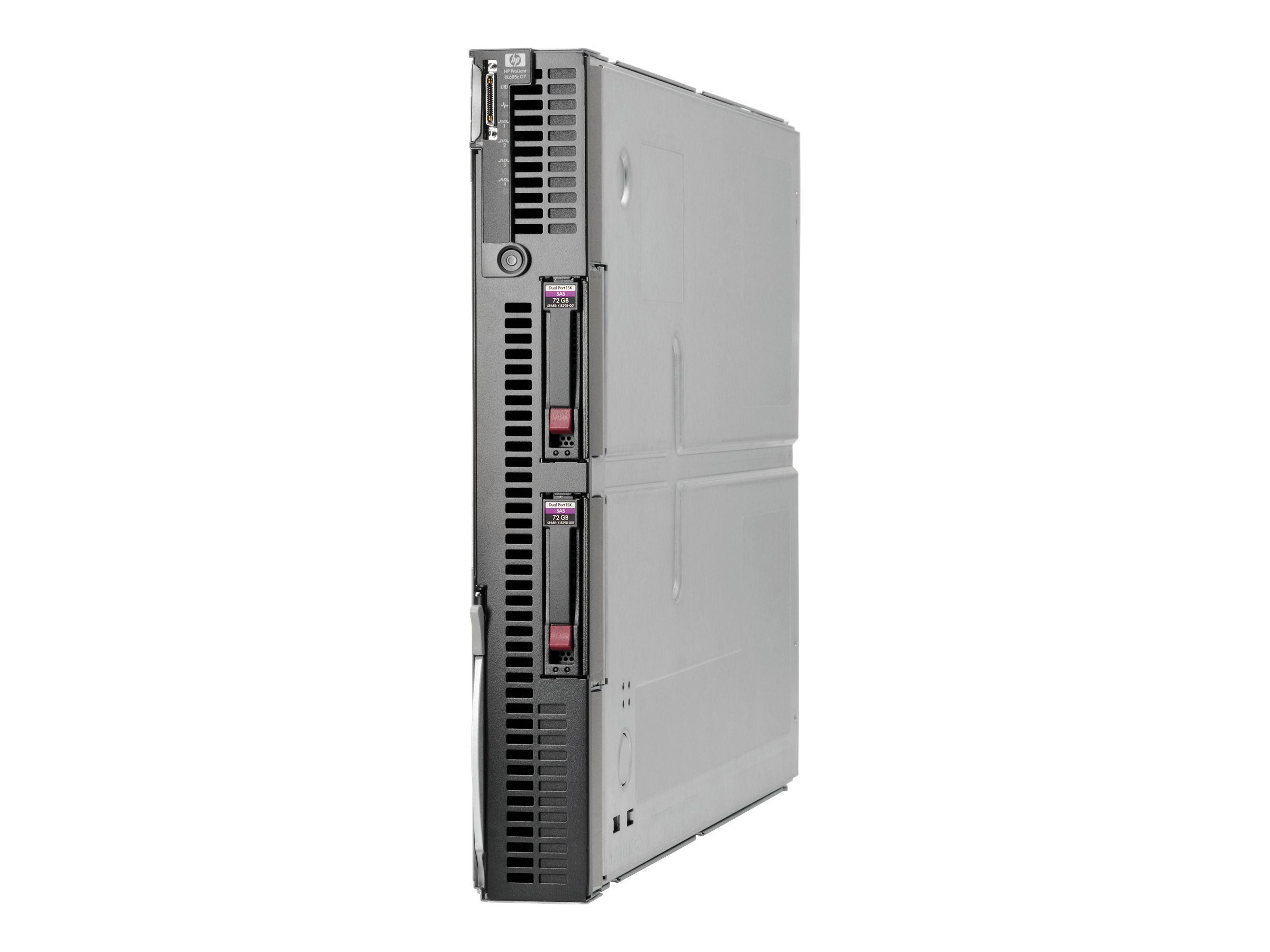

HP ProLiant BL685C G7 Configure-to-Order Server
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HP ProLiant BL685C G7 Configure-to-Order Server

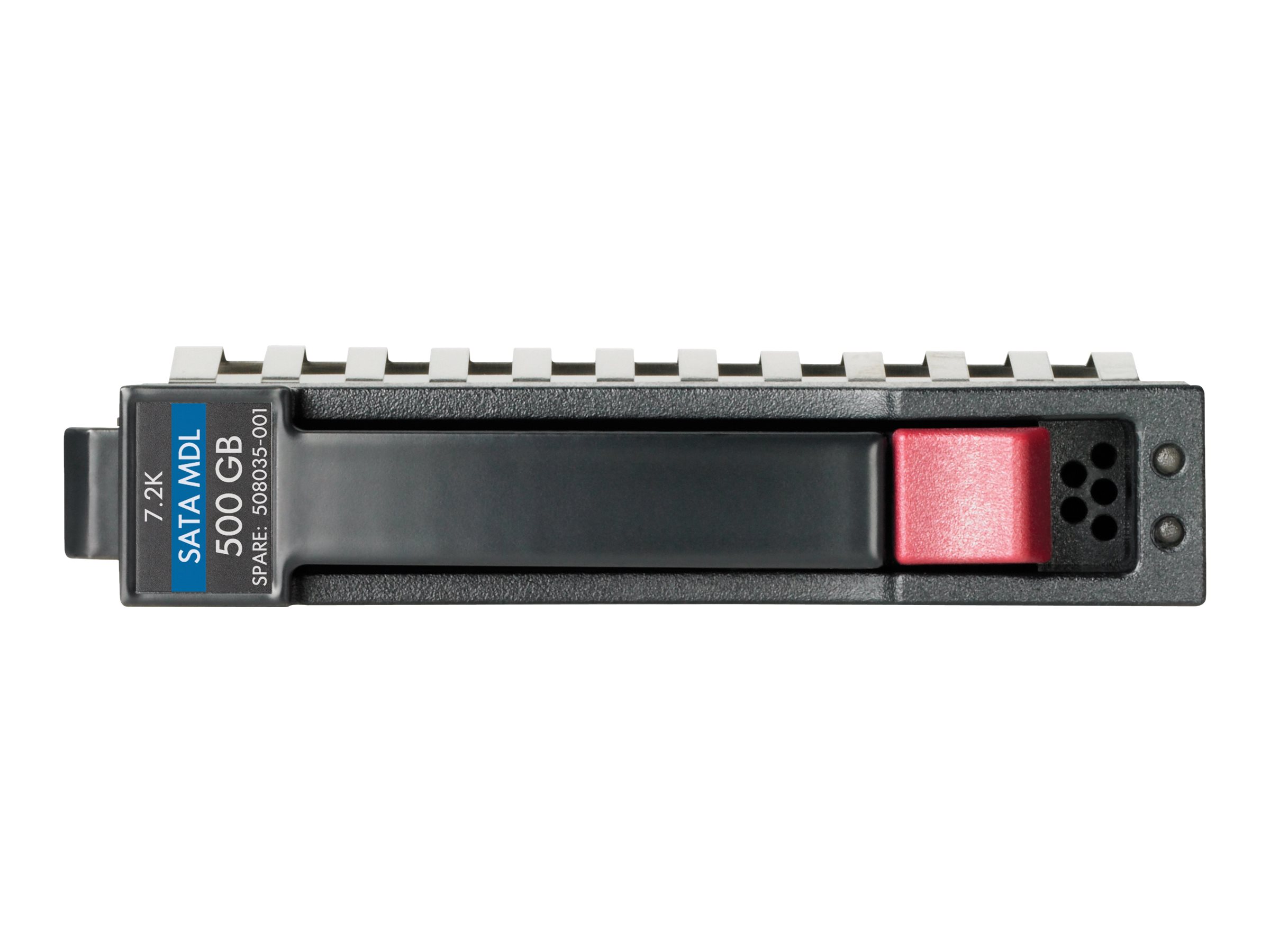

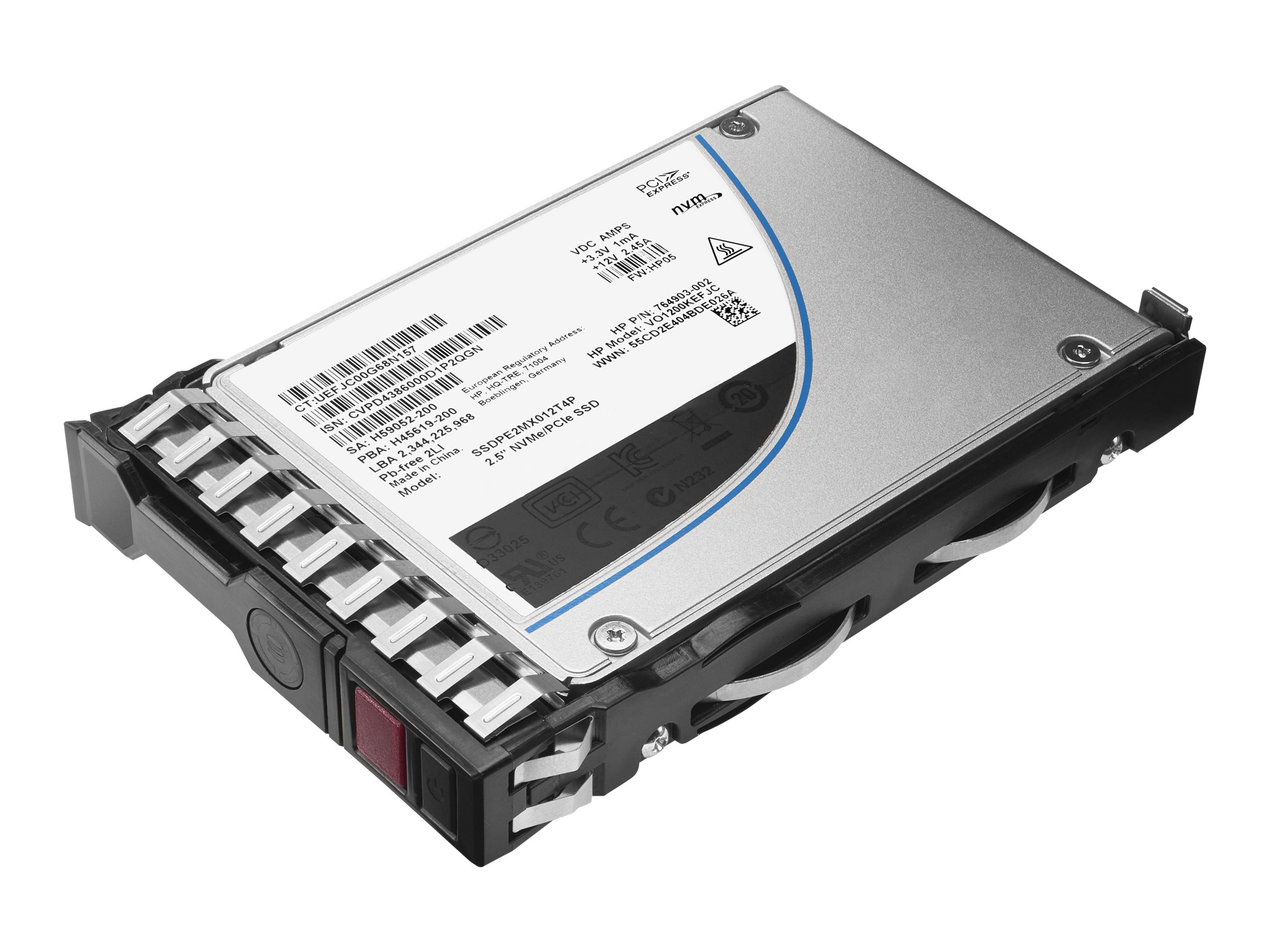

| Bays: | 2 (total) / 2 (free) x hot-swap 2.5" SFF |
|---|---|
| CPU: | No CPU |
| CPU Upgradability: | Upgradable |
| Chipset Type: | AMD SR5690/SP5100 |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ap |
| Compliant Standards: | ACPI 2.0 |
| Data Link Protocol: | 10 Gigabit Ethernet |
| Depth: | 50.95 cm |
| Ethernet Controller: | 2 x HP NC551i |
| Ethernet Ports: | 4 x 10 Gigabit Ethernet |
| Features: | Administrator password, power-on password |
| Form Factor: | DIMM 240-pin |
| Graphics Processor: | ATI ES1000 |
| Height: | 36.63 cm |
| Hot-Swap Bays Qty: | 2 |
| Humidity Range Operating: | 10 - 90% |
| Installed Qty: | 0 GB / 1 TB (max) |
| Interface (Bus) Type: | PCI Express 2.0 x8 |
| Interfaces: | 1 x HPE iLO ¦ 4 x LAN (10Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x USB 2.0 (1 internal) |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 4 |
| Max Operating Temperature: | 35 °C |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| OS Certified: | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux |
| Pricing Type: | CTO |
| Product Form Factor: | Blade |
| RAM Supported: | PC3-12800 - 512 GB registered - Advanced ECC ¦ PC3-8500 - 1 TB registered - Advanced ECC |
| Remote Management Controller: | Integrated Lights-Out 3 |
| Remote Management Protocol: | IPMI 2.0, SMASH CLP |
| Server Scalability: | 4-way |

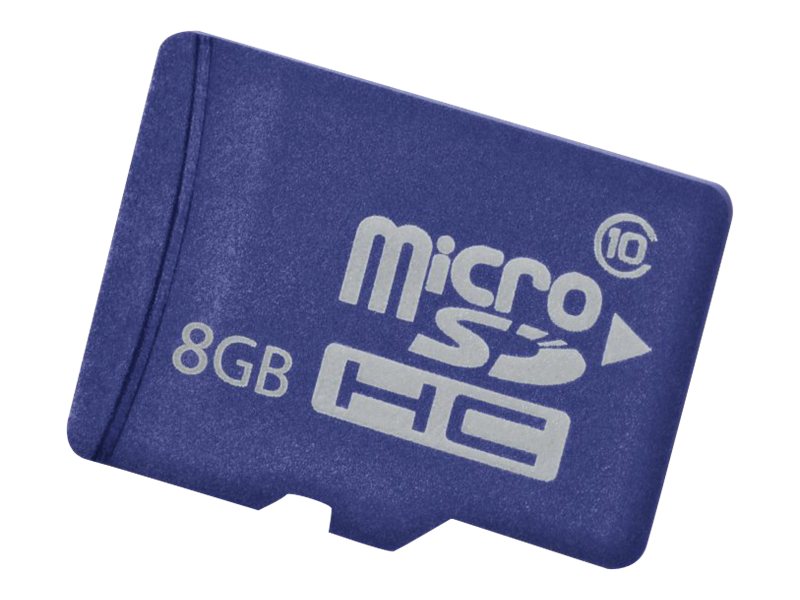

| Slots: | 4 (total) / 4 (free) x CPU ¦ 32 (total) / 32 (free) x DIMM 240-pin ¦ 3 (total) / 3 (free) x expansion slot ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Technology: | DDR3 SDRAM - Advanced ECC |
| Type: | Integrated |
| Version: | original |
| Video Interfaces: | VGA |
| Weight: | 8.71 kg |
| Width: | 5.56 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
