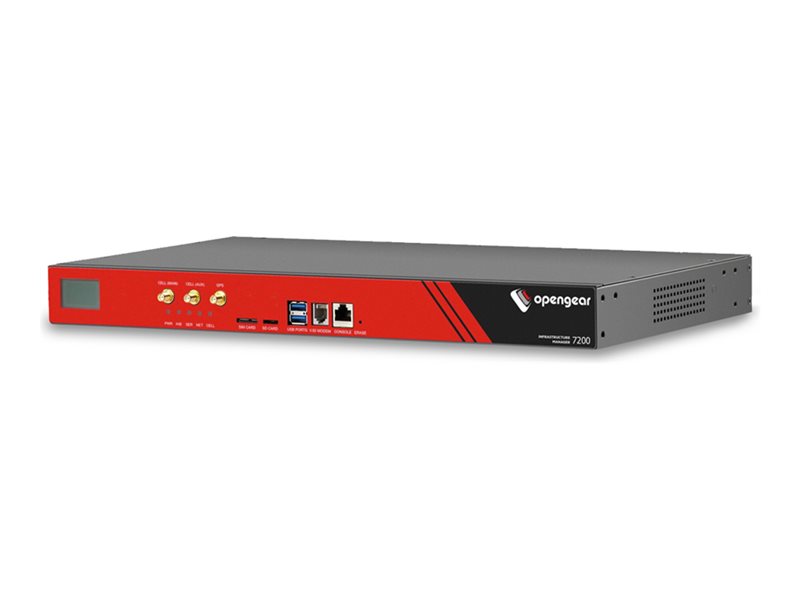

Infrastructure Manager IM7248-2-DAC-LR-EU - 48 serial software selectable, dual AC, Dual 1 GbE Ethernet or fiber SFP, 16GB flash, 4G LTE cellular multi carrier, v.92 modem- EU Power Cord
| Analogue Ports Qty: | 1 |
|---|---|
| Authentication Method: | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory |
| Built-in Devices: | Status LCD |
| Compliant Standards: | TUV, C-Tick, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, UL 1950, R&TTE, RoHS, FIPS 140-2, A-Tick, FCC Part 15 B Class A, PTCRB, ICES-003 issue 4 Class A, AS/NZS CISPR22:2004 Class A, EN55022:1998 + A1:2000 + |
| Connectivity Technology: | Wired |
| Data Link Protocol: | RS-232 |
| Data Transfer Rate: | 230.4 Kbps |
| Depth: | 25.4 cm |
| Device Type: | Console server |
| Encryption Algorithm: | SSL, FIPS 140-2 |
| Features: | VPN support, Syslog support, IP address filtering, Access Control List (ACL) support, DHCPserver, FTPserver, port forwarding, Stateful Packet Inspection Firewall (SPIF), TFTP server, 4KV ESD Protector, Zero-touch provisioning (ZTP), 1500V isolation |
| Flash Memory: | 16 GB |
| Form Factor: | Rack-mountable |
| Height: | 4.5 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 90% |
| Installed Qty: | 2 |
| Interfaces: | 48 x RS-232 - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 2 x Ethernet 1000 - SFP (mini-GBIC) ¦ 2 x USB 3.0 - Type A ¦ 1 x modem - RJ-11 ¦ 3 x aerial - SMA |
| Localisation: | Europe |
| MTBF: | 100,000 hours |
| Manufacturer: | Opengear |
| Max Operating Temperature: | 50 °C |
| Max Supported Qty: | 1, 2 |
| Min Operating Temperature: | 5 °C |
| Mobile Band: | W-CDMA 900/2100 / GSM 900/1800/1900 / LTE 800/900/1800/2100/2600 |
| Mobile Broadband Access: | Yes |
| Mobile Communication Protocol: | GSM, GPRS, EDGE, HSPA+, LTE |
| Network / Transport Protocol: | NTP, IPSec, DHCP, DDNS |
| OS Provided: | Linux |
| Ports Qty: | 48 |
| Power Consumption Operational: | 30 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| Processors Installed: | 1 x Micrel 88F6283 1 GHz |
| Protocols & Specifications: | ITU V.92 |
| RAM: | 256 MB |
| Remote Management Protocol: | SNMP, HTTPS, TFTP, SSH |
| Supported Flash Memory Cards: | SIM card |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Weight: | 4.5 kg |
| Width: | 44 cm |
| GPSR - economic actor: | Digi International, Deutschland, Lise-Meitner-Straße 9, Ismaning, 85737, emea@opengear.com |
|---|---|
| GPSR - product manufacturer: | Digi International, Deutschland, Lise-Meitner-Straße 9, Ismaning, 85737, emea@opengear.com |
| GPSR - EU responsible person: | Digi International, Deutschland, Lise-Meitner-Straße 9, Ismaning, 85737, emea@opengear.com |
| EU Data-Act-Url: | https://de.digi.com/legal |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
