HPE P55242-B21

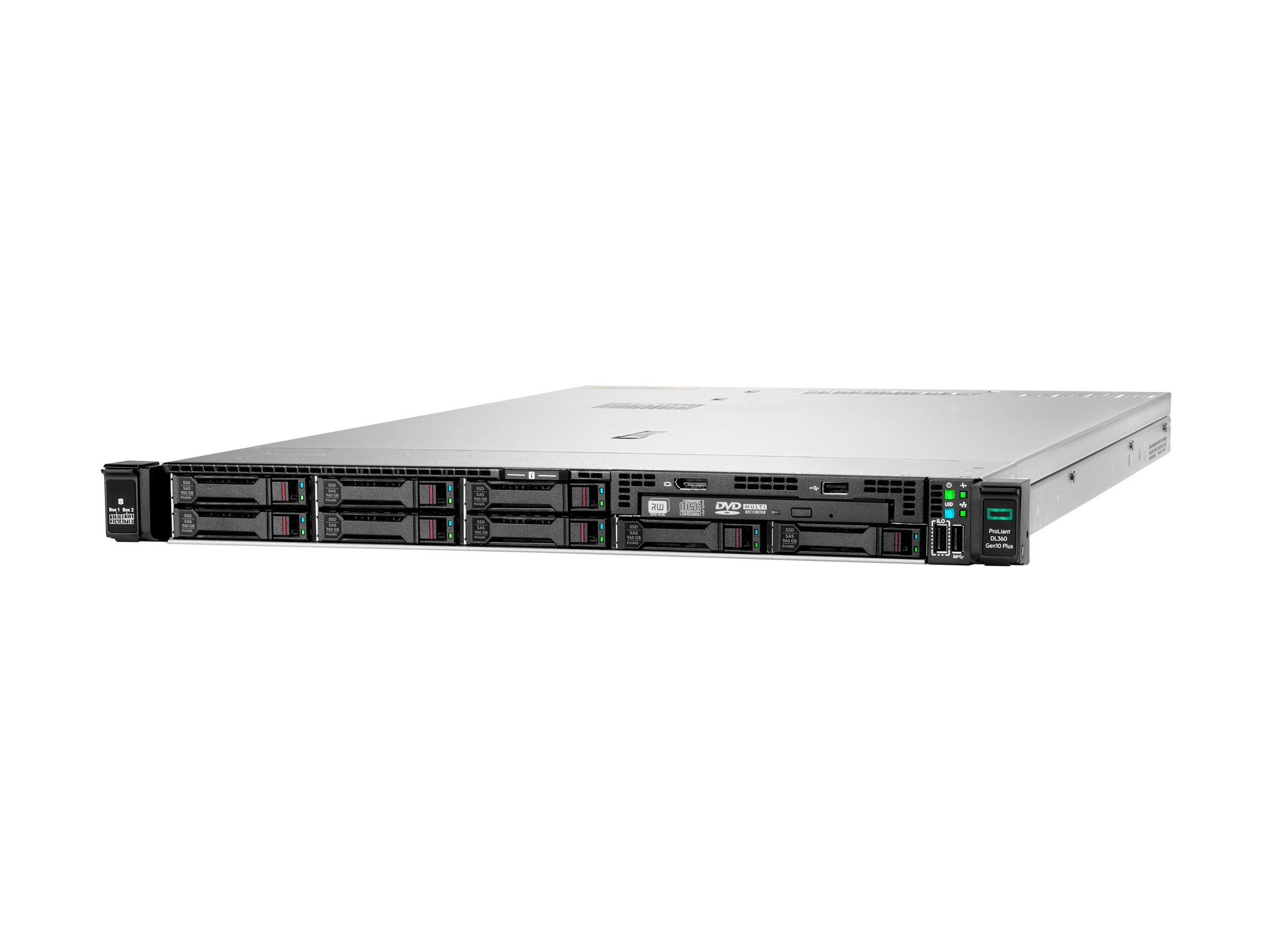

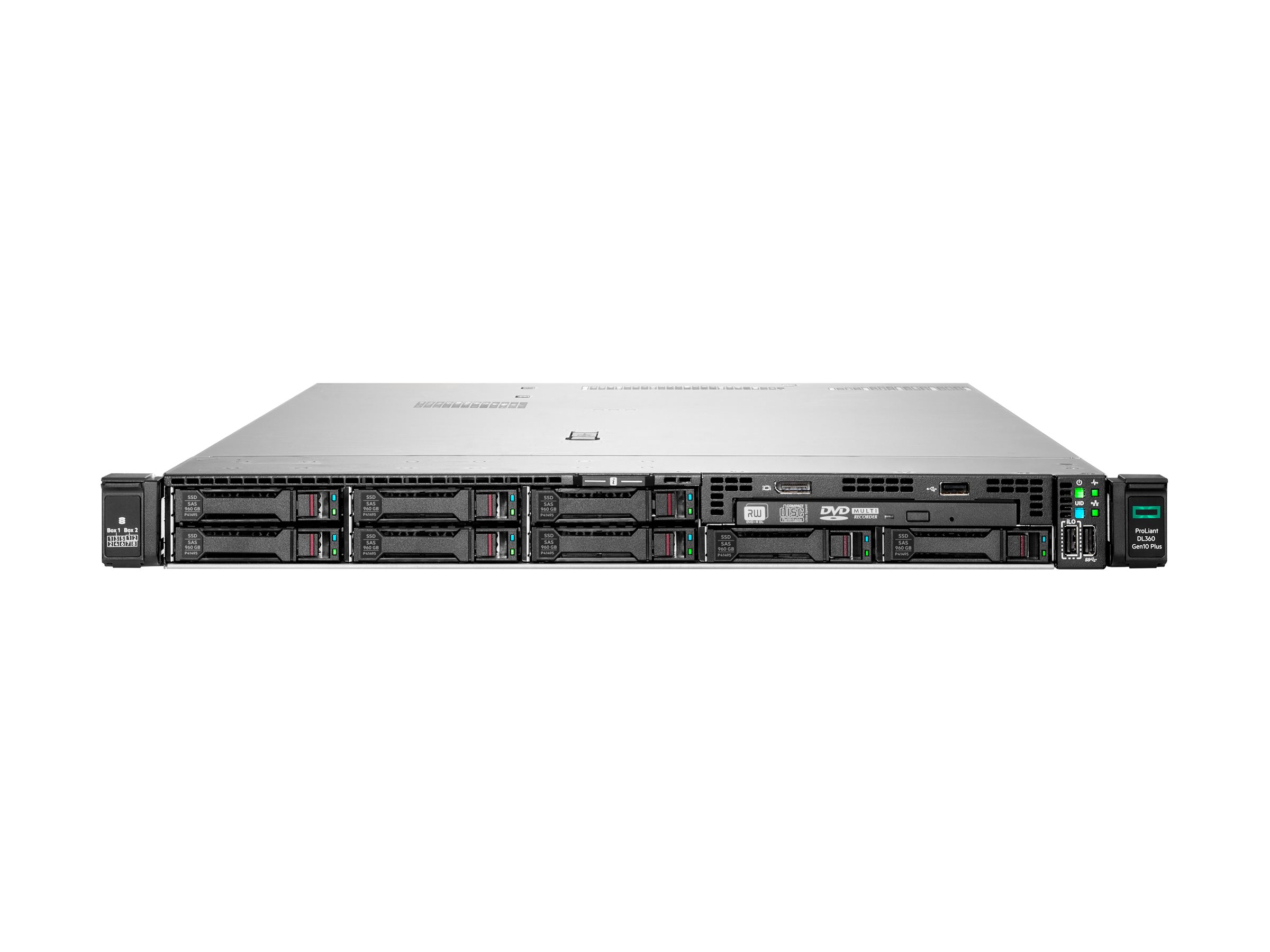

HPE DL360 G10+ 4314 MR416I-A NC 8SFF Server
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HPE DL360 G10+ 4314 MR416I-A NC 8SFF Server
| Bays: | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
|---|---|
| Buffer Size: | 4 GB |
| CPU: | Intel Xeon Silver 4314 |
| CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| Cache Per Processor: | 24 MB |
| Chipset Type: | Intel C621A |
| Clock Speed: | 2.4 GHz |
| Compliant Standards: | WEEE, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2 |
| Configuration Features: | 1 x 32 GB |
| Data Link Protocol: | 10 Gigabit Ethernet |
| Depth: | 76.96 cm |
| Device Type: | Power supply - hot-plug |
| Effective Memory Speed: | 2933 MHz |
| Embedded Security: | Trusted Platform Module (TPM) Security Chip |
| Ethernet Controller: | Broadcom BCM57416 |
| Ethernet Ports: | 2 x 10 Gigabit Ethernet |
| Features: | Wake on LAN (WoL), PXE support |
| Form Factor: | DIMM 288-pin |
| Height: | 4.29 cm |
| Hot-Swap Bays Qty: | 8 |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | HPE Easy Install Rails, CPU standard heatsink, 7 x high performance fans, 31 x DIMM blanks |
| Installed Qty: | 1 |
| Installed Size: | L3 Cache - 24 MB |
| Interface (Bus) Type: | Open Compute Project mezzanine (OCP) 3.0 |
| Interfaces: | 3 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x HPE iLO (1 in front) (service port) ¦ 1 x USB 2.0 (1 in front) ¦ 1 x VGA ¦ 1 x HPE iLO ¦ 2 x LAN (10Gigabit Ethernet) |
| Localisation: | Region: Worldwide |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Max Turbo Speed: | 3.4 GHz |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| Number of Cores: | 16-core |

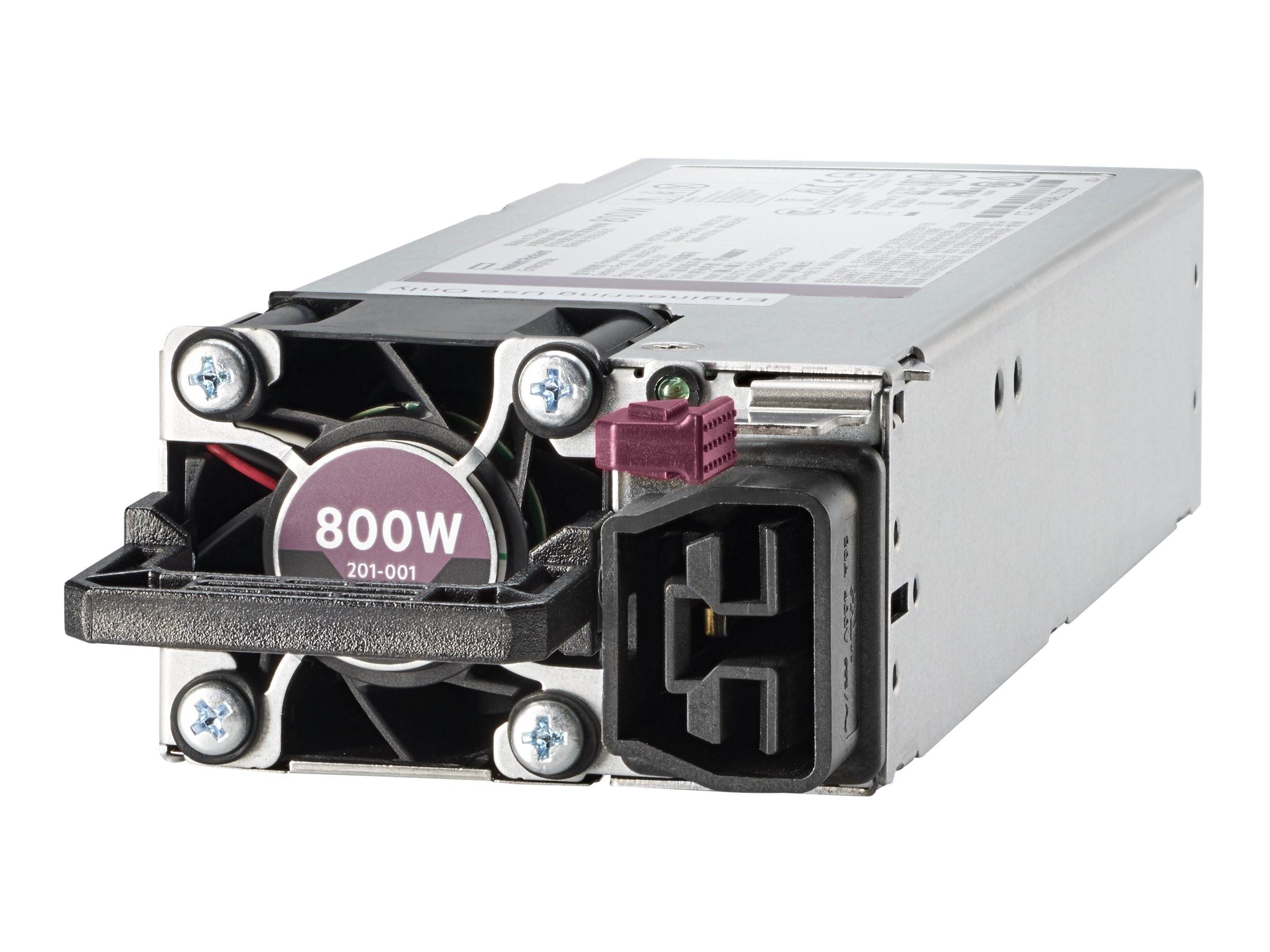

| Power Provided: | 800 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Product Form Factor: | Rack-mountable - 1U |
| Rated Memory Speed: | 3200 MHz |

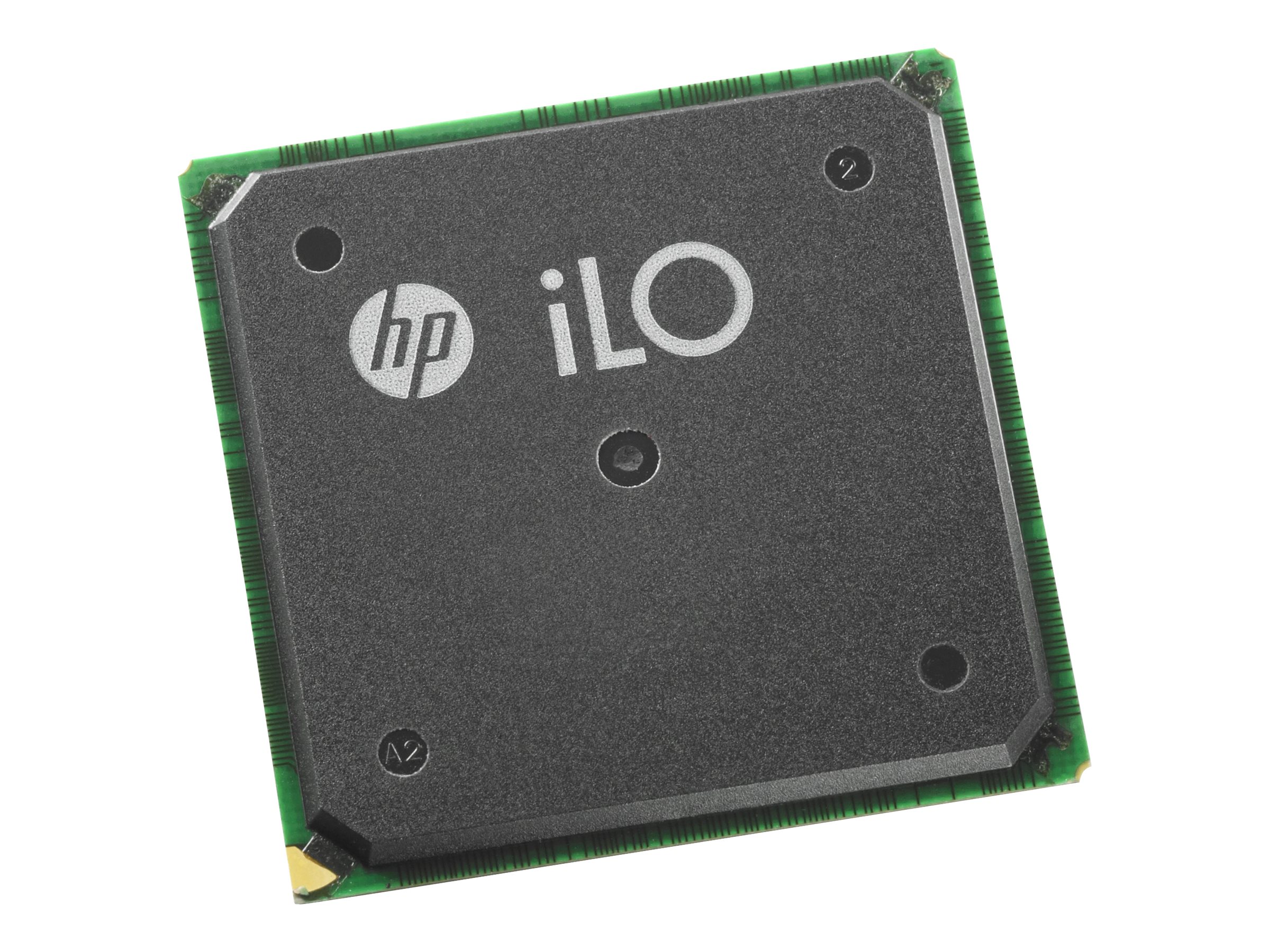

| Remote Management Controller: | Integrated Lights-Out 5 |
| Server Scalability: | 2-way |
| Slots: | 1 (total) / 1 (free) x PCIe 4.0 x16 - full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile (x16 mode) |
| Technology: | DDR4 SDRAM |
| Type: | No optical drive |
| Version: | original |
| Video Interfaces: | VGA |
| Video Memory: | 16 MB |
| Voltage Required: | AC 120/230 V |
| Weight: | 13.04 kg |
| Width: | 43.46 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| : | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
