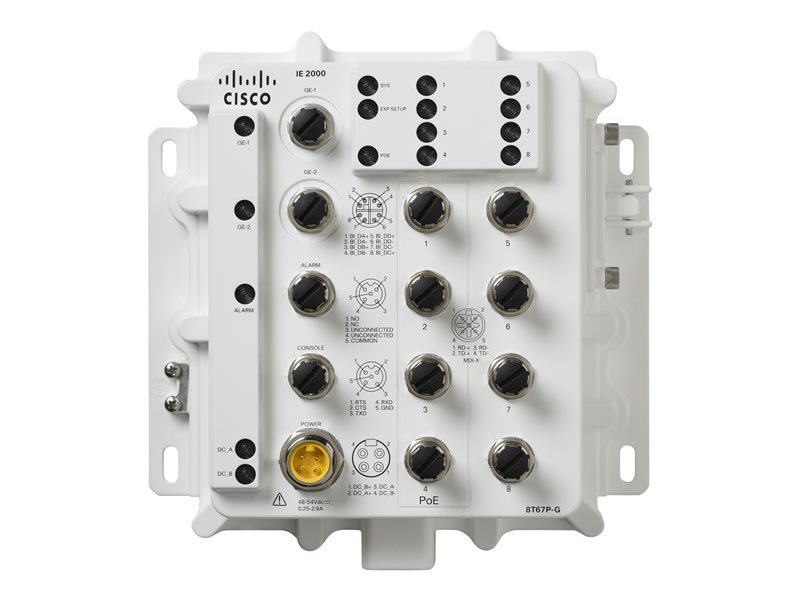

Cisco IE-2000-8T67P-G-E
IE2000 IP67 with 8 FE M12 ports (8 PoE) and 2GE (Lan Base)
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
IE2000 IP67 with 8 FE M12 ports (8 PoE) and 2GE (Lan Base)
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Capacity: | IGMP groups: 255 ¦ VLANs supported: 1005 |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, NEMA Type 4, UL 60950-1, IEC 60950-1, EN 60950- |
| Depth: | 9.9 cm |
| Device Type: | Switch - 8 ports - Managed |
| Enclosure Type: | Wall-mountable |
| Expansion Slots: | 1 (total) / 1 (free) x SD Memory Card |
| Features: | NAT support, BOOTP support, ARP support, Cisco Fast EtherChannel, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Pr |
| Flash Memory: | 64 MB |
| Height: | 24.17 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 8 x 100Base-TX M12 PoE+ ¦ 2 x 1000Base-T M12 uplink ¦ 1 x console M12 |
| MAC Address Table Size: | 8K entries |
| MTBF: | 374,052 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 60 °C |
| Max Storage Temperature: | 85 °C |
| Min Operating Temperature: | -40 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Forwarding performance (64-byte packet size): 6.5 Mpps |
| Ports: | 8 x 10/100 (PoE+) + 2 x 10/100/1000 |
| Power Consumption Operational: | 73 Watt |
| Power Over Ethernet (PoE): | PoE+ |
| RAM: | 256 MB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH |
| Routing Protocol: | OSPF, RIP, BGP, static IPv4 routing, static IPv6 routing |
| Software Included: | Cisco IOS LAN Enhanced |
| Subtype: | Fast Ethernet |
| Version: | original |
| Weight: | 3.26 kg |
| Width: | 23.67 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
