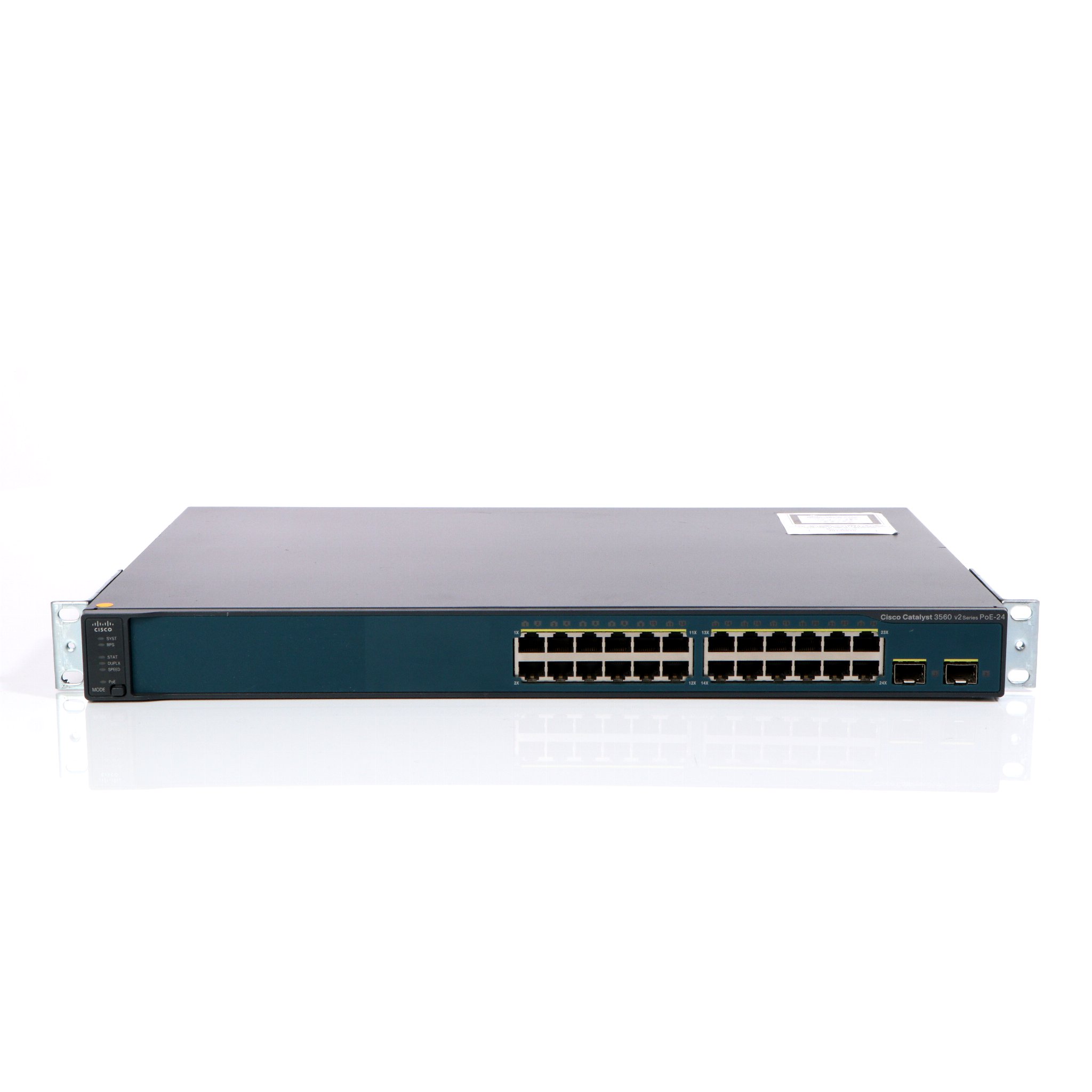

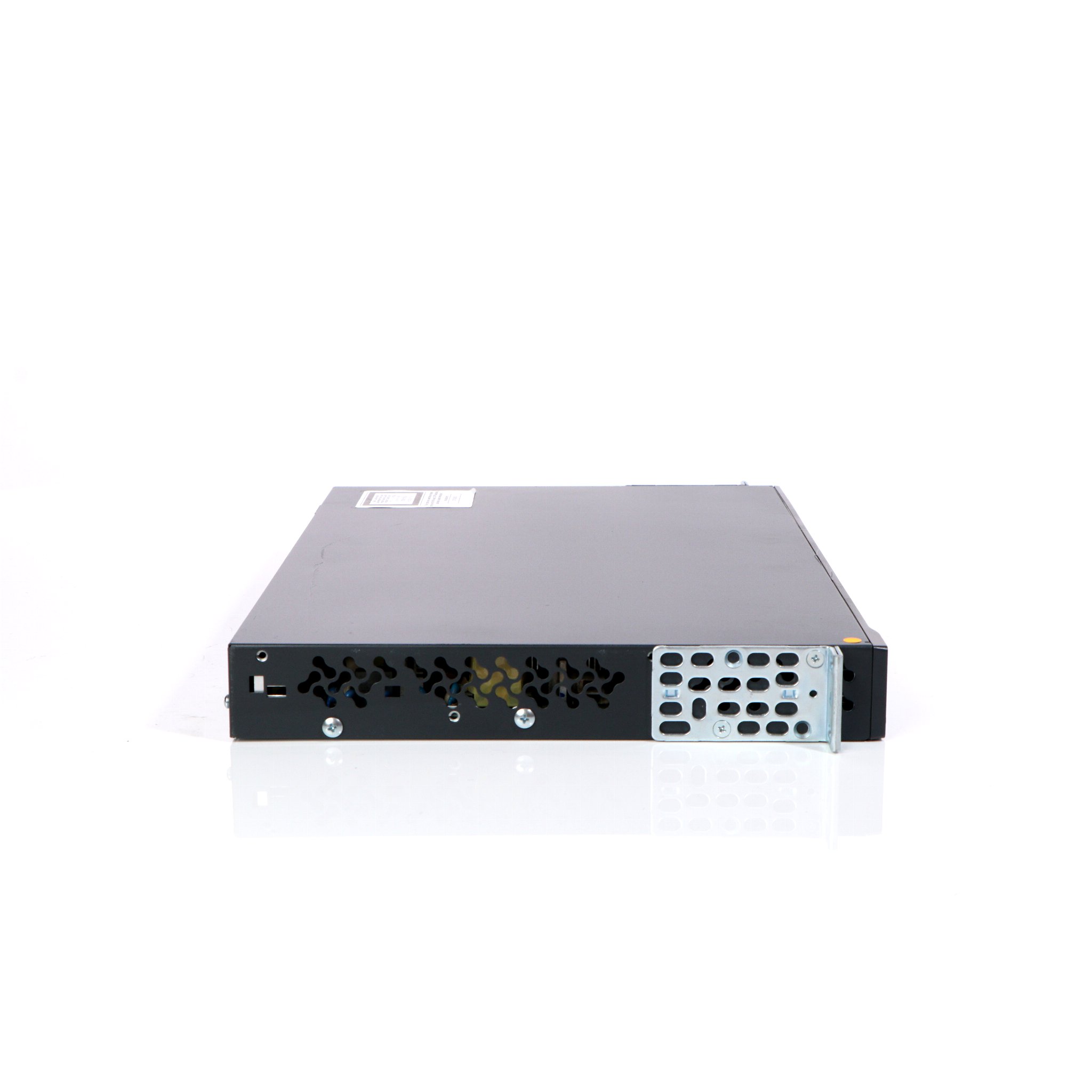

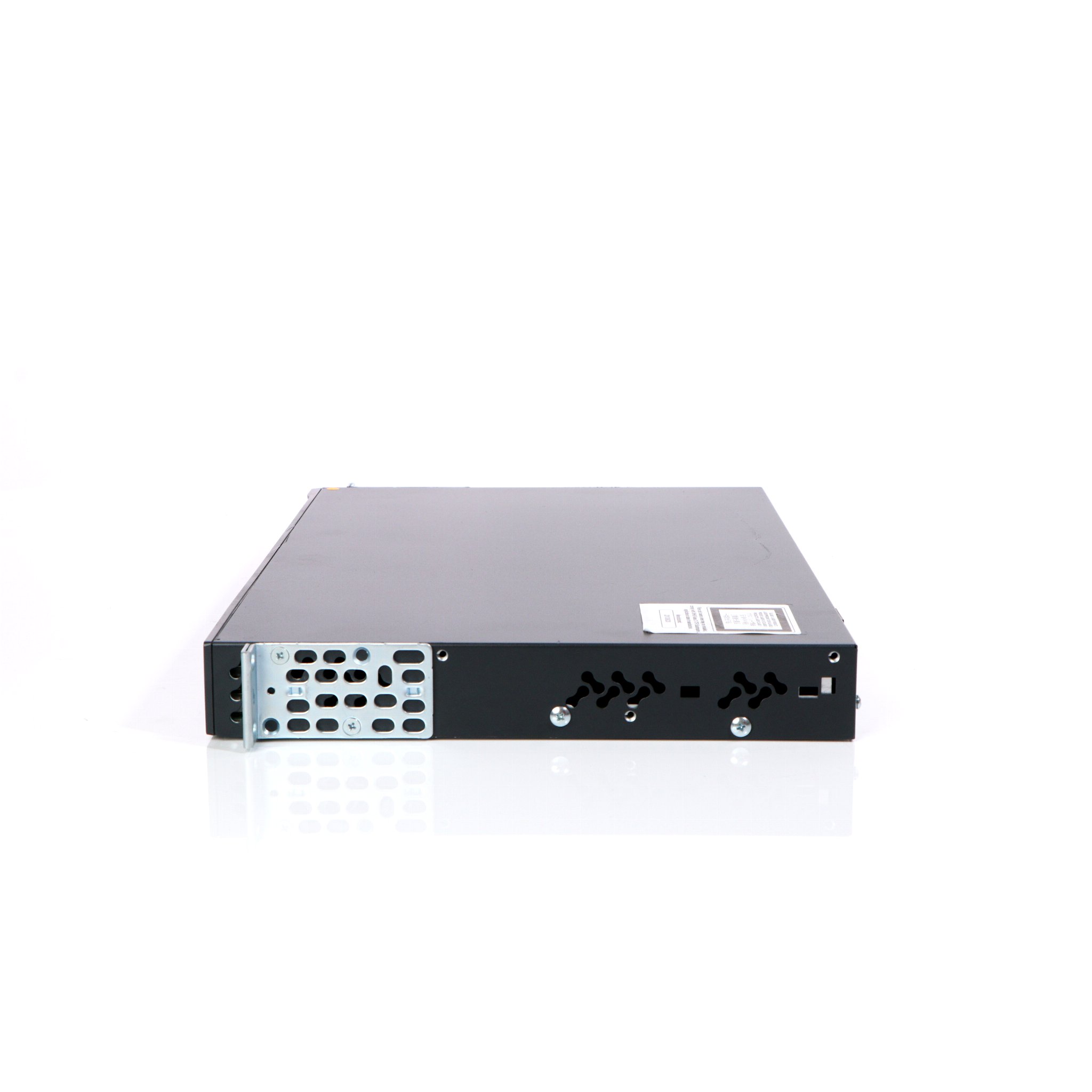

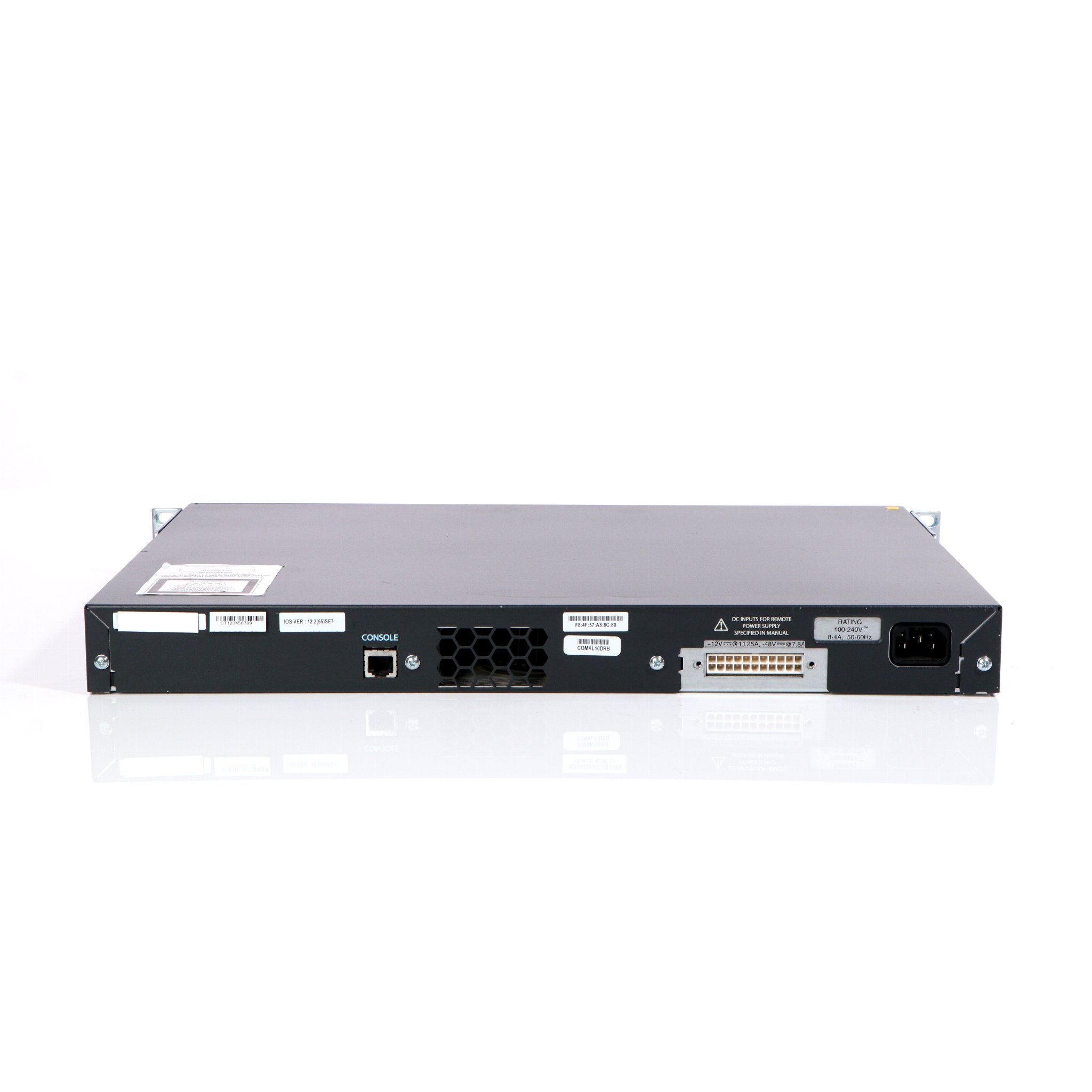

Cisco WS-C3560V2-24PS-E
Catalyst 3560V2 24 10/100 PoE 2 SFP IPS (Enhanced) Image
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 3560V2 24 10/100 PoE 2 SFP IPS (Enhanced) Image
| Authentication Method: | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CSA 22.2 No. 60950, EMC, FCC Part 15, UL 60950-1, IEC 60950-1 |
| Depth: | 29.5 cm |
| Device Type: | Switch - 24 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, Layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, event log, DHCP snoopin |
| Features: | Redundant Power System (RPS) connector |
| Flash Memory: | 32 MB Flash |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 85% |
| Interfaces: | 24 x 100Base-TX RJ-45 PoE ¦ 1 x console RJ-45 management ¦ 2 x SFP (mini-GBIC) |
| MAC Address Table Size: | 12K entries |
| MTBF: | 275,360 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 45 °C |
| Min Operating Temperature: | 0 °C |
| Ports: | 24 x 10/100 (PoE) + 2 x SFP |
| Power Consumption Operational: | 435 Watt |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2 |
| Routing Protocol: | OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, static IP routing, PIM-DM, policy-based routing (PBR) |
| Software Included: | Cisco IOS IP Services |
| Status Indicators: | Port status, port transmission speed, port duplex mode, status, link/activity |
| Subtype: | Fast Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 4.6 kg |
| Width: | 44.3 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
