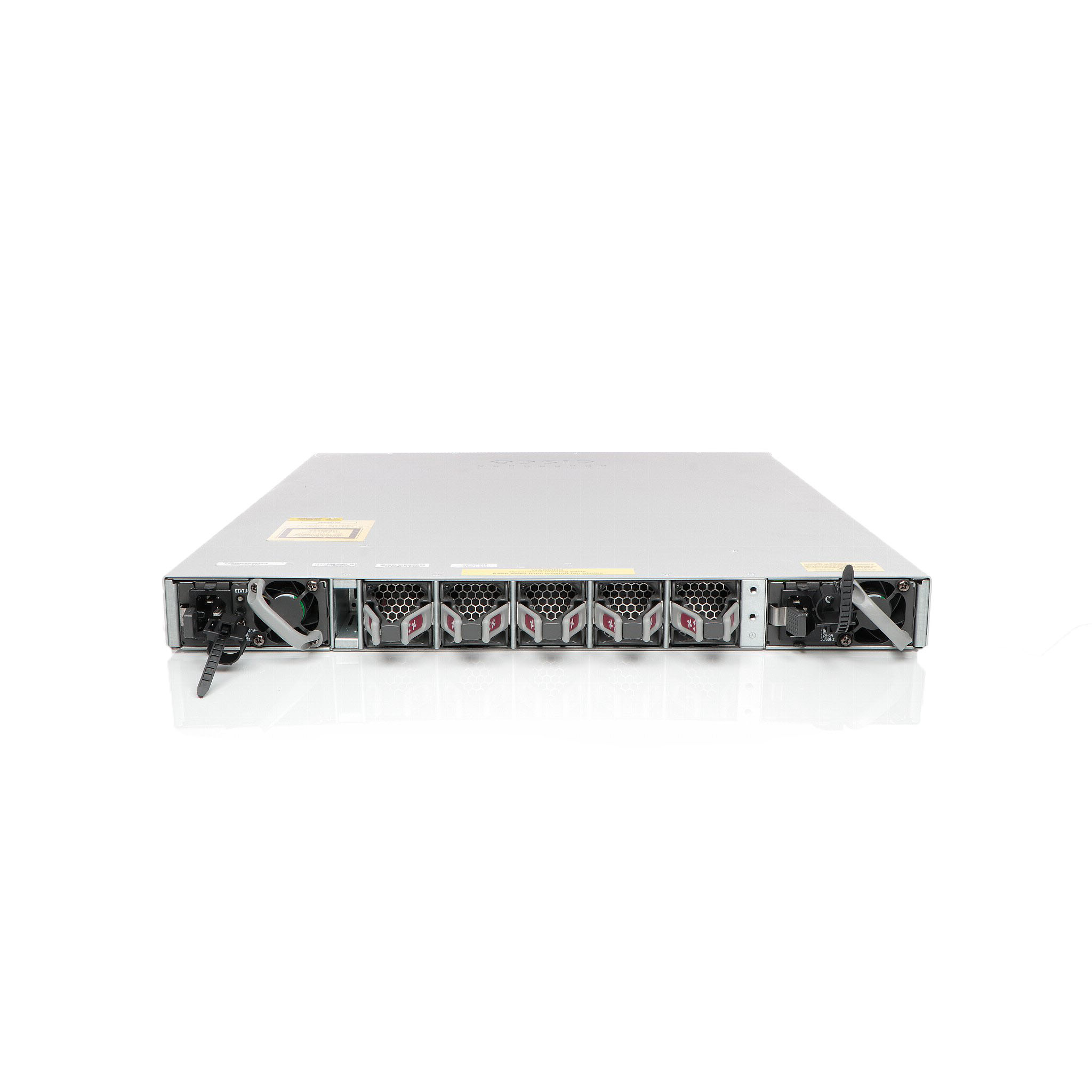

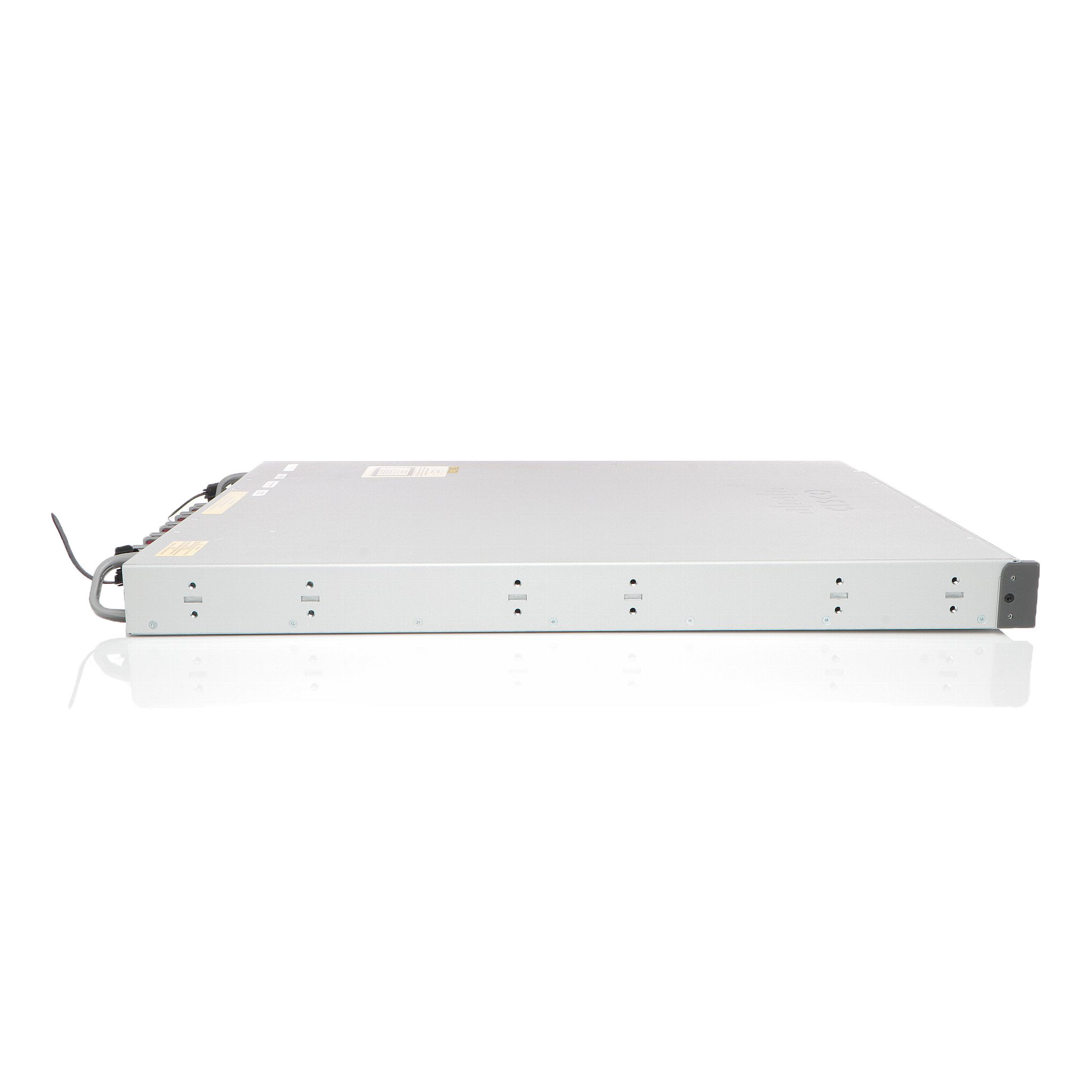

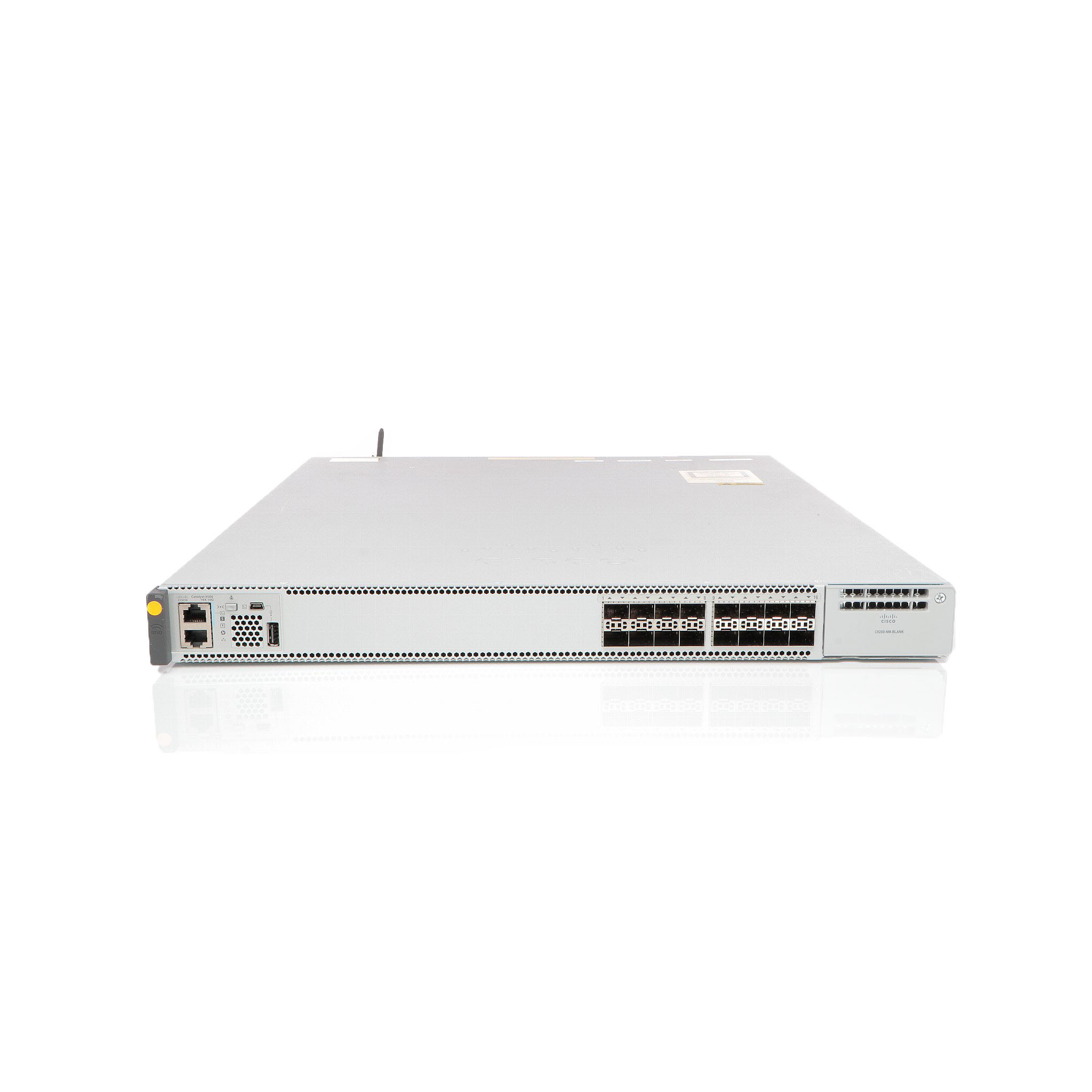

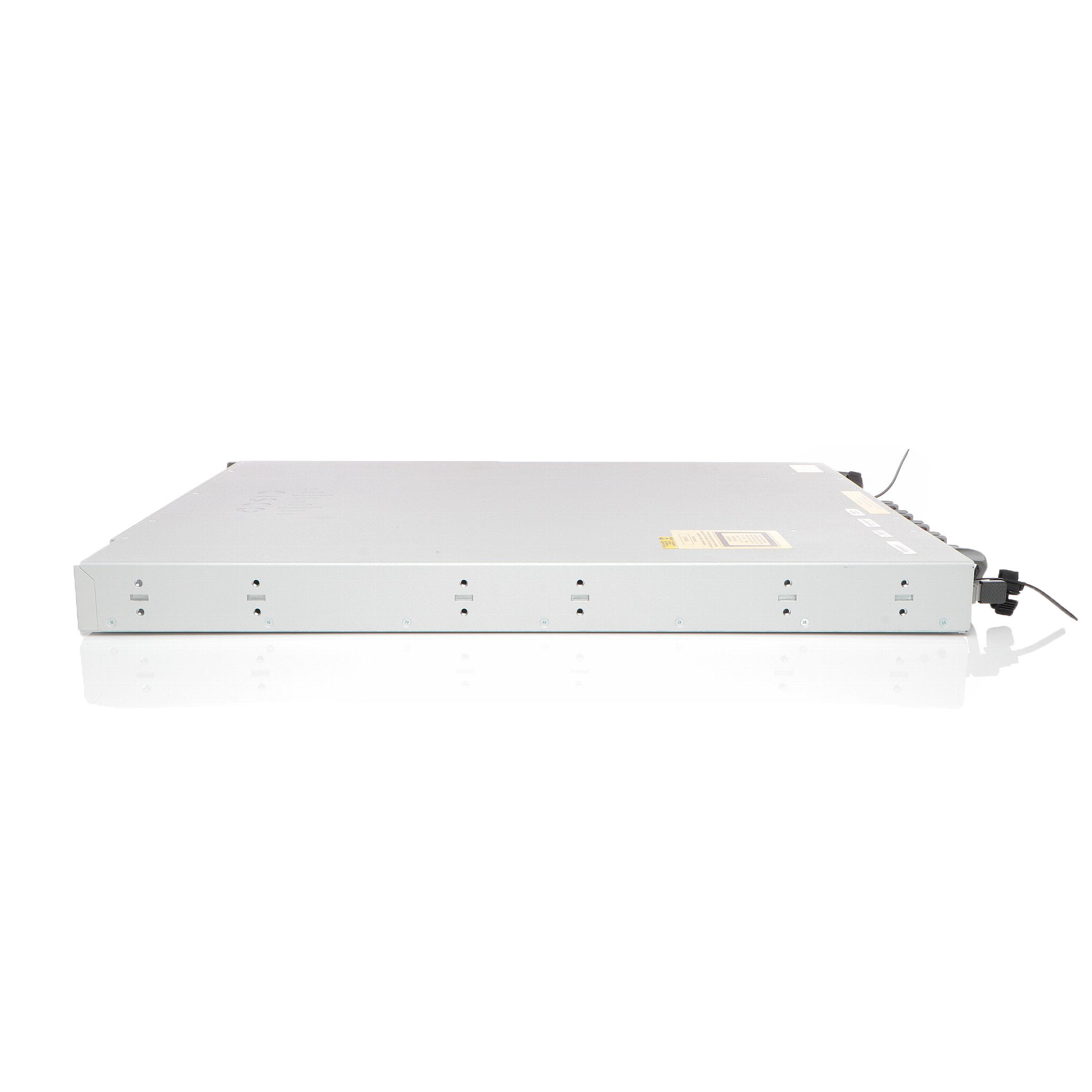

Cisco C9500-16X-A
Catalyst 9500 16-port 10Gig switch, Network Advantage
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 9500 16-port 10Gig switch, Network Advantage
| Built-in Devices: | RFID tag |
|---|---|
| Capacity: | Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 80000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 40000 ¦ Multicast scale: 16000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC |
| Depth: | 44.5 cm |
| Device Type: | Switch - 16 ports - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Encryption Algorithm: | 256-bit AES |
| Features: | DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) su |
| Features: | Front-to-rear airflow |
| Flash Memory: | 16 GB |
| Height: | 54.7 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Important product information: | The DNA licence is not included in the scope of delivery and must be ordered separately. Please contact your sales manager. |
| Installed Qty: | 2 |
| Interfaces: | 16 x 10Gbit LAN RJ-45 ¦ 2 x 10GBase-X SFP+ |
| Jumbo Frame Support: | 9198 bytes |
| MAC Address Table Size: | 64K entries |
| MTBF: | 315,790 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 65 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -20 °C |
| Performance: | Switching capacity (full duplex): up to 480 Gbps ¦ Forwarding rate: up to 360 Mpps |
| Ports: | 16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ |

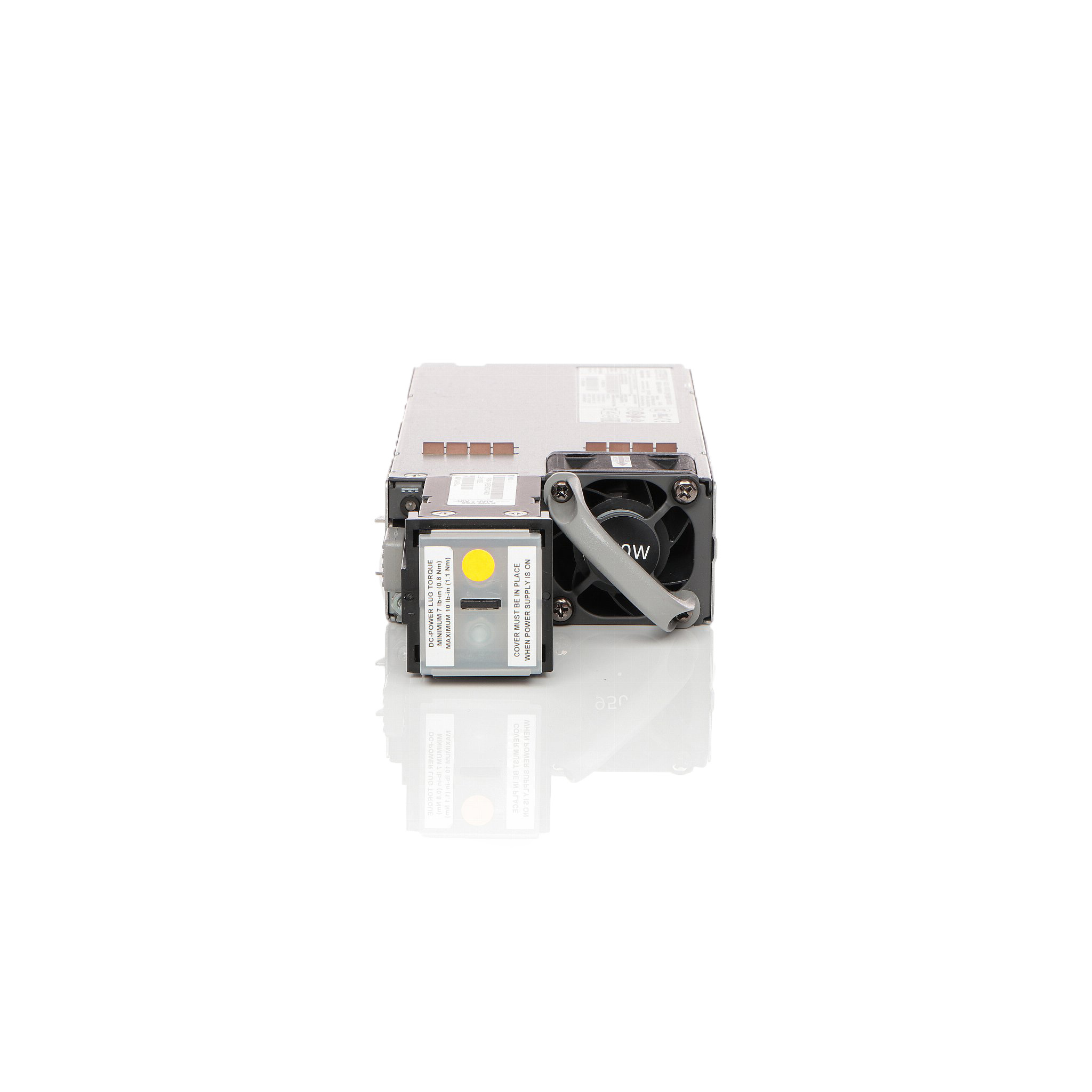

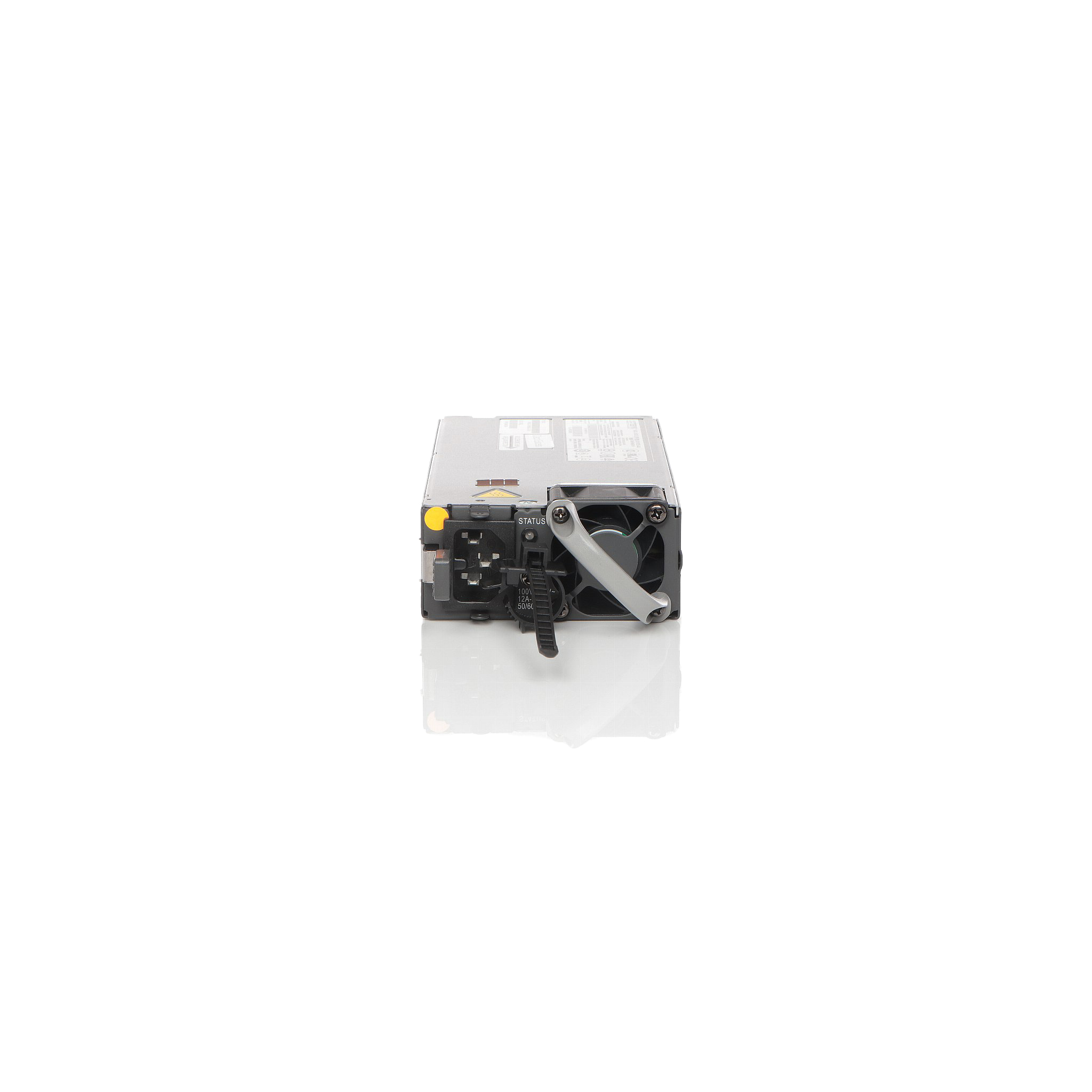

| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 950 Watt |
| Power Redundancy: | Yes |
| Processor: | 1: 2.4 GHz |
| RAM: | 16 GB |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, TFTP, NETCONF, RESTCONF |
| Routing Protocol: | OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng |
| Software Included: | Cisco IOS Universal |
| Status Indicators: | Status |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 10.7 kg |
| Width: | 4.39 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Important product information
The DNA licence is not included in the scope of delivery and must be ordered separately. Please contact your sales manager.
