Cisco C9500-24Q-E
Catalyst 9500 24-port 40G switch, Network Essentials
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 9500 24-port 40G switch, Network Essentials
| Built-in Devices: | RFID tag |
|---|---|
| Capacity: | Routing table entries: 64000 ¦ Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, |
| Depth: | 54.7 cm |
| Device Type: | Switch - 24 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Encryption Algorithm: | 256-bit AES |
| Features: | IGMP snooping, Syslog support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Weighted Random Early Detection (WRED), Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD s |
| Features: | Front-to-rear airflow |
| Flash Memory: | 16 GB |
| Height: | 4.39 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Important product information: | The DNA licence is not included in the scope of delivery and must be ordered separately. Please contact your sales manager. |
| Installed Qty: | 1 |
| Interfaces: | 24 x 40Gbit LAN QSFP ¦ 2 x USB 3.0 |
| Jumbo Frame Support: | 9198 bytes |
| MAC Address Table Size: | 64K entries |
| MTBF: | 127,660 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 65 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -20 °C |
| Performance: | Switching capacity (full duplex): 960 Gbps ¦ Forwarding rate: 1440 Mpps |
| Ports: | 24 x 40 Gigabit QSFP |

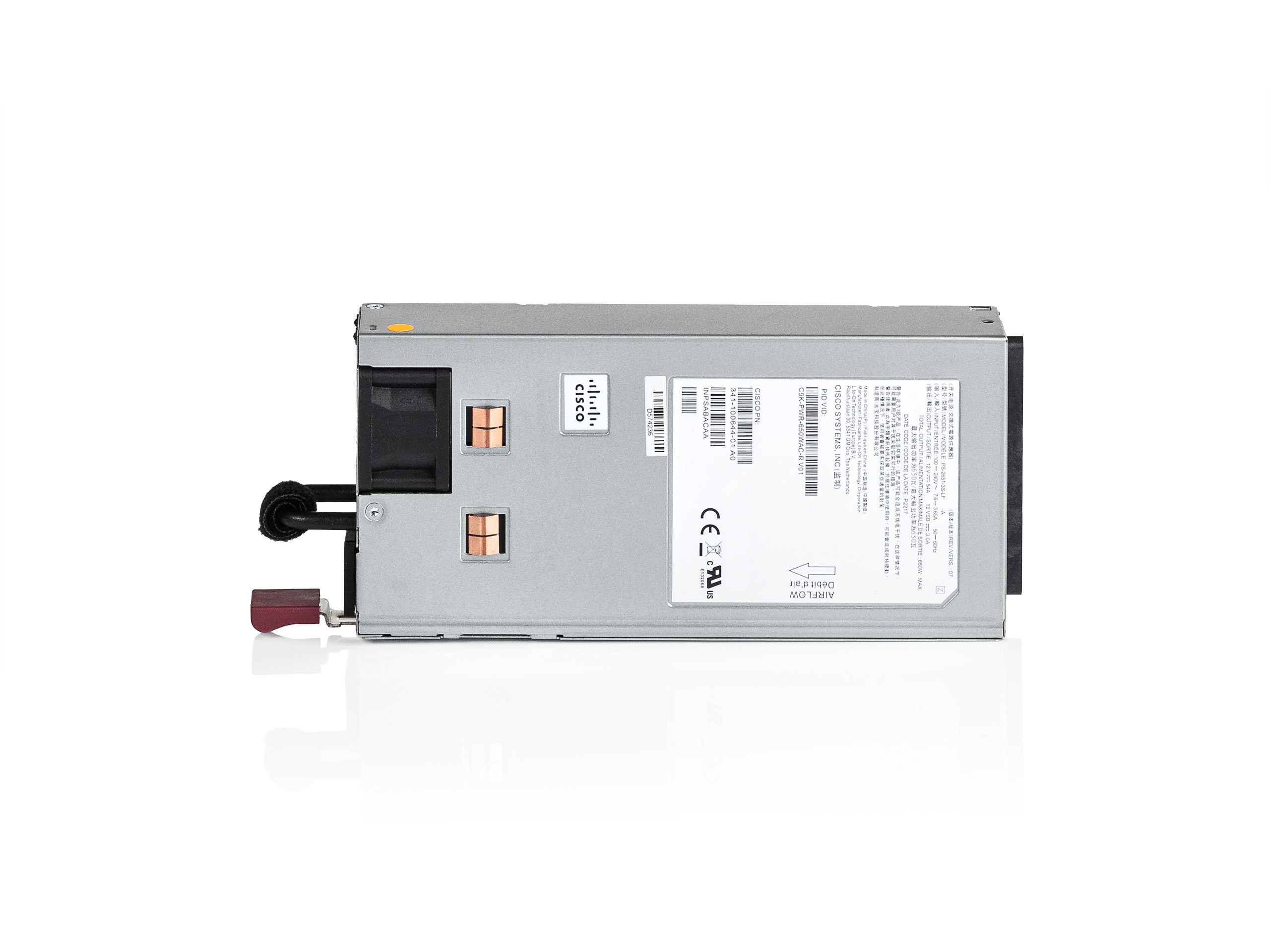

| Power Device: | Internal power supply - hot-plug |
| Power Over Ethernet (PoE): | UPOE |
| Power Provided: | 950 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 |
| Processor: | 1: 2.4 GHz |
| RAM: | 16 GB - DIMM 288-pin - DDR4 SDRAM |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF |
| Routing Protocol: | OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, RIPng, MPLS |
| Subtype: | 40 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Important product information
The DNA licence is not included in the scope of delivery and must be ordered separately. Please contact your sales manager.
