Cisco N9K-C9348GC-FX3
Nexus 9300 with 48p 100M/1GT, 4p 10/25G and 2p 40/100G QSFP28

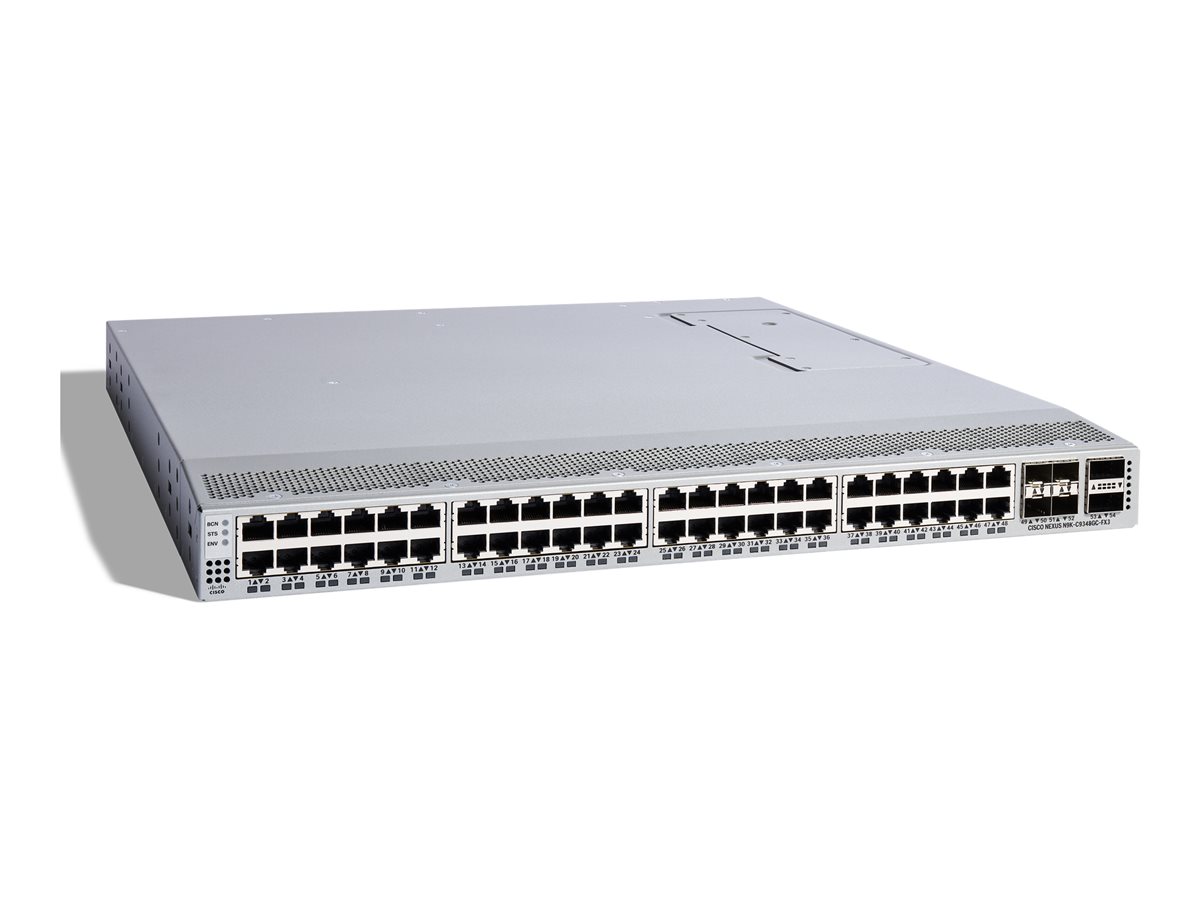

Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 9300 with 48p 100M/1GT, 4p 10/25G and 2p 40/100G QSFP28
| Built-in Devices: | 128 GB SSD, 3 x fans |
|---|---|
| Capacity: | Buffer capacity (MB): 40 ¦ Forwarding table entries: 2000000 ¦ ACL entries: 56000 ¦ IPv4 longest prefix match (LPM) routes: 1792000 ¦ IPv6 longest prefix match (LPM) routes: 896000 ¦ Host table entries (IPv4): 1792000 ¦ Host table entries (IPv6): 1792000 |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, WEEE, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Cla, IEEE 802.1ae |
| Depth: | 49.9 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | NAT support, WRED, DCBX support, DCB, vPC technology, RoCE, ISSU, ECN, PFC, SSM, SDN, POAP, ETS, MACsec, AFD, ETRAP, DPP, Cisco ACI Spine and Leaf support, MPLS traffic engineering, SR, DME, SMU |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 48 x 10/100/1000 Base-T RJ-45 downlink ¦ 4 x 1/10/25GBase-X SFP28 uplink ¦ 2 x 40/100GBase-X QSFP28 uplink ¦ 1 x management RJ-45 ¦ 1 x management SFP+ ¦ 1 x USB |
| MAC Address Table Size: | 512K entries |
| MTBF: | 283,670 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| OS Required: | Cisco NX-OS 10.4.1 or later |
| Performance: | Bandwidth: 696 Gbps ¦ Packets per second: 517 Mpps |
| Ports: | 48 x 10/100/1000Base-T + 4 x 1/10/25 Gigabit SFP28 + 2 x 40/100 Gigabit QSFP28 |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | N+1 |
| RAM: | 32 GB |
| Remote Management Protocol: | HTTP, HTTPS, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG |
| Routing Protocol: | OSPF, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS, STP, VXLAN |
| Status Indicators: | Port status, status, environment, beaconing |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Weight: | 6.5 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Nexus 9300 with 48p 100M/1GT, 4p 10/25G and 2p 40/100G QSFP28
| Built-in Devices: | 128 GB SSD, 3 x fans |
|---|---|
| Capacity: | Buffer capacity (MB): 40 ¦ Forwarding table entries: 2000000 ¦ ACL entries: 56000 ¦ IPv4 longest prefix match (LPM) routes: 1792000 ¦ IPv6 longest prefix match (LPM) routes: 896000 ¦ Host table entries (IPv4): 1792000 ¦ Host table entries (IPv6): 1792000 |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, WEEE, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Cla, IEEE 802.1ae |
| Depth: | 49.9 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | NAT support, WRED, DCBX support, DCB, vPC technology, RoCE, ISSU, ECN, PFC, SSM, SDN, POAP, ETS, MACsec, AFD, ETRAP, DPP, Cisco ACI Spine and Leaf support, MPLS traffic engineering, SR, DME, SMU |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 48 x 10/100/1000 Base-T RJ-45 downlink ¦ 4 x 1/10/25GBase-X SFP28 uplink ¦ 2 x 40/100GBase-X QSFP28 uplink ¦ 1 x management RJ-45 ¦ 1 x management SFP+ ¦ 1 x USB |
| MAC Address Table Size: | 512K entries |
| MTBF: | 283,670 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| OS Required: | Cisco NX-OS 10.4.1 or later |
| Performance: | Bandwidth: 696 Gbps ¦ Packets per second: 517 Mpps |
| Ports: | 48 x 10/100/1000Base-T + 4 x 1/10/25 Gigabit SFP28 + 2 x 40/100 Gigabit QSFP28 |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | N+1 |
| RAM: | 32 GB |
| Remote Management Protocol: | HTTP, HTTPS, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG |
| Routing Protocol: | OSPF, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS, STP, VXLAN |
| Status Indicators: | Port status, status, environment, beaconing |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Weight: | 6.5 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
