Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Built-in Devices: | 120 GB SSD |
| Capacity: | Host IPv4 routes: 1300000 ¦ Host IPv6 routes (Unicast): 440000 ¦ IPv4 routes (Unicast LPM): 1300000 ¦ IPv6 routes (Unicast LPM): 440000 ¦ LAG groups: 1152 ¦ Virtual interfaces (VLANs): 4096 ¦ Multicast routes: 128000 ¦ ACL entries: 24000 ¦ Ports per MLAG: |
| Compliant Standards: | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 1588-2008, IEEE 802.3by, IEEE 802.3bs, IEEE 802.3cm, VCCI, C-Tick, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, CCC, EMC, FCC, UL 60950-1, IEC 60950-1, KC, NRTL, EAC, RoHS 2011/65/EU, EMC 2004/108/EC, LVD 2006/95/EC, WEEE 2012/19/EU, EN 300 386, EN 62368-1, IEC 62368-1, EN 55032, EN 55035, CSA 60950-1 |
| Depth: | 55.83 cm |

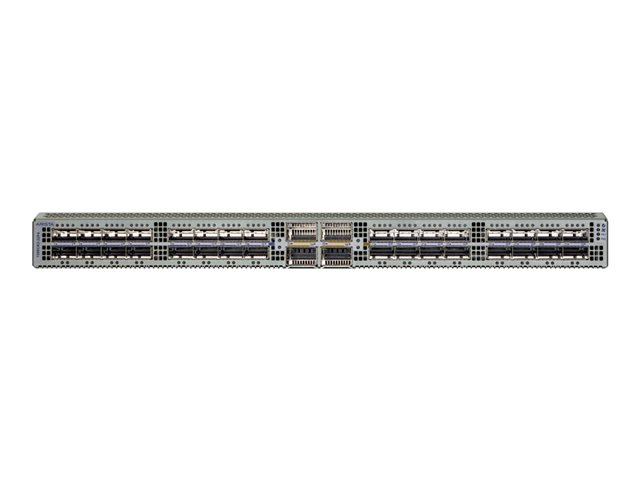

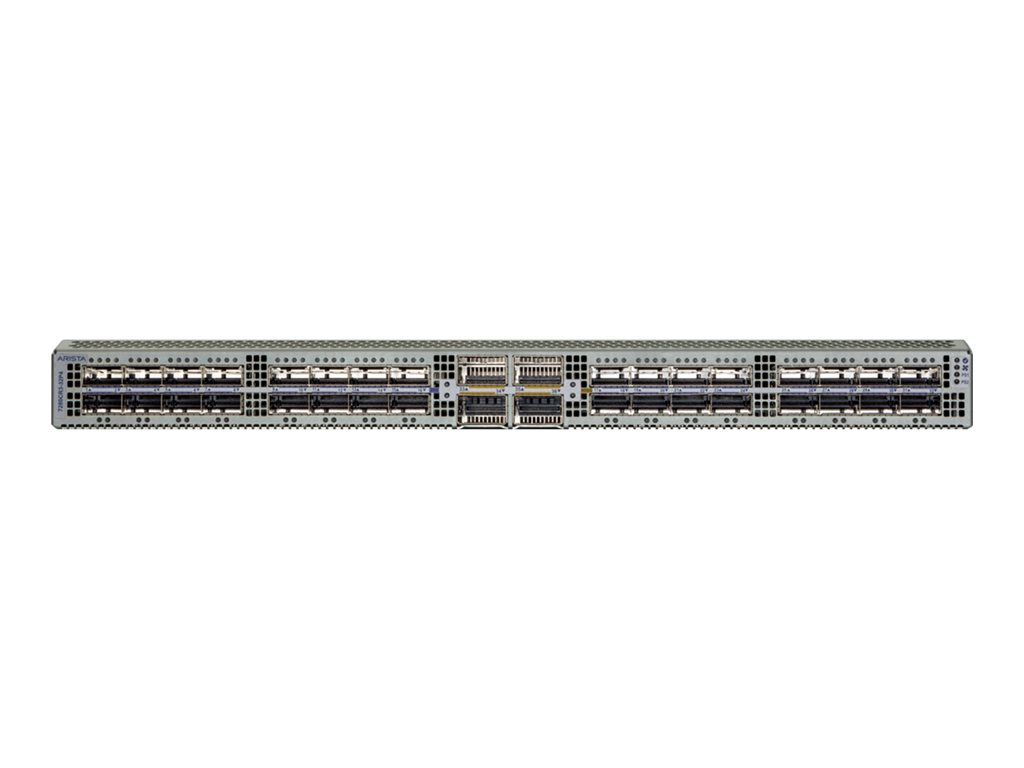

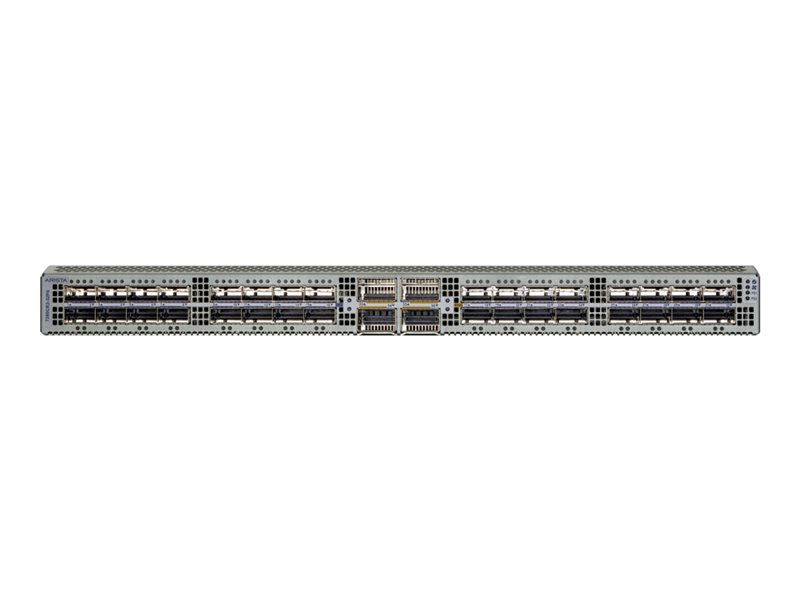

| Device Type: | Switch - 32 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, routing, ARP support, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, event log, DHCP snooping, ACL support, QoS, ECMP, BFD, Rapid PVST+, IPv4 support, LLDP support, DHCP relay, LACP, MIB, VRF, |
| Flash Memory: | 8 GB |
| Height: | 4.37 cm |
| Humidity Range Operating: | 5 - 95% |
| Interfaces: | 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 4 x 400Gbit LAN QSFP uplink ¦ 32 x 400Gbit LAN OSFP ¦ 1 x USB |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 224000 entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 4.8 Tbps ¦ Packets per second: 2 Bpps ¦ Latency: 3.8 µs |
| Ports: | 32 x 100 Gigabit QSFP + 4 x 400 Gigabit OSFP (uplink) |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Optional |
| RAM: | 8 GB (installed) / 64 GB (max) |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, Bidirectional PIM, MSDP, ECMP, policy-based routing (PBR), MLDv2, Bidirectional Forwarding Detection (BFD), URPF, Virtual ARP |
| Subtype: | 100 Gigabit Ethernet |
| Version: | original |
| Weight: | 12.27 kg |
| Width: | 43.99 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Built-in Devices: | 120 GB SSD |
| Capacity: | Host IPv4 routes: 1300000 ¦ Host IPv6 routes (Unicast): 440000 ¦ IPv4 routes (Unicast LPM): 1300000 ¦ IPv6 routes (Unicast LPM): 440000 ¦ LAG groups: 1152 ¦ Virtual interfaces (VLANs): 4096 ¦ Multicast routes: 128000 ¦ ACL entries: 24000 ¦ Ports per MLAG: |
| Compliant Standards: | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 1588-2008, IEEE 802.3by, IEEE 802.3bs, IEEE 802.3cm, VCCI, C-Tick, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, CCC, EMC, FCC, UL 60950-1, IEC 60950-1, KC, NRTL, EAC, RoHS 2011/65/EU, EMC 2004/108/EC, LVD 2006/95/EC, WEEE 2012/19/EU, EN 300 386, EN 62368-1, IEC 62368-1, EN 55032, EN 55035, CSA 60950-1 |
| Depth: | 55.83 cm |
| Device Type: | Switch - 32 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, routing, ARP support, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, event log, DHCP snooping, ACL support, QoS, ECMP, BFD, Rapid PVST+, IPv4 support, LLDP support, DHCP relay, LACP, MIB, VRF, |
| Flash Memory: | 8 GB |
| Height: | 4.37 cm |
| Humidity Range Operating: | 5 - 95% |
| Interfaces: | 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 4 x 400Gbit LAN QSFP uplink ¦ 32 x 400Gbit LAN OSFP ¦ 1 x USB |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 224000 entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 4.8 Tbps ¦ Packets per second: 2 Bpps ¦ Latency: 3.8 µs |
| Ports: | 32 x 100 Gigabit QSFP + 4 x 400 Gigabit OSFP (uplink) |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Optional |
| RAM: | 8 GB (installed) / 64 GB (max) |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, Bidirectional PIM, MSDP, ECMP, policy-based routing (PBR), MLDv2, Bidirectional Forwarding Detection (BFD), URPF, Virtual ARP |
| Subtype: | 100 Gigabit Ethernet |
| Version: | original |
| Weight: | 12.27 kg |
| Width: | 43.99 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
