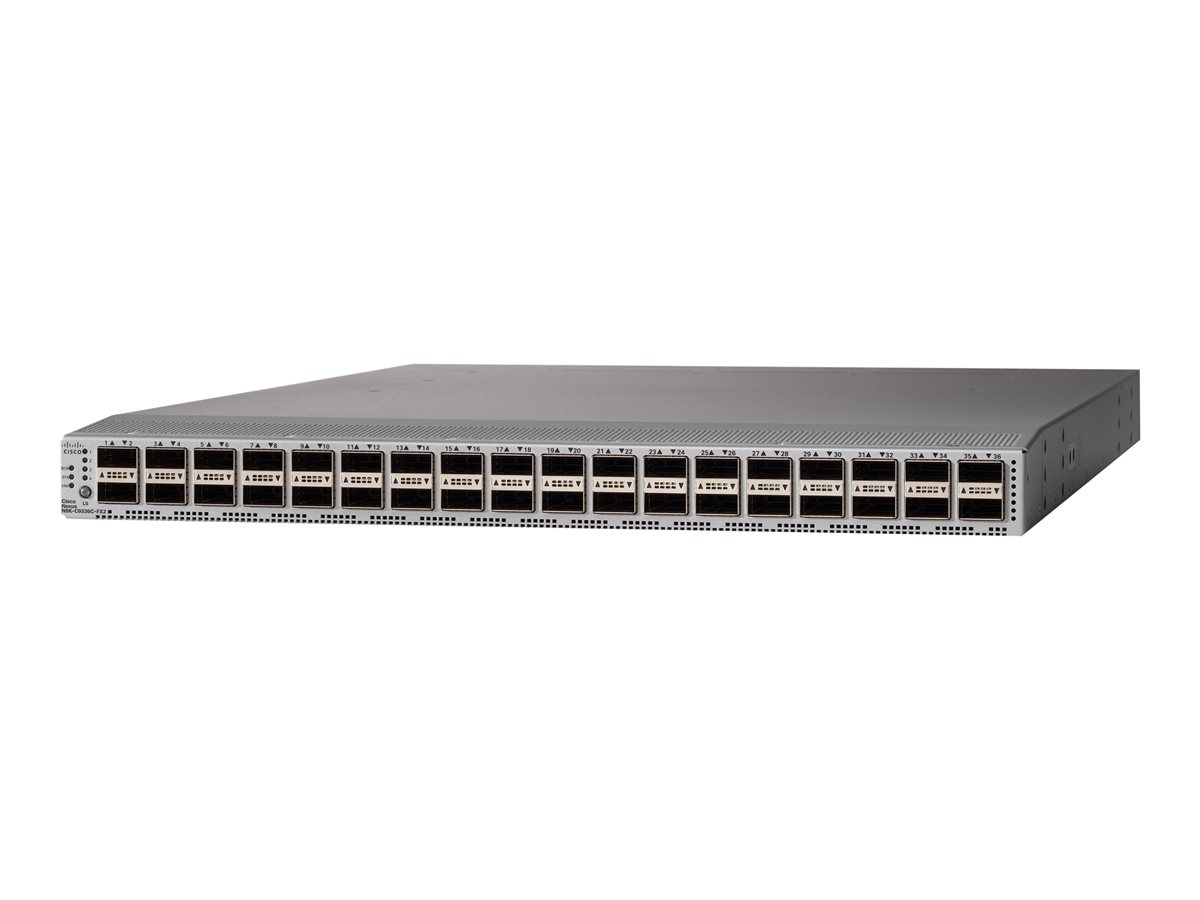

Cisco N9K-C9336C-FX2-E
Nexus 9300 Series, 36p 40/100G QSFP28
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 9300 Series, 36p 40/100G QSFP28
| Built-in Devices: | 128 GB SSD |
|---|---|
| Capacity: | Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ ACL entries (ingress): 5000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) instances: 16000 |
| Compliant Standards: | RoHS |
| Depth: | 62.3 cm |
| Device Type: | Switch - 36 ports - L3 - Managed |
| Enclosure Type: | Front and side to back rack-mountable 1U |
| Features: | Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, port exhaust, Virtual PortChannel (vPC) technology, MACsec support, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), E |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 36 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x management RJ-45 ¦ 1 x management SFP+ ¦ 1 x USB ¦ 1 x serial (RS-232) |
| MTBF: | 352,590 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Bandwidth: 7.2 Tbps ¦ Bandwidth: 2.8 bpps |
| Ports: | 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 |
| Power Device: | Internal power supply (not installed) |
| Power Redundancy: | Optional |
| RAM: | 24 GB |
| Routing Protocol: | OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 8.5 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
