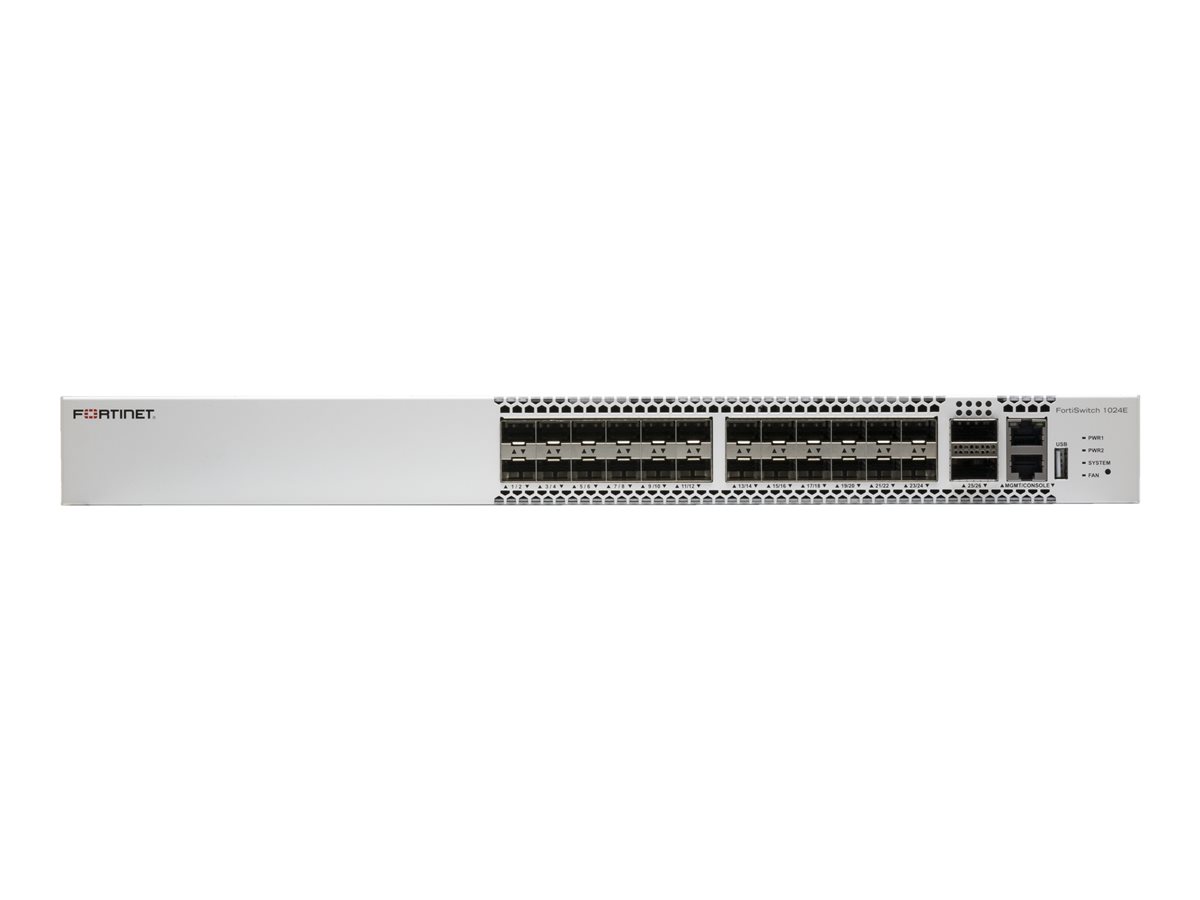

Fortinet FS-1024E

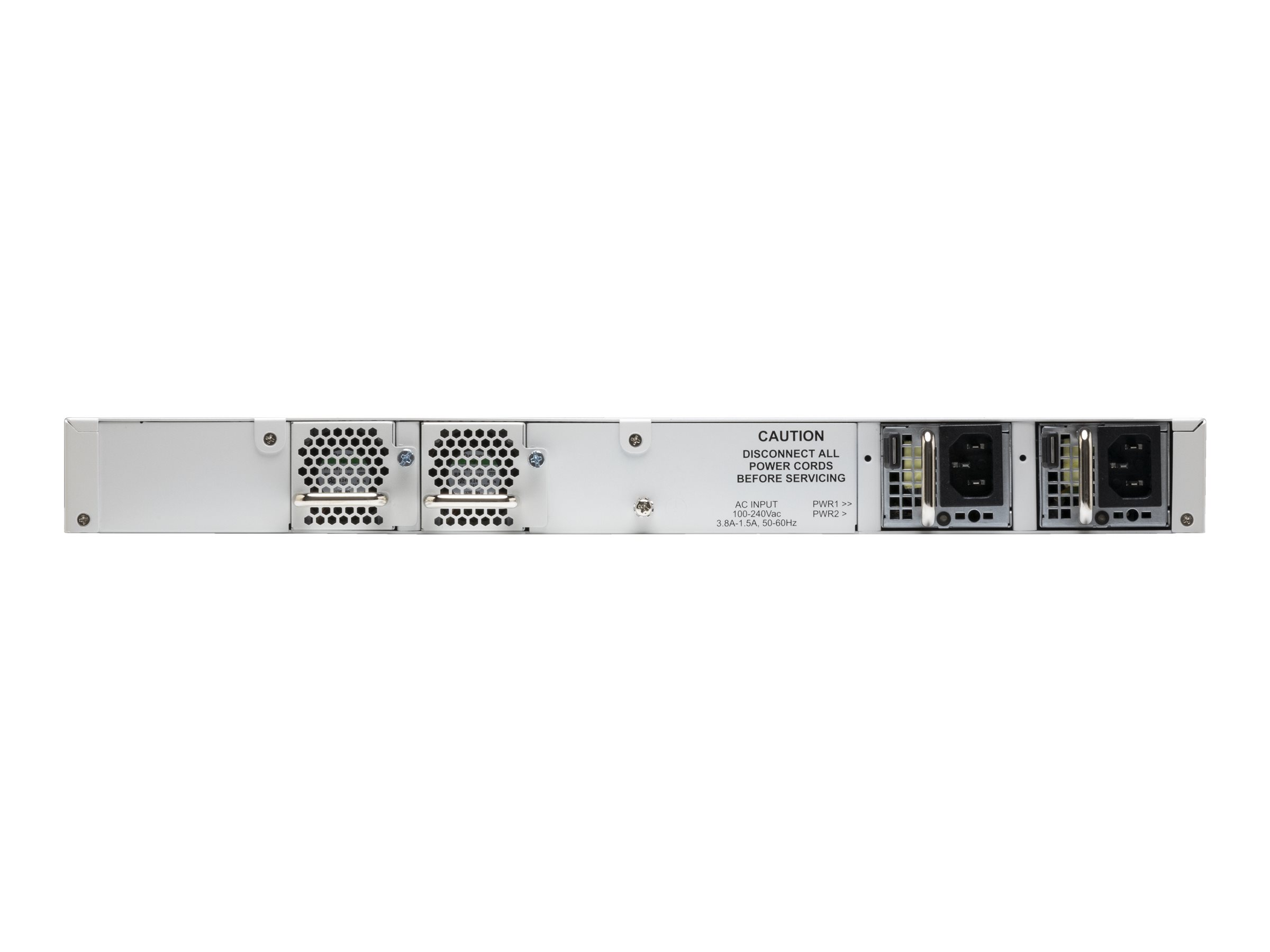

Layer 2/3 FortiGate switch controller compatible switch with 24 x GE/10GE SFP/SFP+ slots and 2 x 100GE QSFP28. Dual AC power supplies
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Layer 2/3 FortiGate switch controller compatible switch with 24 x GE/10GE SFP/SFP+ slots and 2 x 100GE QSFP28. Dual AC power supplies
| Authentication Method: | Secure Shell (SSH), RADIUS |
|---|---|
| Capacity: | ACL entries: 18000 ¦ Routing entries: 24000 ¦ Queues per port: 8 ¦ Packet buffer size: 8 MB ¦ Host entries: 24000 ¦ VLANs supported: 4000 ¦ Maximum aggregation groups: 24 ¦ Queues per port: 8 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qbb, UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
| Depth: | 46 cm |
| Device Type: | Switch - 24 ports - Managed - stackable |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Features: | Flow control, firewall protection, auto-negotiation, IGMP snooping, Syslog support, port mirroring, store and forward, High Availability, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Span |
| Height: | 4.35 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 24 x 1/10Gbit LAN SFP+ ¦ 2 x 100Gbit LAN QSFP28 ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console RJ-45 management |
| Jumbo Frame Support: | Yes |
| MAC Address Table Size: | 64K entries |
| MTBF: | 10 years |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 880 Gbps ¦ Packets per second: 1309 Mpps ¦ Latency: 1 µs |
| Ports: | 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28 |
| Power Consumption Operational: | 176 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| RAM: | 8 GB |
| Remote Management Protocol: | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Routing Protocol: | IS-IS, RIP-2, BGP, VRRP, OSPFv2, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD) |
| Subtype: | 100 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 6.58 kg |
| Width: | 43.85 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Layer 2/3 FortiGate switch controller compatible switch with 24 x GE/10GE SFP/SFP+ slots and 2 x 100GE QSFP28. Dual AC power supplies
| Authentication Method: | Secure Shell (SSH), RADIUS |
|---|---|
| Capacity: | ACL entries: 18000 ¦ Routing entries: 24000 ¦ Queues per port: 8 ¦ Packet buffer size: 8 MB ¦ Host entries: 24000 ¦ VLANs supported: 4000 ¦ Maximum aggregation groups: 24 ¦ Queues per port: 8 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qbb, UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
| Depth: | 46 cm |
| Device Type: | Switch - 24 ports - Managed - stackable |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Features: | Flow control, firewall protection, auto-negotiation, IGMP snooping, Syslog support, port mirroring, store and forward, High Availability, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Span |
| Height: | 4.35 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 24 x 1/10Gbit LAN SFP+ ¦ 2 x 100Gbit LAN QSFP28 ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console RJ-45 management |
| Jumbo Frame Support: | Yes |
| MAC Address Table Size: | 64K entries |
| MTBF: | 10 years |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 880 Gbps ¦ Packets per second: 1309 Mpps ¦ Latency: 1 µs |
| Ports: | 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28 |
| Power Consumption Operational: | 176 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| RAM: | 8 GB |
| Remote Management Protocol: | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Routing Protocol: | IS-IS, RIP-2, BGP, VRRP, OSPFv2, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD) |
| Subtype: | 100 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 6.58 kg |
| Width: | 43.85 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
