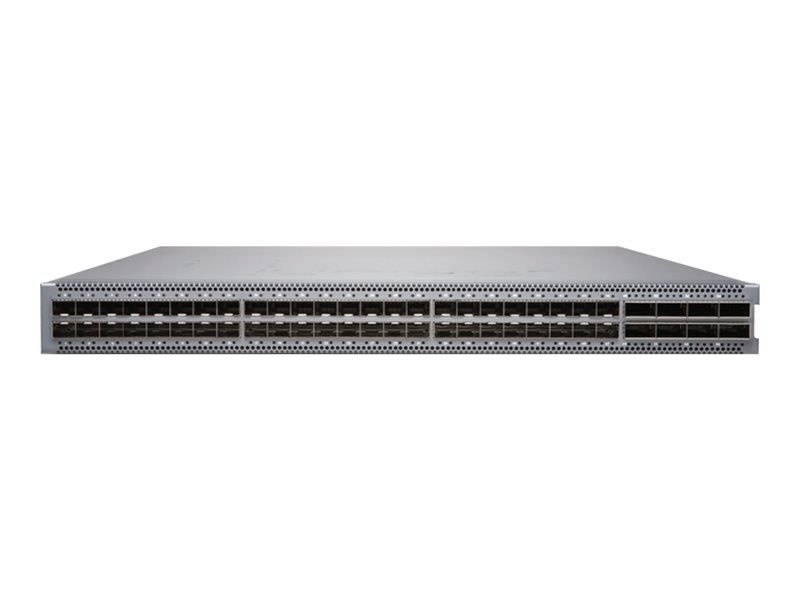

Juniper QFX5120-48Y-AFI-T
48x25G+8x100G 1U TAA AC PSU side intake and Port side exhaust
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
48x25G+8x100G 1U TAA AC PSU side intake and Port side exhaust
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Built-in Devices: | 64 GB SSD |
| Capacity: | Virtual interfaces (VLANs): 4093 ¦ VLAN Spanning Tree Protocol instances: 509 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ARP entries: 64000 ¦ Link aggregation groups: 80 ¦ Maximum member ports per LAG: 64 ¦ IPv4 prefixes (Unicast): 351000 ¦ IPv4 ho |
| Compliant Standards: | ICES-003, RoHS, FCC CFR47 Part 15, WEEE, RoHS, BSMI CNS 13438, REACH, EN 300 386 V1.6.1, EN 55024:2010, KN32, KN35, EN 55032:2012, IEC/EN 61000, EN 62368-1:2014, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2015, EN 300 386 V |
| Depth: | 52.02 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Back to front airflow rack-mountable 1U |
| Encryption Algorithm: | MD5 |
| Features: | ARP support, IGMP snooping, store and forward, IPv6 support, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Ex |
| Height: | 4.37 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Humidity Range Storage: | 0 - 95% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 48 x 1/10/25Gbit LAN SFP28 ¦ 8 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x USB 2.0 ¦ 1 x management (RS-232) ¦ 2 x management RJ-45 |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 288K entries |
| Manufacturer: | Juniper HPE |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 2 Tbps ¦ Switching capacity: 1.31 Bpps |
| Ports: | 48 x 1/10/25 Gigabit SFP28 + 8 x 40/100 Gigabit QSFP28 |
| Power Consumption Operational: | 260 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 650 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 |
| Processor: | 1 x Intel: 2.2 GHz |
| RAM: | 16 GB |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI, OVSDB |
| Routing Protocol: | OSPF, RIP, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, RSVP |
| Software Included: | Junos OS |
| Subtype: | 25 Gigabit Ethernet |
| TAA Compliant: | Yes |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Weight: | 10.75 kg |
| Width: | 44.09 cm |
| GPSR - economic actor: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
|---|---|
| GPSR - product manufacturer: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| GPSR - EU responsible person: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
48x25G+8x100G 1U TAA AC PSU side intake and Port side exhaust
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Built-in Devices: | 64 GB SSD |
| Capacity: | Virtual interfaces (VLANs): 4093 ¦ VLAN Spanning Tree Protocol instances: 509 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ARP entries: 64000 ¦ Link aggregation groups: 80 ¦ Maximum member ports per LAG: 64 ¦ IPv4 prefixes (Unicast): 351000 ¦ IPv4 ho |
| Compliant Standards: | ICES-003, RoHS, FCC CFR47 Part 15, WEEE, RoHS, BSMI CNS 13438, REACH, EN 300 386 V1.6.1, EN 55024:2010, KN32, KN35, EN 55032:2012, IEC/EN 61000, EN 62368-1:2014, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2015, EN 300 386 V |
| Depth: | 52.02 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Back to front airflow rack-mountable 1U |
| Encryption Algorithm: | MD5 |
| Features: | ARP support, IGMP snooping, store and forward, IPv6 support, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Ex |
| Height: | 4.37 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Humidity Range Storage: | 0 - 95% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 48 x 1/10/25Gbit LAN SFP28 ¦ 8 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x USB 2.0 ¦ 1 x management (RS-232) ¦ 2 x management RJ-45 |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 288K entries |
| Manufacturer: | Juniper HPE |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 2 Tbps ¦ Switching capacity: 1.31 Bpps |
| Ports: | 48 x 1/10/25 Gigabit SFP28 + 8 x 40/100 Gigabit QSFP28 |
| Power Consumption Operational: | 260 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 650 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 |
| Processor: | 1 x Intel: 2.2 GHz |
| RAM: | 16 GB |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI, OVSDB |
| Routing Protocol: | OSPF, RIP, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, RSVP |
| Software Included: | Junos OS |
| Subtype: | 25 Gigabit Ethernet |
| TAA Compliant: | Yes |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Weight: | 10.75 kg |
| Width: | 44.09 cm |
| GPSR - economic actor: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
|---|---|
| GPSR - product manufacturer: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| GPSR - EU responsible person: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
