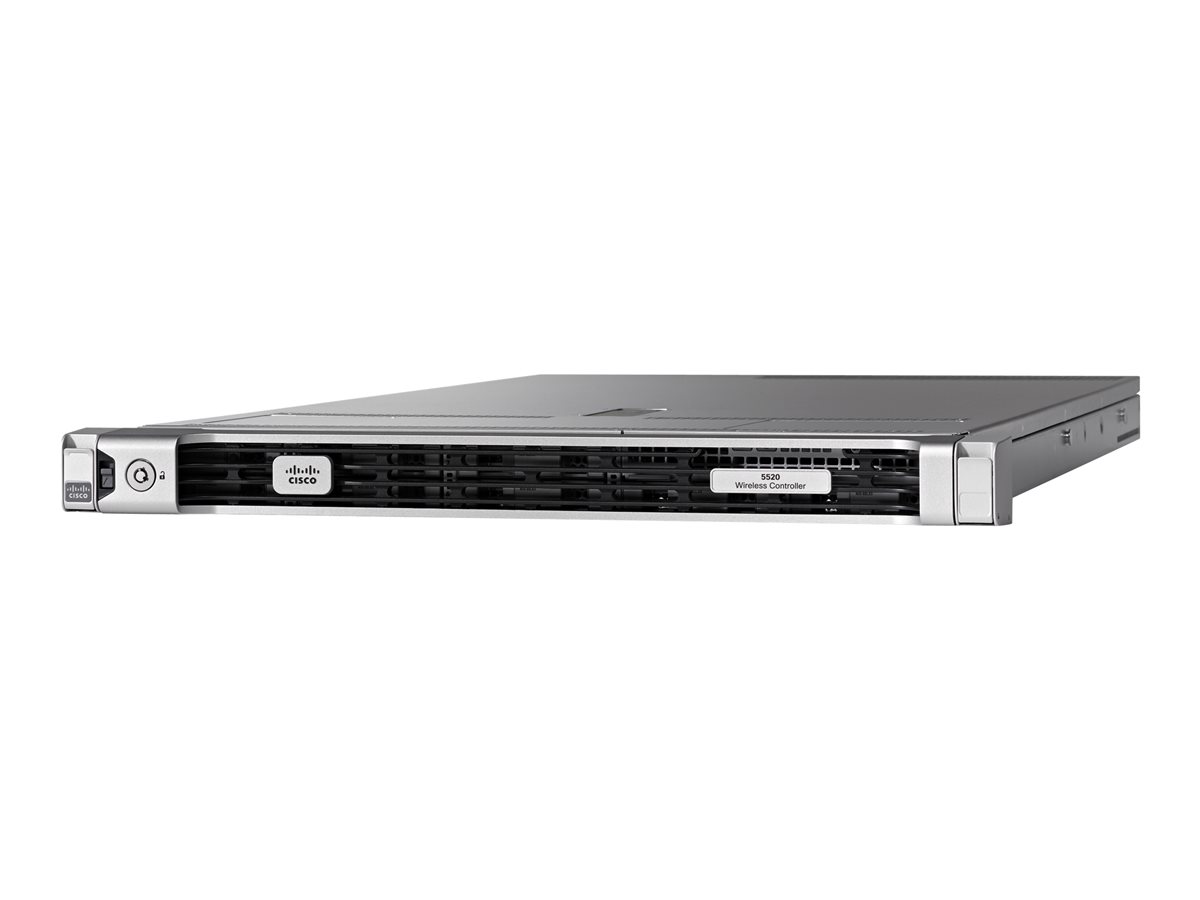

Cisco AIR-CT5520-K9
Cisco 5520 Wireless Controller w/rack mounting kit
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco 5520 Wireless Controller w/rack mounting kit
| Authentication Method: | RADIUS, X.509 certificates, Radio Service Set ID (SSID), TACACS, Extensible Authentication Protocol (EAP) |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 |
| Compliant Standards: | BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, UL 6500 Second Edition, ICES-003 Class A, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.1ae, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 80 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 10 Gigabit Ethernet |
| Depth: | 78.7 cm |
| Device Type: | Network management device |
| Encryption Algorithm: | DES, Triple DES, RSA, RC4, MD5, 128-bit WEP, 40-bit WEP, IKE, SSL, SHA-1, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP, AES-CCM, AES-CBC, TLS 1.1 |
| Expansion Bays: | 10 hot-swap - 2.5" |
| Features: | VLAN support, Syslog support, IPv6 support, SNTP support, Mesh networking, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, CleanAir technology, CAPWAP support, rogue access point detection, Cisco VideoStream technology, Cisco FlexConnec |
| Form Factor: | Rack-mountable |
| Height: | 4.32 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Rack mount kit |
| Installed Qty: | 1 |
| Interfaces: | 2 x 10Gb Ethernet - SFP+ ¦ 3 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x keyboard / video / mouse (KVM) ¦ 1 x VGA - HD-15 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 5 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour |
| Performance: | Throughput: 20 Gbps |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 770 Watt |
| Power Redundancy: | Yes |
| Remote Management Protocol: | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Routing Protocol: | CIDR |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 13.6 kg |
| Width: | 48.2 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
