HPE BK835A

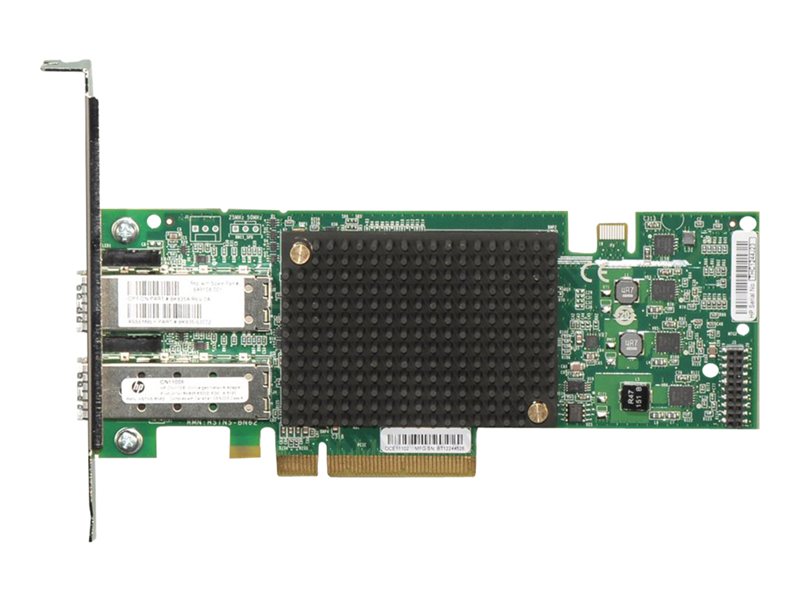

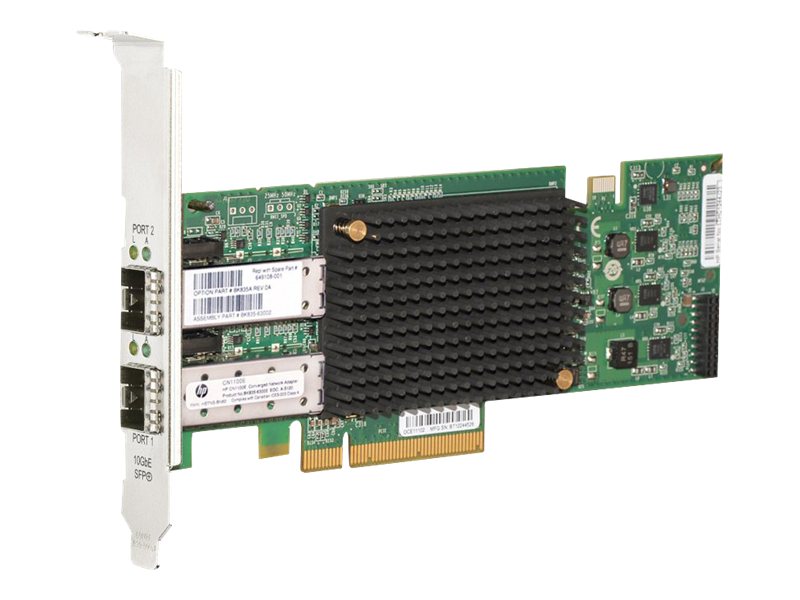

HP CN1100E 2P Converged Network Adapter
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HP CN1100E 2P Converged Network Adapter
| Compatible Slots: | 1 x PCI Express 2.0 x8 |
|---|---|
| Compliant Standards: | C-Tick, DHHS, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, EN 60950-1, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, FCC Part 15 A, EN 60825-1, BSMI Class A, KCC Class A |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), 10Gb Converged Enhanced Ethernet (CEE) |
| Data Transfer Rate: | 10 Gbps |
| Designed For: | HPE ProLiant DL160 G6, DL160 G6 Special Server, DL160 Gen8, DL160 Gen8 Entry, DL160 Gen8 Performance, DL165 G7, DL165 G7 Base, DL165 G7 Entry, DL165 G7 Performance, DL165 G7 Special Server, DL180 G6, DL180 G6 Special Server, DL320 G6, DL320 G6 Entry, DL32 |
| Device Type: | Network adapter |
| Features: | Fault tolerance, load balancing, IPv6 support, IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), Jumbo Frames support, TCP Chimney Offload support, IPv4 support, teaming support, Large Receive Offload (LRO), Receive Side Scaling (RSS), TCP |
| Fibre Channel: | FC-GS-4, FC-Tape, FC-PI-2, FC-BB-5, FCP-3 |
| Form Factor: | Plug-in card - low profile |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Low-profile bracket, full-height bracket |
| Interface (Bus) Type: | PCI Express 2.0 x8 |
| Interfaces: | 2 x 10Gb Ethernet - SFP+ |
| Manufacturer: | HPE Aruba |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | iSCSI |
| OS Required: | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2 |
| PCI Specification Revision: | PCIe 2.0 |
| Ports: | 10Gb Ethernet x 2 |
| Version: | original |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| Warnings: | Warnings Adapter PCI International.pdf |
| Safety instructions: | Safety instructions Adapter PCI International.pdf |
HP CN1100E 2P Converged Network Adapter
| Compatible Slots: | 1 x PCI Express 2.0 x8 |
|---|---|
| Compliant Standards: | C-Tick, DHHS, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, EN 60950-1, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, FCC Part 15 A, EN 60825-1, BSMI Class A, KCC Class A |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), 10Gb Converged Enhanced Ethernet (CEE) |
| Data Transfer Rate: | 10 Gbps |
| Designed For: | HPE ProLiant DL160 G6, DL160 G6 Special Server, DL160 Gen8, DL160 Gen8 Entry, DL160 Gen8 Performance, DL165 G7, DL165 G7 Base, DL165 G7 Entry, DL165 G7 Performance, DL165 G7 Special Server, DL180 G6, DL180 G6 Special Server, DL320 G6, DL320 G6 Entry, DL32 |
| Device Type: | Network adapter |
| Features: | Fault tolerance, load balancing, IPv6 support, IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), Jumbo Frames support, TCP Chimney Offload support, IPv4 support, teaming support, Large Receive Offload (LRO), Receive Side Scaling (RSS), TCP |
| Fibre Channel: | FC-GS-4, FC-Tape, FC-PI-2, FC-BB-5, FCP-3 |
| Form Factor: | Plug-in card - low profile |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Low-profile bracket, full-height bracket |
| Interface (Bus) Type: | PCI Express 2.0 x8 |
| Interfaces: | 2 x 10Gb Ethernet - SFP+ |
| Manufacturer: | HPE Aruba |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | iSCSI |
| OS Required: | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2 |
| PCI Specification Revision: | PCIe 2.0 |
| Ports: | 10Gb Ethernet x 2 |
| Version: | original |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden@hpe.com |
