Cisco CISCO3925-SEC/K9
Cisco 3925 Security Bundle w/SEC license PAK
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco 3925 Security Bundle w/SEC license PAK
| Capacity: | Cisco Unified Communications Manager Express sessions: 250 ¦ Cisco Unified SRST sessions: 730 |
|---|---|
| Compliant Standards: | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22. |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 43.8 cm |
| Device Type: | Router |
| Enclosure Type: | Desktop - modular - 3U |
| Encryption Algorithm: | SSL |
| Expansion Slots: | 4 (total) / 4 (free) x EHWIC ¦ 4 (total) / 4 (free) x PVDM ¦ 2 (total) / 1 (free) x CompactFlash ¦ 2 (total) / 2 (free) x service module (SM) ¦ 1 (total) / 1 (free) x expansion slot |
| Features: | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multip |
| Flash Memory: | 256 MB (installed) / 8 GB (max) |
| Height: | 13.3 cm |
| Humidity Range Operating: | 5 - 85% |
| Interfaces: | WAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial: 1 x auxiliary - RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ 2 x SFP (mini-GBIC) |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, PPPoE, L2TPv3 |
| OS Provided: | Cisco IOS Security |

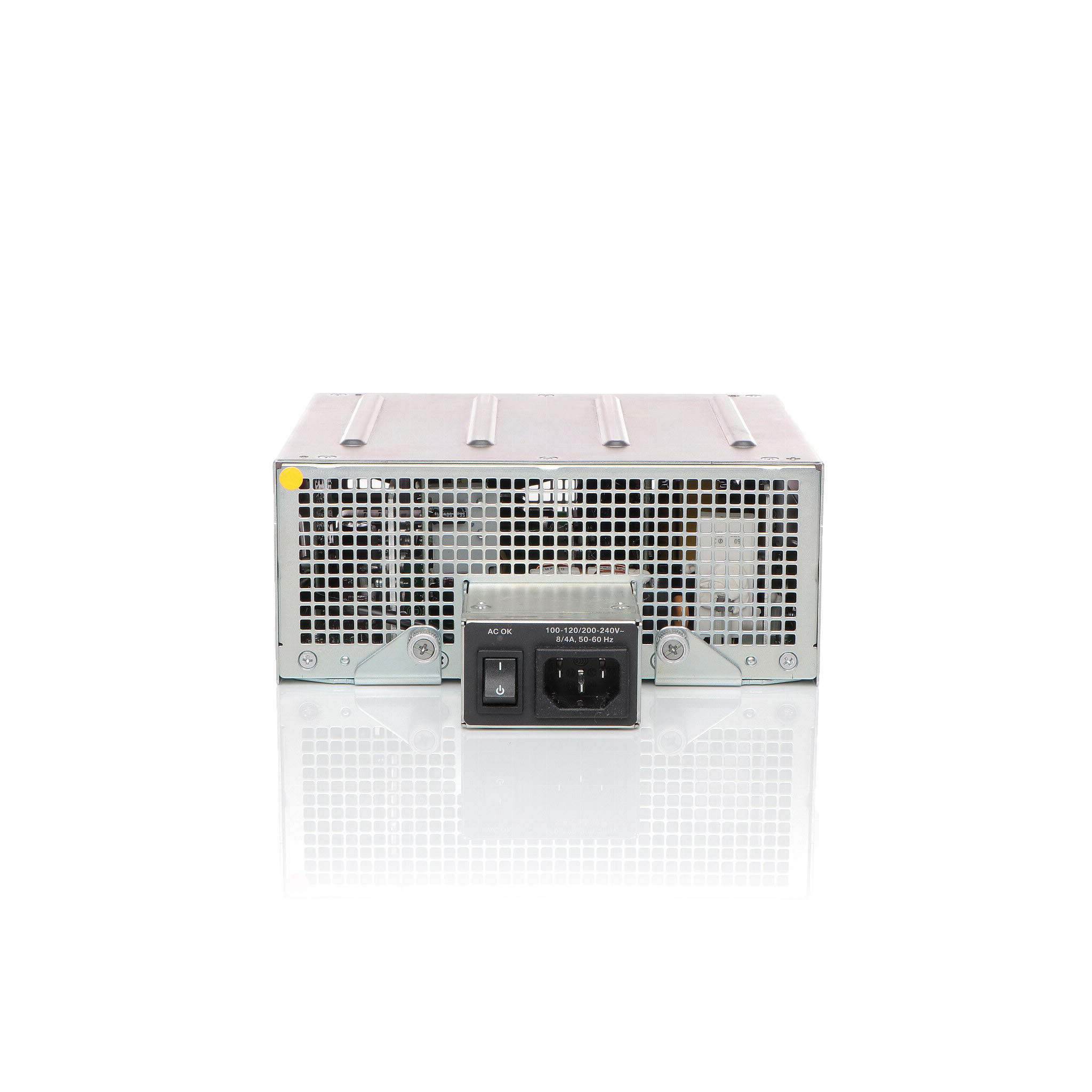

| Power Device: | Internal power supply |
| RAM: | 1 GB (installed) / 2 GB (max) |
| Remote Management Protocol: | SNMP, RMON |
| Routing Protocol: | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Status Indicators: | Power, link/activity |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 17.7 kg |
| Width: | 47.6 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
Cisco 3925 Security Bundle w/SEC license PAK
| Capacity: | Cisco Unified Communications Manager Express sessions: 250 ¦ Cisco Unified SRST sessions: 730 |
|---|---|
| Compliant Standards: | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22. |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 43.8 cm |
| Device Type: | Router |
| Enclosure Type: | Desktop - modular - 3U |
| Encryption Algorithm: | SSL |
| Expansion Slots: | 4 (total) / 4 (free) x EHWIC ¦ 4 (total) / 4 (free) x PVDM ¦ 2 (total) / 1 (free) x CompactFlash ¦ 2 (total) / 2 (free) x service module (SM) ¦ 1 (total) / 1 (free) x expansion slot |
| Features: | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multip |
| Flash Memory: | 256 MB (installed) / 8 GB (max) |
| Height: | 13.3 cm |
| Humidity Range Operating: | 5 - 85% |
| Interfaces: | WAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial: 1 x auxiliary - RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ 2 x SFP (mini-GBIC) |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, PPPoE, L2TPv3 |
| OS Provided: | Cisco IOS Security |
| Power Device: | Internal power supply |
| RAM: | 1 GB (installed) / 2 GB (max) |
| Remote Management Protocol: | SNMP, RMON |
| Routing Protocol: | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Status Indicators: | Power, link/activity |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 17.7 kg |
| Width: | 47.6 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
