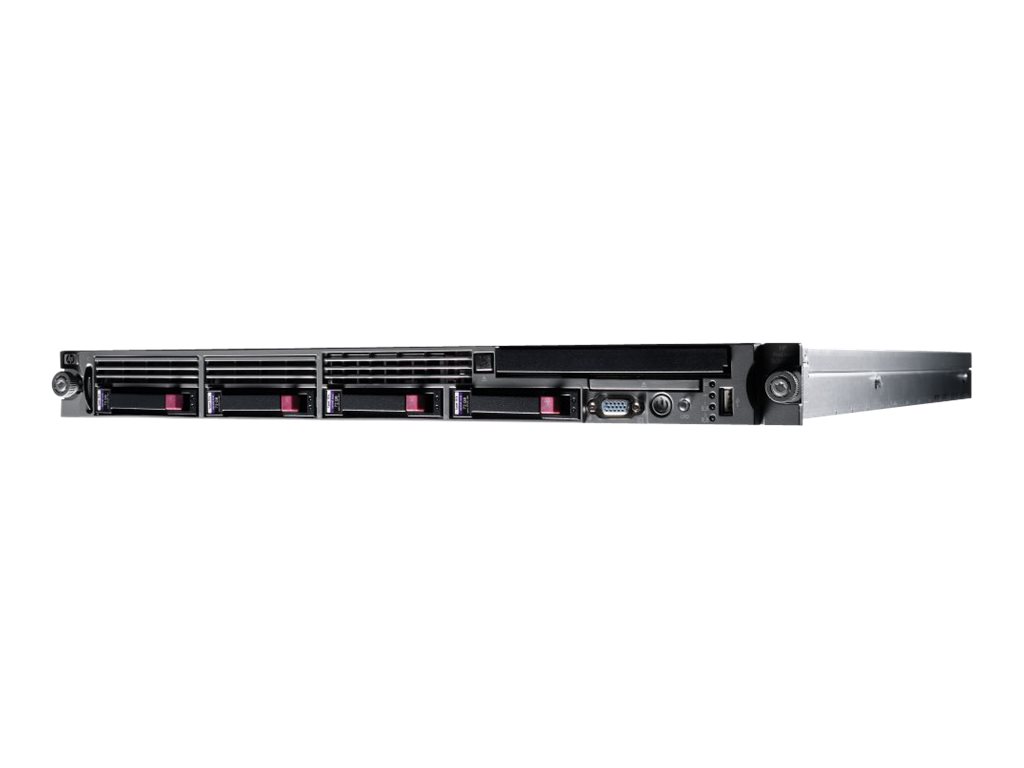

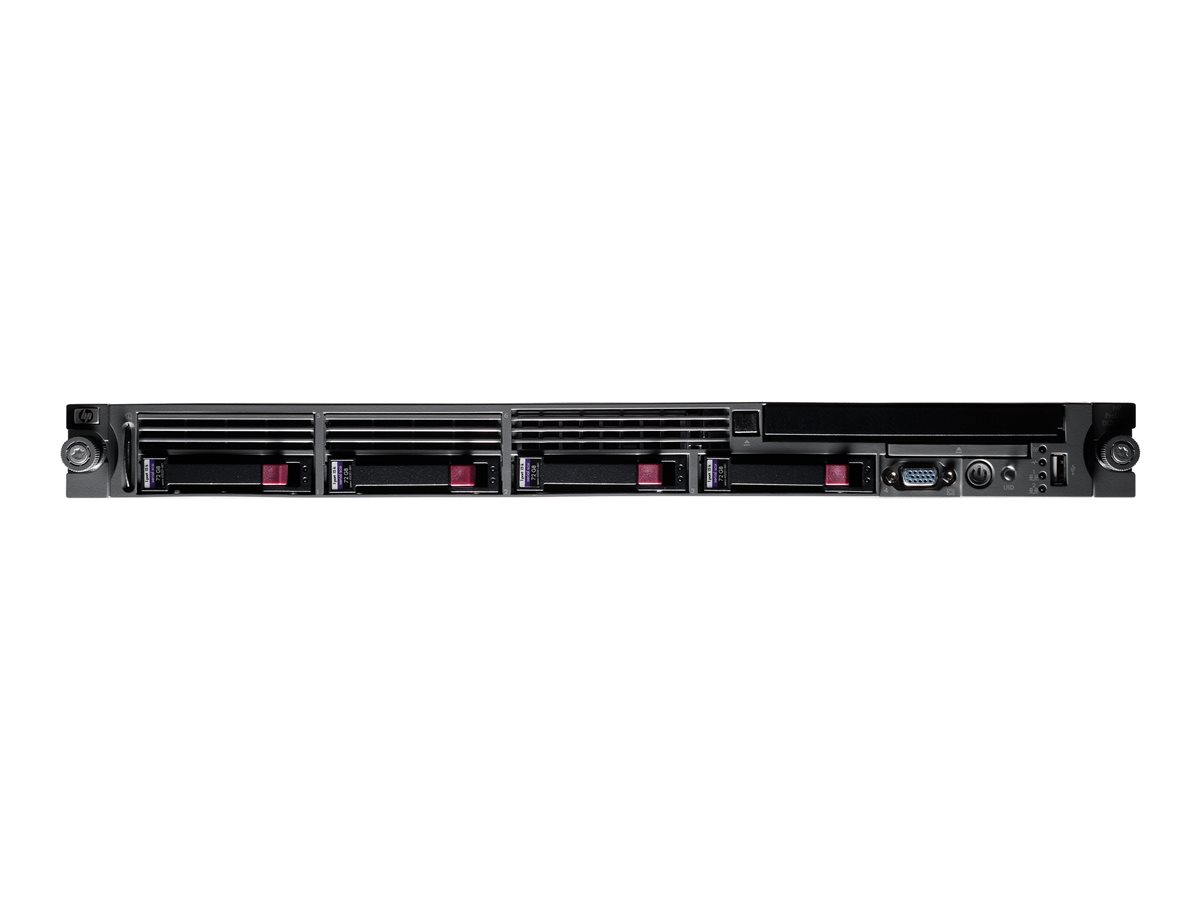

Aruba 457924-001
DL360R05 E5430 1X 2.66GHZ 12MB 2GB
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
DL360R05 E5430 1X 2.66GHZ 12MB 2GB
| 64-<a class="lexicon-tooltip cbax-lexicon-link" data-bs-toggle="tooltip" title="Bit stands for "binary digit" and is the smallest binary information unit in the computer environment." data-bs-placement="top" data-bs-html="true" data-bs-template="<div class='tooltip' role='tooltip'><div class='arrow'></div><div class='tooltip-inner cbax-lexicon-tooltip-inner'></div></div>">bit</a> Computing: | Yes |
|---|---|
| Bays: | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 4 (total) / 4 (free) x hot-swap 2.5" SFF |
| Buffer Size: | 256 MB |
| CPU: | Intel Xeon E5430 |
| CPU Qty: | 1 |
| CPU Socket: | LGA771 Socket |
| CPU Upgradability: | Upgradable |
| Cache Per Processor: | 12 MB (2 x 6MB (6MB per core pair) |
| Chipset Type: | Intel 5000P |
| Clock Speed: | 2.66 GHz |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Compliant Standards: | ACPI 1.0b |
| Configuration Features: | 2 x 1 GB |
| Controller Interface Type: | IDE/ATA |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 70.5 cm |
| Device Type: | Power supply - hot-plug |
| Effective Memory Speed: | 667 MHz |
| Ethernet Controller: | HP NC373i |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Features: | Administrator password, power-on password, keyboard password, disk configuration lock, diskette I/O control, serial port I/O control, quick lock |
| Form Factor: | FB-DIMM 240-pin |
| Front Accessible Bays Qty: | 1 |
| Front Side Bus: | 1333 MHz |
| Graphics Processor: | ATI ES1000 |
| Height: | 4.3 cm |
| Hot-Swap Bays Qty: | 4 |
| Humidity Range Operating: | 10 - 90% |
| Installed Qty: | 1 |
| Installed Size: | L2 Cache - 12 MB |
| Interface (Bus) Type: | PCI Express x4 |
| Interfaces: | 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 1 x VGA ¦ 4 x USB 2.0 (1 front, 2 rear, 1 internal) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO |
| Localisation: | Region: United States |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Memory Specification Compliance: | PC2-5300 |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| Number of Cores: | Quad-Core |
| OS Certified: | Novell NetWare, Microsoft Windows 2000 Server, Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, SunSoft Solaris 10, UnitedLinux |
| Power Provided: | 700 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Product Form Factor: | Rack-mountable - 1U |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Rated Memory Speed: | 667 MHz |
| Recommended Use: | Small business, corporate business |
| Remote Management Controller: | Integrated Lights-Out 2 Standard |
| Server Scalability: | 2-way |
| Slots: | 1 (total) / 1 (free) x PCIe x8 - low-profile ¦ 1 (total) / 1 (free) x PCIe x8 - full-length, full-height ¦ 8 (total) / 6 (free) x FB-DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU |
| Software: | Drivers & Utilities, HP Management Agents, HP Systems Insight Manager (HP SIM), SmartStart |
| Storage Controller Name: | Smart Array P400i |
| Technology: | DDR2 SDRAM - Advanced ECC |
| Type: | Integrated |
| Upgrade Rule: | 2 modules at a time |
| Version: | original |
| Video Interfaces: | VGA |
| Video Memory: | 32 MB |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 12.5 kg |
| Width: | 42.6 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
