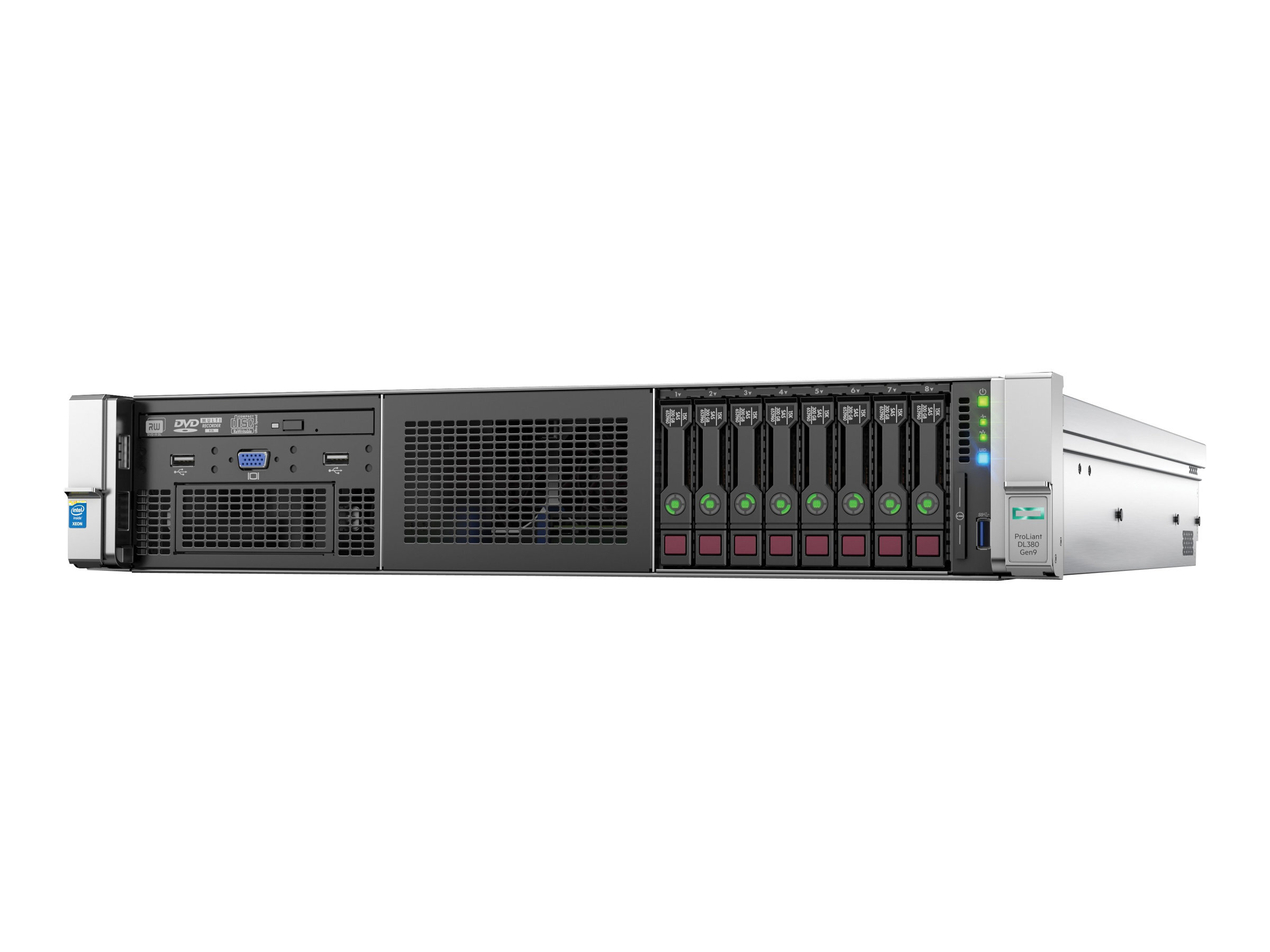

Aruba 752689-B21
HP ProLiant DL380 Gen 9 E5-2650v3, 2 P, 32 GB-R, 2 x 10 Gbit Performance-Server
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HP ProLiant DL380 Gen 9 E5-2650v3, 2 P, 32 GB-R, 2 x 10 Gbit Performance-Server
| 80 PLUS Certification: | 80 PLUS Platinum |
|---|---|
| Bays: | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Buffer Size: | 2 GB |
| CPU: | Intel Xeon E5-2650V3 |
| CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| Cache Per Processor: | 25 MB |
| Channel Qty: | 8 |
| Clock Speed: | 2.3 GHz |
| Compliant Standards: | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Configuration Features: | 2 x 16 GB |
| Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 67.94 cm |
| Device Type: | Power supply - hot-plug |
| Effective Memory Speed: | 2133 MHz |
| Efficiency: | 94% |
| Embedded Security: | Trusted Platform Module (TPM 1.2) Security Chip |
| Ethernet Controller: | HP 331i |
| Ethernet Ports: | 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet |
| Features: | Administrator password, power-on password, serial port I/O control, UEFI BIOS |
| Form Factor: | DIMM 288-pin |
| Graphics Processor: | Matrox G200eH2 |
| Height: | 8.73 cm |
| Hot-Swap Bays Qty: | 8 |
| Humidity Range Operating: | 8 - 90% (non-condensing) |
| Included Accessories: | Cable management arm, HP Easy Install Rails |
| Installed Qty: | 2 |
| Installed Size: | L3 Cache - 50 MB |
| Interfaces: | 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HPE iLO - RJ-45 ¦ 2 x VGA (1 front, 1 rear) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 2 x LAN (10Gigabit Ethernet) ¦ 2 x USB 2.0 (2 in front) |
| Localisation: | Region: Worldwide (excluding China, Japan) |
| Manufacturer: | HPE Aruba |
| Max CPU Qty: | 2 |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Max Turbo Speed: | 3 GHz |
| Min Operating Temperature: | 10 °C |
| Monitor Type: | None. |
| Number of Cores: | 10-core |
| OS Certified: | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer, Canonical Ubuntu |
| Power Provided: | 800 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Product Form Factor: | Rack-mountable - 2U |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| RAM Supported: | PC4-17000 - 384 GB registered ¦ PC4-17000 - 1.5 TB Load-Reduced |
| Recommended Use: | Small business, corporate business |
| Remote Management Controller: | Integrated Lights-Out 4 |
| Server Scalability: | 2-way |
| Slots: | 2 (total) / 0 (free) x CPU ¦ 24 (total) / 22 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - half-length, full-height (x8 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Sound Emission: | 25 dBA |
| Storage Controller Name: | Smart Array P440ar with 2GB FBWC |
| Technology: | DDR4 SDRAM - Advanced ECC |
| Type: | Integrated |
| Version: | original |
| Video Interfaces: | VGA |
| Video Memory: | 16 MB |
| Voltage Required: | AC 120/230 V |
| Weight: | 14.759 kg |
| Width: | 44.55 cm |
| GPSR - economic actor: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
|---|---|
| GPSR - product manufacturer: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| GPSR - EU responsible person: | Hewlett-Packard GmbH, Deutschland, Herrenberger Str. 140, Böblingen, 71034, enterprise.kunden @ hpe.com |
| Warnings: | Warnings Servers International.pdf |
| Safety instructions: | Safety instructions Servers International.pdf |
