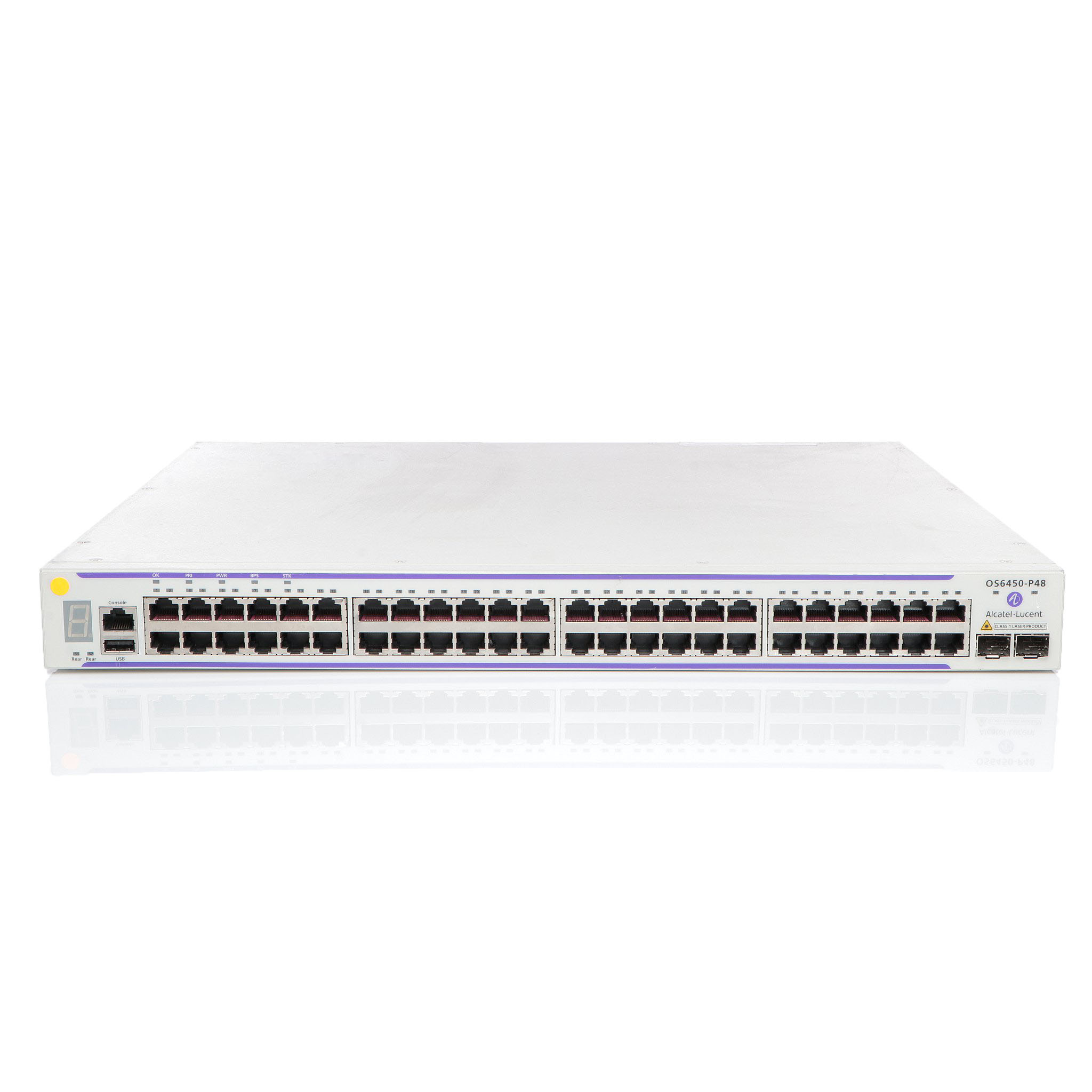

Gigabit Ethernet chassis in a 1U form factor with 48 PoE 10/100/1000 BaseT ports. 2 fixed SFP+ (1G/10G) ports and one expansion slot for optional stacking or uplink modules. 10G uplink speed enable by default
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Extensible Authentication Protocol (EAP) |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4000 ¦ ACL entries: 2048 ¦ RIP routes: 256 ¦ Static routes: 256 |
| Compliant Standards: | EN 61000-3-2, EN55022, NOM, VCCI Class A ITE, EN 61000-3-3, EN55024, UL 60950, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, IEC 60950-1, EN 60950-1, UL-AR, EN 60825-1, HMAC, AS/NZS 3548 Class A, C, IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802 |
| Depth: | 39.1 cm |
| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | 1U |
| Encryption Algorithm: | MD5, PKI |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Features: | Flow control, auto-sensing per device, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcas |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Humidity Range Storage: | 5 - 95% |
| Interfaces: | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE+ ¦ 2 x SFP+ ¦ 1 x USB 2.0 Type A ¦ 1 x console RJ-45 management |
| Localisation: | Europe |
| MAC Address Table Size: | 16000 entries |
| MTBF: | 135,087 hours |
| Manufacturer: | Alcatel-Lucent Nokia |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 75 °C |
| Max Units In A Stack: | 8 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Port-to-port latency: 4 µs |
| Ports: | 48 x 10/100/1000 (PoE+) + 2 x SFP+ |
| Power Consumption Operational: | 66.54 Watt |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE+ |
| Power Redundancy: | Optional |
| Remote Management Protocol: | SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI |
| Routing Protocol: | RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Status Indicators: | Port transmission speed, power, system, PoE, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Weight: | 6.8 kg |
| Width: | 44 cm |
| GPSR - economic actor: | Alcatel-Lucent, Deutschland, Stammheimer Str. 10 Haus 6, 3. OG, Kornwestheim, 70806, enterprise.solutions@al-enterprise.com |
|---|---|
| GPSR - product manufacturer: | Alcatel-Lucent, Deutschland, Stammheimer Str. 10 Haus 6, 3. OG, Kornwestheim, 70806, enterprise.solutions@al-enterprise.com |
| GPSR - EU responsible person: | Alcatel-Lucent, Deutschland, Stammheimer Str. 10 Haus 6, 3. OG, Kornwestheim, 70806, enterprise.solutions@al-enterprise.com |
| EU Data-Act-Url: | https://www.al-enterprise.com/de-de/rechtliches/compliance-regeln |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
